2. Installation
86-81700-00EN A02 - Page 12

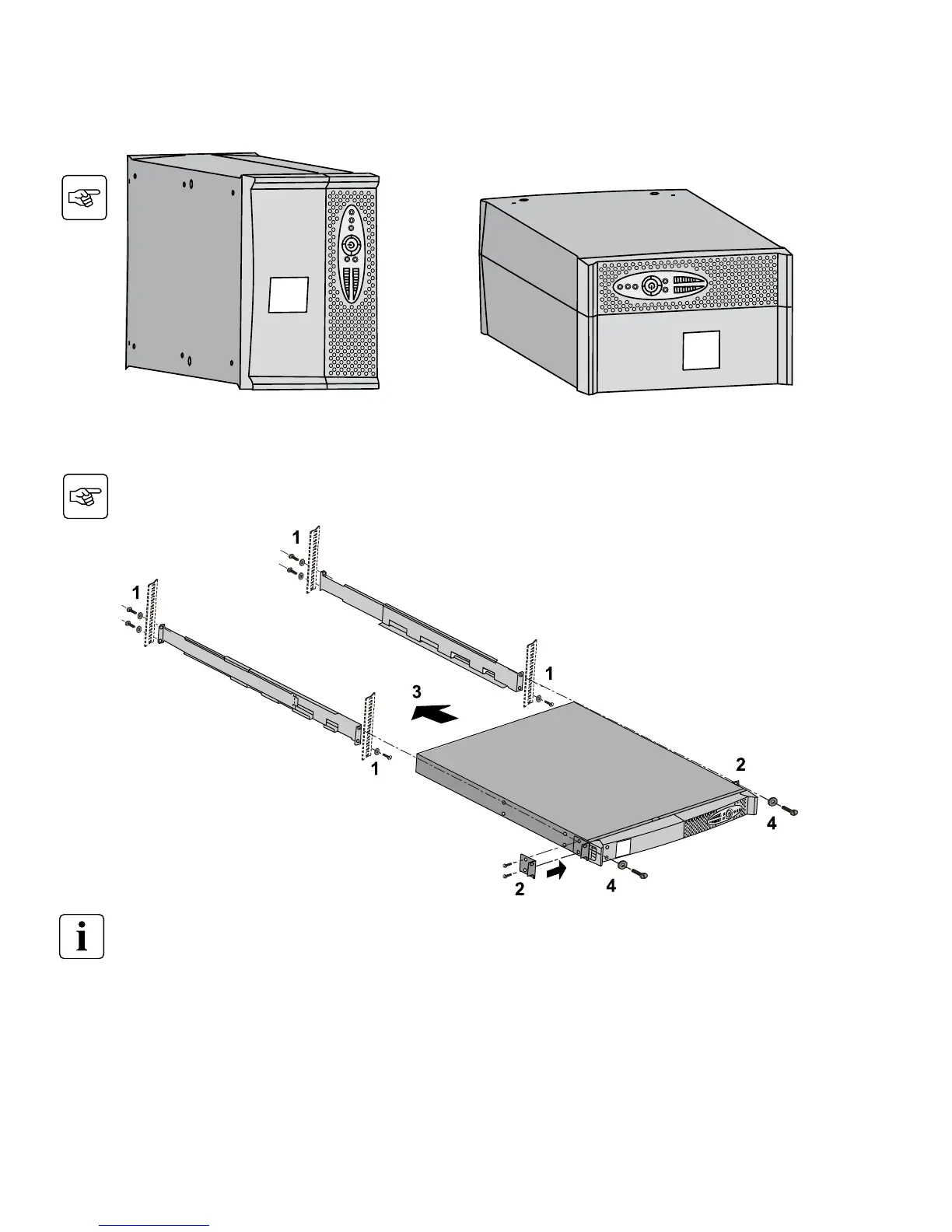

2.2 Installation of Tower Model
2.3
Installation of Rack Model
Follow steps 1 to 4 for module mounting on the rails.
The rails and necessary hardware are supplied by EATON.
