Eaton GridAdvisor Series II User Manual

Table10. Function codes (continued)
Parameter
Unit of
Measure
Security Level
Default Value
Key Entry Limit
To Read To Write To Reset Low High
831 Serial Tx
Disable Delay
XXXX mSec
MilliSec View Modify NA 5 0 3000
•For Com 2, when the control is set for transmit control handshaking, the user may require
a delay between the time when the data transmission is terminated and the transmit enable
signal is disabled.
•See Figure 20.

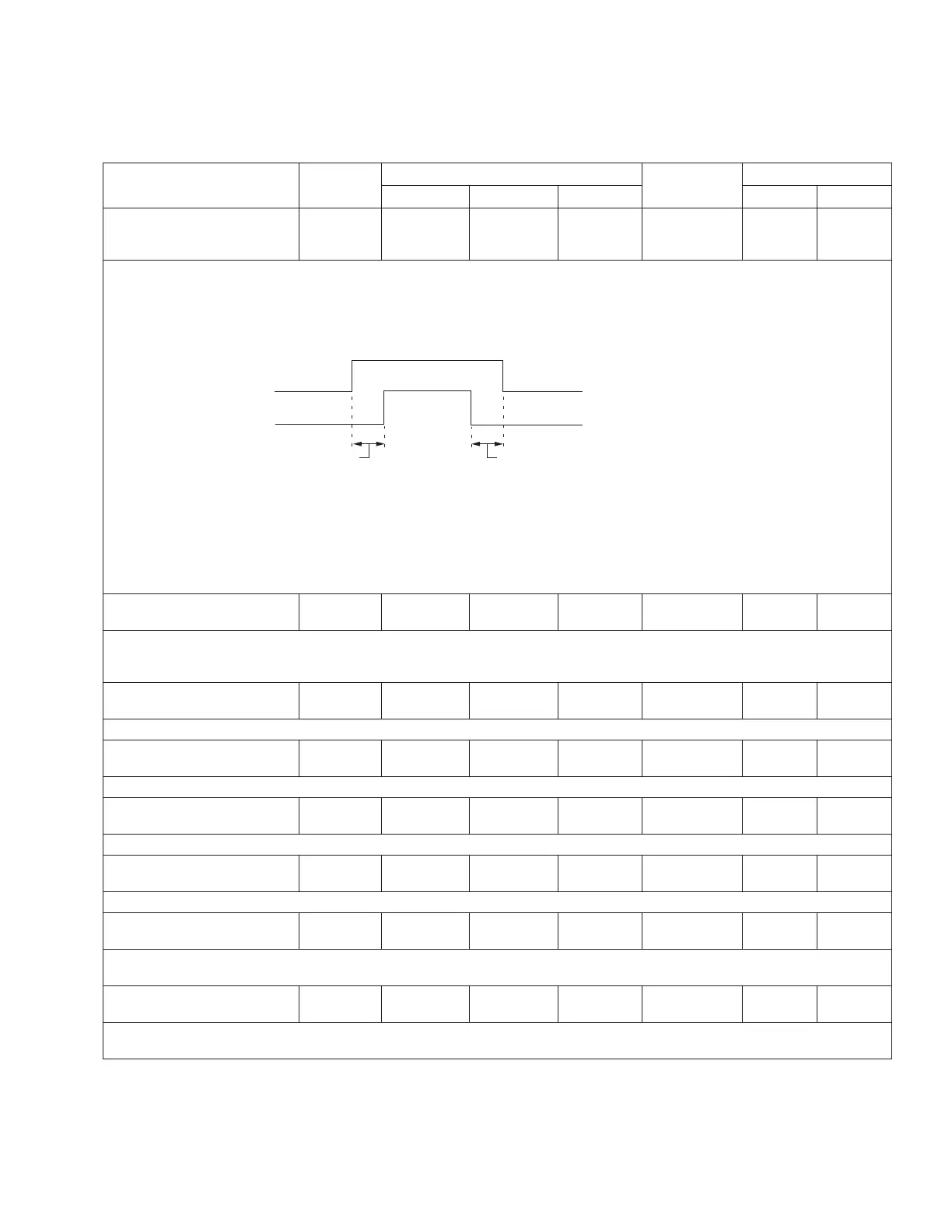

Figure 20. Data transmission from the CL-7 control to the communication system
for handshaking applications
Serial
Tx
Enabled
Delay
Transmit
Disabled
Transmit
Enabled
Data
Message
Serial
Tx
Disabled
Delay
831 Serial Echo Mode
Disabled
--- View Modify NA Disabled NA NA
•When serial communications is active, this parameter will enable or disable the echo mode
for Com 2.
•Available options are: Disabled; Enabled.
832 IP Address
XXX.XXX.XXX.XXX
--- View Modify NA NA NA NA
•The Com 2 IP Address setting.
832 Subnet Mask
XXX.XXX.XXX.XXX
--- View Modify NA NA NA NA
•The Com 2 Subnet Mask setting.
832 Gateway
XXX.XXX.XXX.XXX
--- View Modify NA NA NA NA
•The Com 2 Gateway setting.
832 MAC Address
XX:XX:XX:XX:XX:XX
--- View NA NA NA NA NA
•The Com 2 MAC Address setting.
840 DNP RBE Master
XXXXX
--- View Modify NA 1234 0 65519
•This is the Com 2 setting for the DNP3 device number to be used as the destination for
any unsolicited reports generated by DNP3 events.
840 DNP IED Slave
XXXXX
--- View Modify NA 1 0 65519
•This is the Com 2 setting for the DNP3 device number to be assigned to the connected CL-7
control.
111
INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225003EN April 2018
CL-7 Voltage Regulator Control
