HMi VU Series Instruction Leaflet

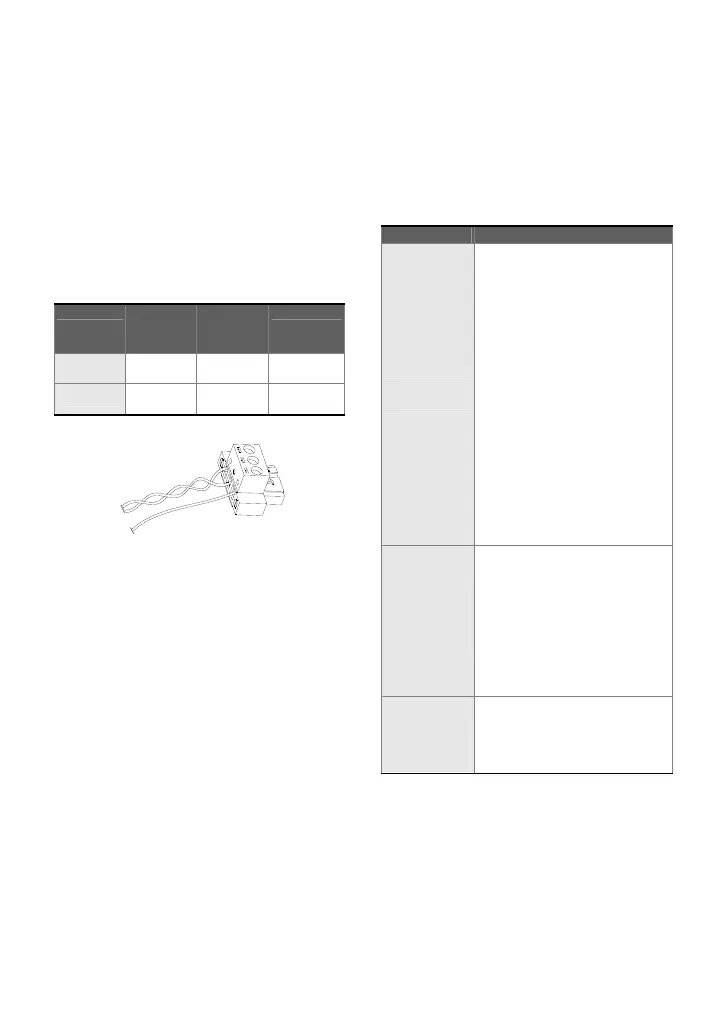

Wiring Basic Inspection
•Please observe the following wiring notes.

Use shielded twisted-pair cables for
wiring.
Recommended wiring:
Type
Wire
Gauge
(AWG)
Stripped
length
Torque
Solid 28 ~ 12 7 ~ 8 mm
5 kg-cm
(4.3 lb-in)
Stranded 30 ~ 12 7 ~ 8 mm
5 kg-cm
(4.3 lb-in)
Power supply connector:
Item Content
General
Inspection
 Periodically inspect the
screws of the connection
between the operator
interface and device.
Tighten screws as
necessary as they may
loosen due to vibration
and varying
temperatures.
 Ensure that oil, water,
metallic particles or any
foreign objects do not fall
inside the operator
interface ventilation slots
and holes, as this may
cause damage to the
unit.
 Ensure the enclosure is
free from harmful dust,
gases, and liquids.
Inspection
before system
operation
(power not
applied)
 Ensure that all wiring
terminals are correctly
insulated.
 Visually check to ensure
that there are no lose
screws, metal shavings,
and conductive or
flammable materials that
may fall into the operator
interface.
Inspection
before system
operation
(power is
applied)
 Confirm power LED
lights.
 Confirm communication
with devices.
EATON CORPORATION www.eaton.com 4
