Eaton MMX12 Series Installation Instructions

6/14 Emergency On Call Service: Local representative (http://www.moeller.net/address) or +49 (0) 180 5 223822 (de, en)
03/10 AWA8230-2416
U
LN
= 230/240V (UL)
(208 V - 15 % … 240 V + 10 %)
Motor = 230 V
U
LN
= 400/480 V (UL)
(380 V - 15 % … 480 V + 10 %)
Motor = 400/460 V (UL)
U
LN
= 120 V (UL)
(110 V - 15 % … 120 V + 10 %)
Motor = 230 V

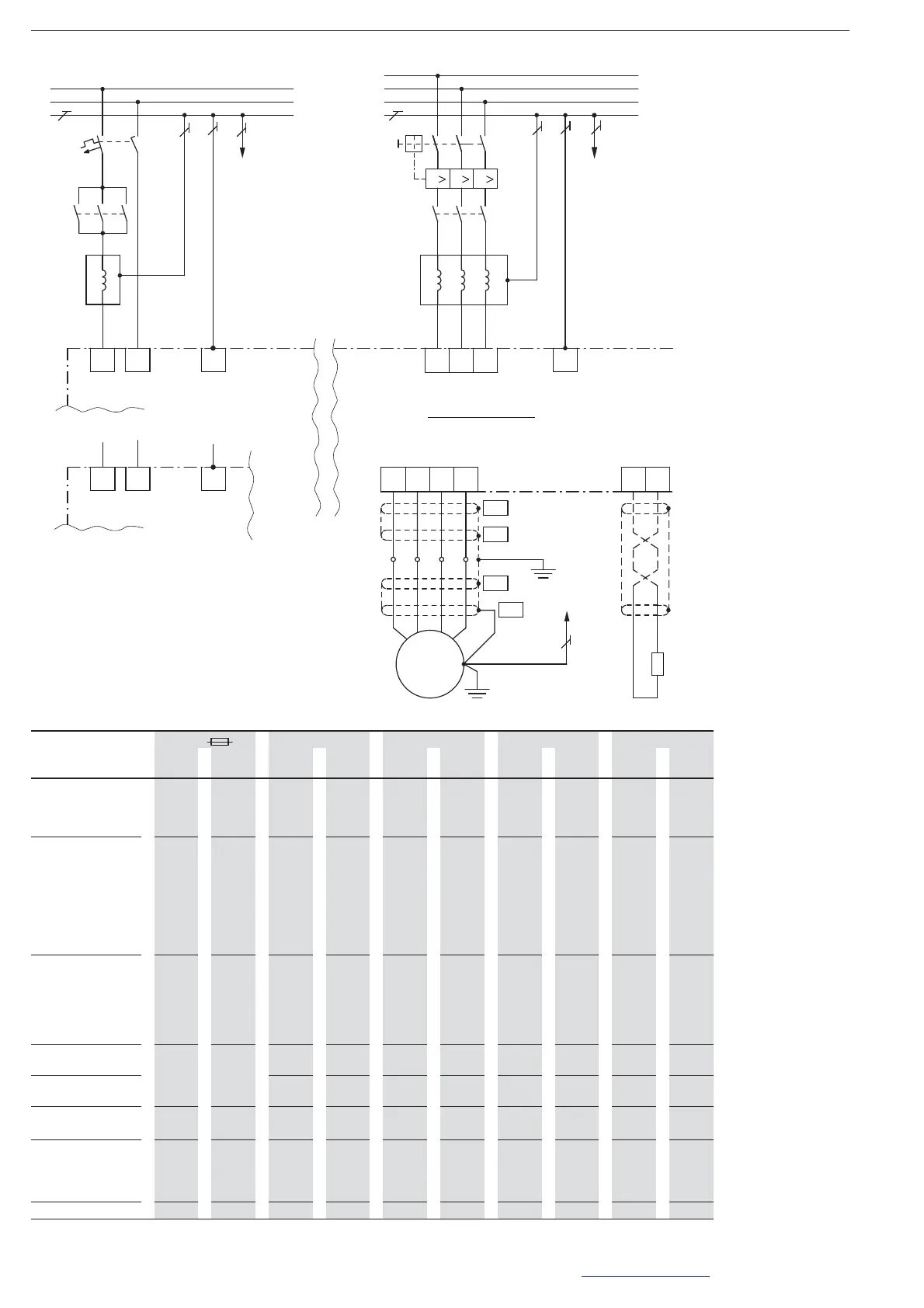

F1, Q1 = L1, L2/N, L3 U, V , W R+, R- PE
1~ 3~ mm
2
AWG mm
2
AWG mm
2
AWG mm
2
AWG
MMX12AA1D7...
MMX12AA2D4...
MMX12AA2D8...
MMX12AA3D7...
10 A – 2 x 1.5 2 x 16 3 x 1.5 3 x 16 – – 1.5 16
MMX32AA1D7...
MMX32AA2D4...
MMX32AA2D8...
MMX32AA3D7...
MMX34AA1D3...
MMX34AA1D9...
MMX34AA2D4...
MMX34AA3D3...
– 6 A 3 x 1.5 3 x 16 3 x 1.5 3 x 16 – – 1.5 16
MMX11AA1D7...
MMX11AA2D4...
MMX11AA2D8...
MMX11AA3D7...
MMX12AA4D8...
MMX12AA7D0...
20 A – 2 x 2.5 2 x 14 3 x 2.5 3 x 14 – – 2.5 14
MMX32AA4D8...
MMX32AA7D0...
– 10 A 3 x 1.5 3 x 16 3 x 1.5 3 x 16 – – 1.5 16
MMX34AA4D3...
MMX34AA5D6...
3 x 1.5 3 x 16 3 x 1.5 3 x 16 2 x 1.5 2 x 16 1.5 16
MMX11AA4D8...
MMX12AA9D6...
30 A – 2 x 6 2 x 10 3 x 6 3 x 10 – – 6 10
MMX32AA9D6...
MMX34AA7D6...
MMX34AA9D0...
MMX34AA012...
– 20 A 3 x 2.5 3 x 14 3 x 2.5 3 x 14 2 x 2.5 2 x 14 2.5 14
MMX34AA014...
– 25 A 3 x 4 3 x 12 3 x 4 3 x 12 3 x 4 2 x 12 4 12
PE
L
N
PE
2
1
R1
PE
MMX12
1 AC 230/240 V, 50/60 Hz
MMX32
3 AC 230/240 V, 50/60 Hz
MMX34
3 AC 400 V, 50 Hz / 480 V, 60 Hz
T1
L3
W2
PE
L1
L2
L3
PE
Q11
V2U2
W1V1U1
R1
PE
Q1
U
V
W
PE
PES
PES
PE
PES
PES
M
M1
X1
3 ~
PE PE
III
F1
L1 L2/N L3
e
R+
R-
R
Q1
3~ U
LN
1~ U
LN
PE
L1
L2/N
L2/N
MMX11
1 AC 120 V, 60 Hz
