Eaton NRX Series Installation Instructions

8
EATON CORPORATION www.eaton.com
Installation Instructions for Series NRX
Ethernet Communications Adapter
Module
Instruction Leaet IL01301052E
effective May 2012
SP00
SP01
SP02
SP03
SP04
SP05
SP06
SP07
DHCP Enhabled
0 = no 1 = yes
IP Address MSB
(1st octet)
0 to 255
IP Address
(2nd octet)
0 to 255
IP Address
(3rd octet)
0 to 255
IP Address LSB
(4th octet)
0 to 255
Subnet
Mask
Default Gateway
IP Address
(3rd octet)
0 to 255
Default Gateway
IP Address
(4th octet)
0 to 255
SP08
Reset PIN

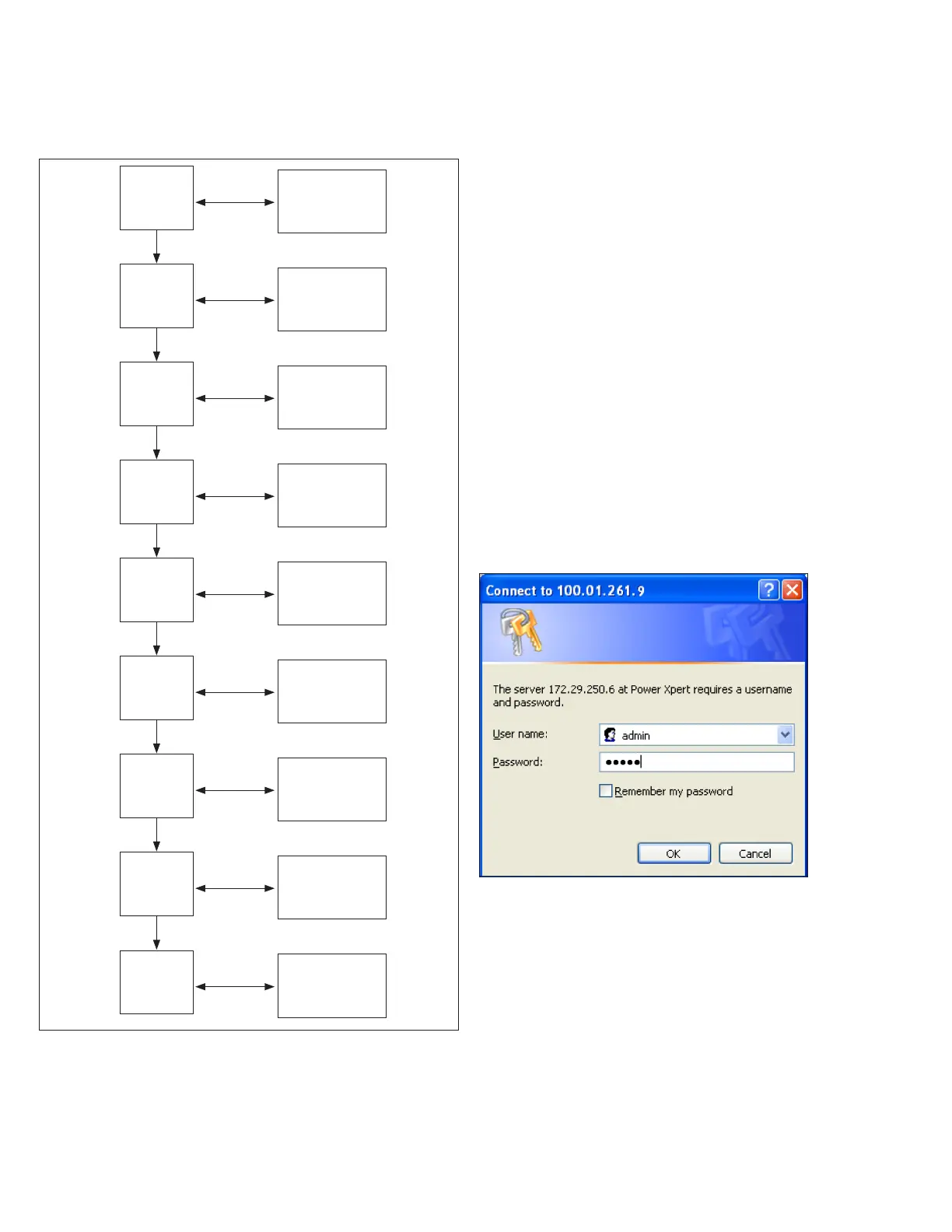

Figure 12. Setting Sequence Programming Flow Chart
Section 7: Troubleshooting
The most common issues experienced with the installation of a Series
NRX Ethernet Communications Adapter Module are addressed below.
If you have additional questions or need further information and/or
instructions, please contact your local Eaton sales representative.
Observation 1—Status LED not flashing
Action—Verify proper input power to module connectors.
Observation 2—Status LED flashing, but module does not
change state in response to master command requests
Action—Verify correct module address.
Action—Verify communication cable is connected correctly from
master to module
Action—Verify Ethernet Control jumper is in the Enable position
Section 8: ECAM Operation and Web Page
Screen Shots
The following screen shots show the ECAM web interface with an
NRX 520M trip unit.
Login Screen: Default login is:
User name: admin
Password: admin
Screen Shot 1. Login
The first action after powering the ECAM module is to set the clock.
This software clock is not battery backed up, so time will be lost if
power is cycled with an NRX 520M Trip Unit. Proper time setting is
required for accurate time stamping of data, command, and event logs.
