24
Step 3 - Keypad overview
POWERXL DM1 SERIES ADJUSTABLE FREQUENCY DRIVES PUB53696—August 2020 www.eaton.com
Menu navigation - remote keypad
This section provides basic instruction on navigating each
section in the menu structure from the remote keypad.

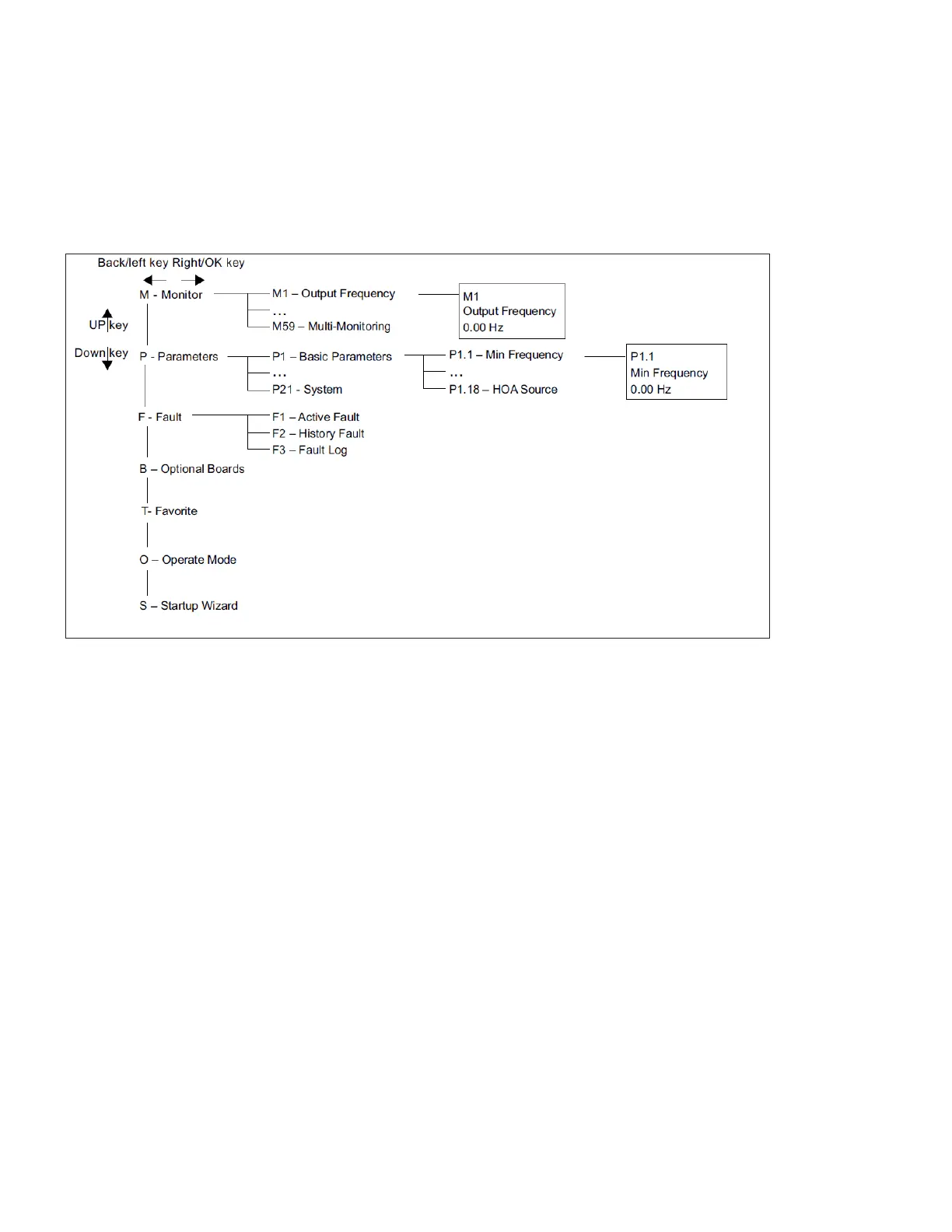

Figure 19. Remote keypad menu navigation.
