Step 4 - Start-up
POWERXL DM1 SERIES ADJUSTABLE FREQUENCY DRIVES PUB53696—August 2020 www.eaton.com
Step 4 - Start-up
Start-up wizard
In the Start-up Wizard, you will be prompted for essential information needed by the drive so that it can start controlling your
process. In the Wizard, you will need the following keypad buttons:

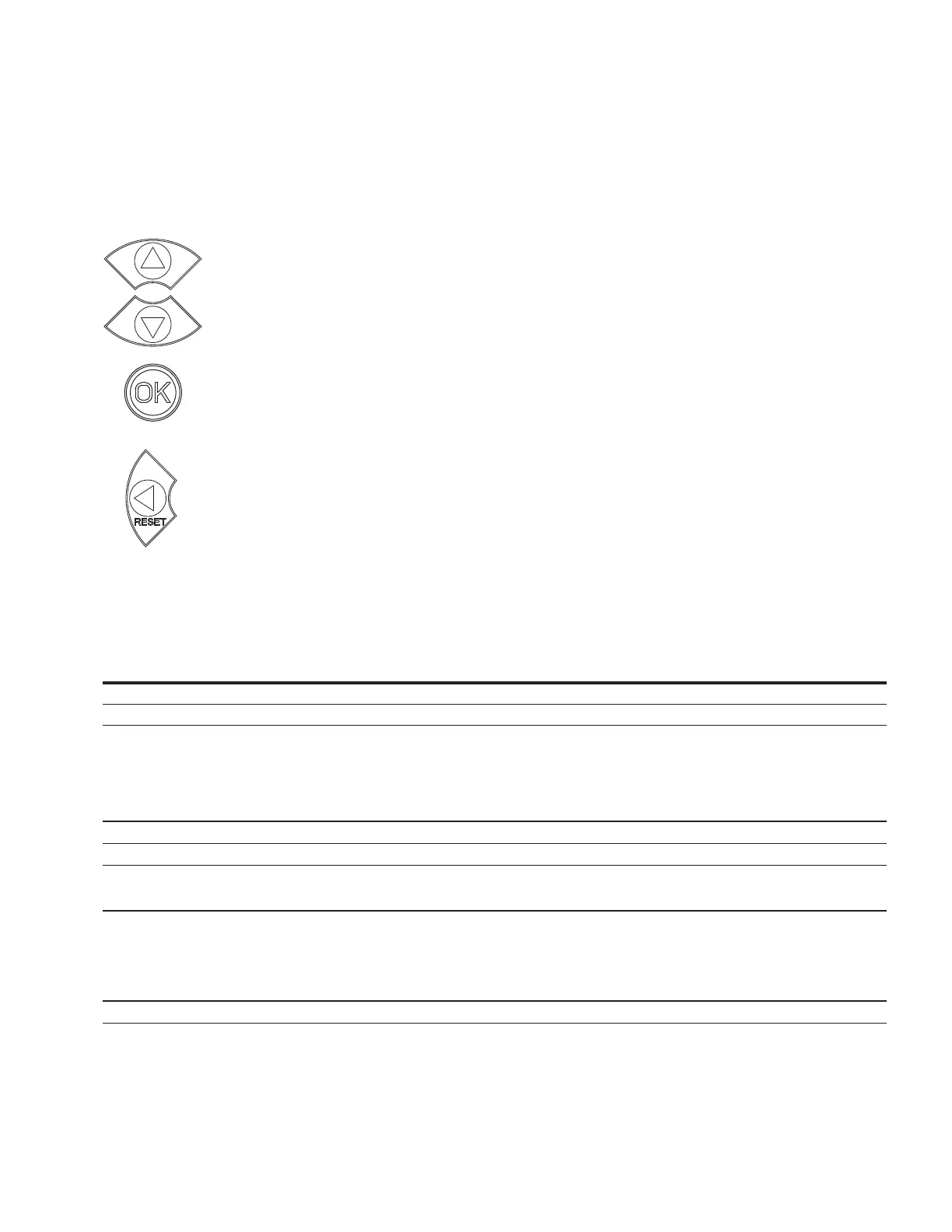

Up/down buttons.
Use these to changes value(s).
OK button.
Confirm selection with this button, and
enter into next question.
Left/back/reset button.
If this button was pressed at the first
question, the Start-up Wizard will be
cancelled.
If this button is pressed in any step on
the Start-up Wizard, the Start-up Wizard will
be cancelled.
Once you have connected power to your Eaton PowerXL frequency converter, and the Start-up Wizard is enabled, follow
these instructions to easily set up your drive.
Table 6. Start-up wizard instructions (Cont.).
P13.1.7
Parameter lock PIN
ID 624
Minimum value:
0
Maximum value:
9999
Default value:
0
Description:
The application selection can be protected against unauthorized changes with the password function. When the password function is
enabled, the user will be prompted to enter a password before application changes, parameter value changes, or password changes.
By default, the password function is not in use. If you want to activate the password, change the value of this parameter to any number
between 1 and 9999.
To deactivate the password, reset the parameter value to 0.
P1.1
b
Minimum frequency
ID 101
Minimum value:
0.00 HZ
Maximum value:
400.00 Hz
Default value:
0.00 Hz
Description:
These define the frequency limits of the frequency converter. The maximum value for these parameters is 400 Hz. The minimum
frequency has to be below the maximum frequency level. These will limit other frequency parameter settings; preset speeds, jog speed,
4 mA fault preset speed, fire mode speed, and brake speed settings.
P1.2
b
Maximum frequency
ID 102
Minimum value:
0.00 HZ
Maximum value:
400.00 Hz
Default value:
MaxFreqMFG
Description:
These define the frequency limits of the frequency converter. The maximum value for these parameters is 400 Hz. The minimum
frequency has to be below the maximum frequency level. These will limit other frequency parameter settings; preset speeds, jog speed,
4 mA fault preset speed, fire mode speed, and brake speed settings.
P1.6
a
Motor nominal current
ID 486
Minimum value:
DriveNomCurrCT*1/10 A
Maximum value:
DriveNomCurrCT*2 A
Default value:
DriveNomCurrCT
.
