LCD touchscreen display programming
PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com

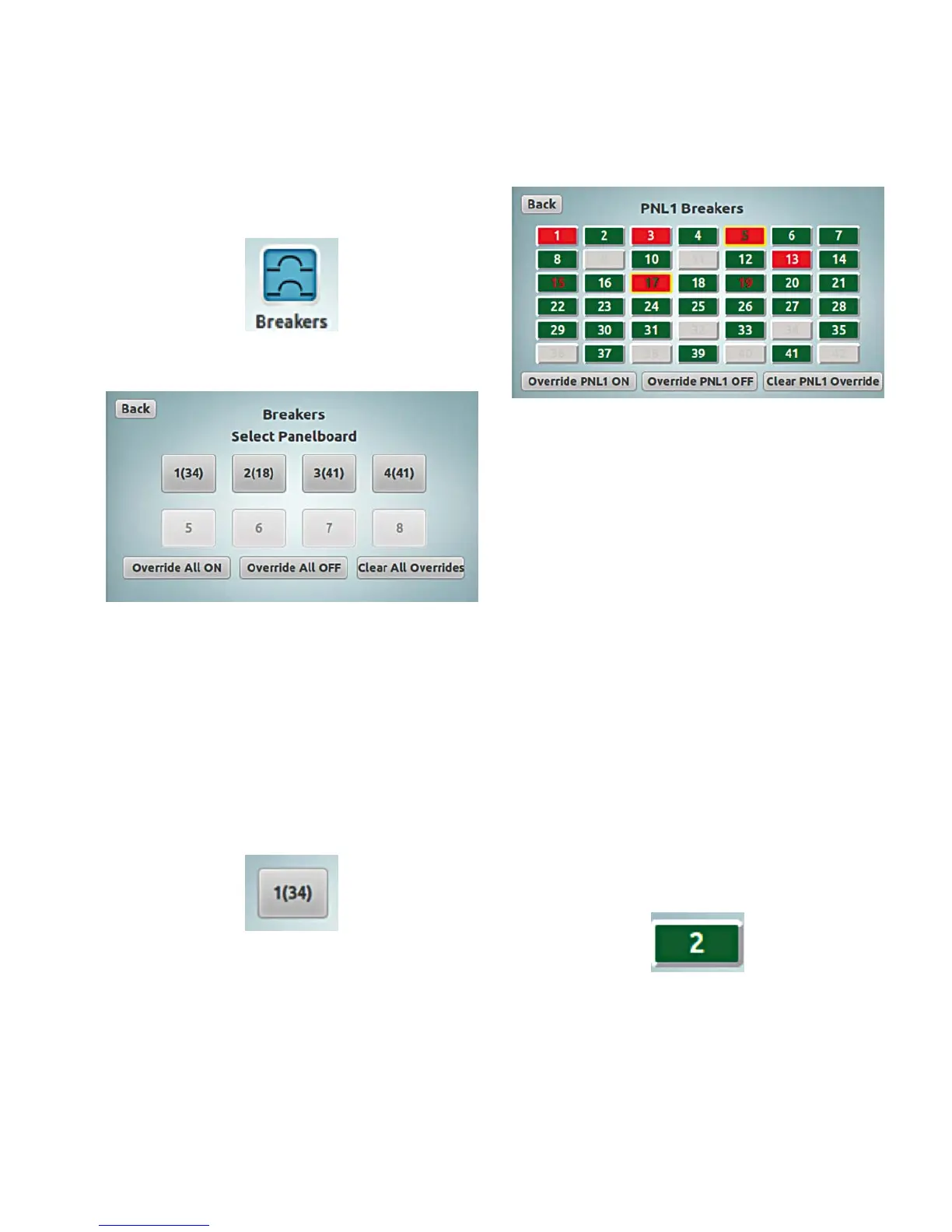

Breakers / Select Panelboard Screen
To see all of the controllable circuit breakers installed in the
panelboards, display the “Breakers” screen.
From the “Main Menu”, tap the “Breakers” icon.
This will display the “Breakers / Select Panelboard” screen.
This screen displays the panelboard numbers, and—in
parenthesis—the quantity of controllable circuit breakers
discovered in each panelboard.
ote:N On the bottom of the screen there are three override
action buttons present; if activated, the action of
these buttons will affect ALL the controllable circuit
breakers in ALL the panelboards connected to the
controller. See “Overriding Breakers in all Connected
Panelboards” for details.
To see all the controllable circuit breakers and their status
for the selected panelboard, tap the panelboard button in
the “Breakers / Select Panelboard” screen.
This will display the “Breakers” screen for that particular
panelboard.
The “Breakers” screen displays all controllable circuit
breakers that were discovered (configured) by their position
in the panelboard. If a number is greyed-out, there was no
controllable circuit breaker discovered in that position. This
screen can be compared with the physical panelboard layout
to find issues.
ote:N If there is a controllable circuit breaker that is
physically installed but was missed during the
discovery process, check the pigtail connector and
wiring from the controllable circuit breaker to the
BCB to verify that it is plugged in correctly and
cabling or connector is not damaged. After the issue
is corrected, the “Discover Breakers” process must
be reinitiated.
Breaker button indications
The “Breakers” screen buttons indicate various states
of the controllable circuit breaker using the color of the
Background, Border, and the Number.
The button Background color indicates the ON/OFF feedback
status from the controllable circuit breaker.
ote:N The feedback status is received from the controllable
circuit breaker. If the main handle is “OFF”, the status
feedback will always be “OFF”.
A green background indicates that the controllable circuit
breaker has a feedback status of “OFF”.
