Remove a circuit breaker from a group
To remove a controllable circuit breaker from the selected
group, tap the checkbox next to the target circuit breaker to
remove a checkmark.

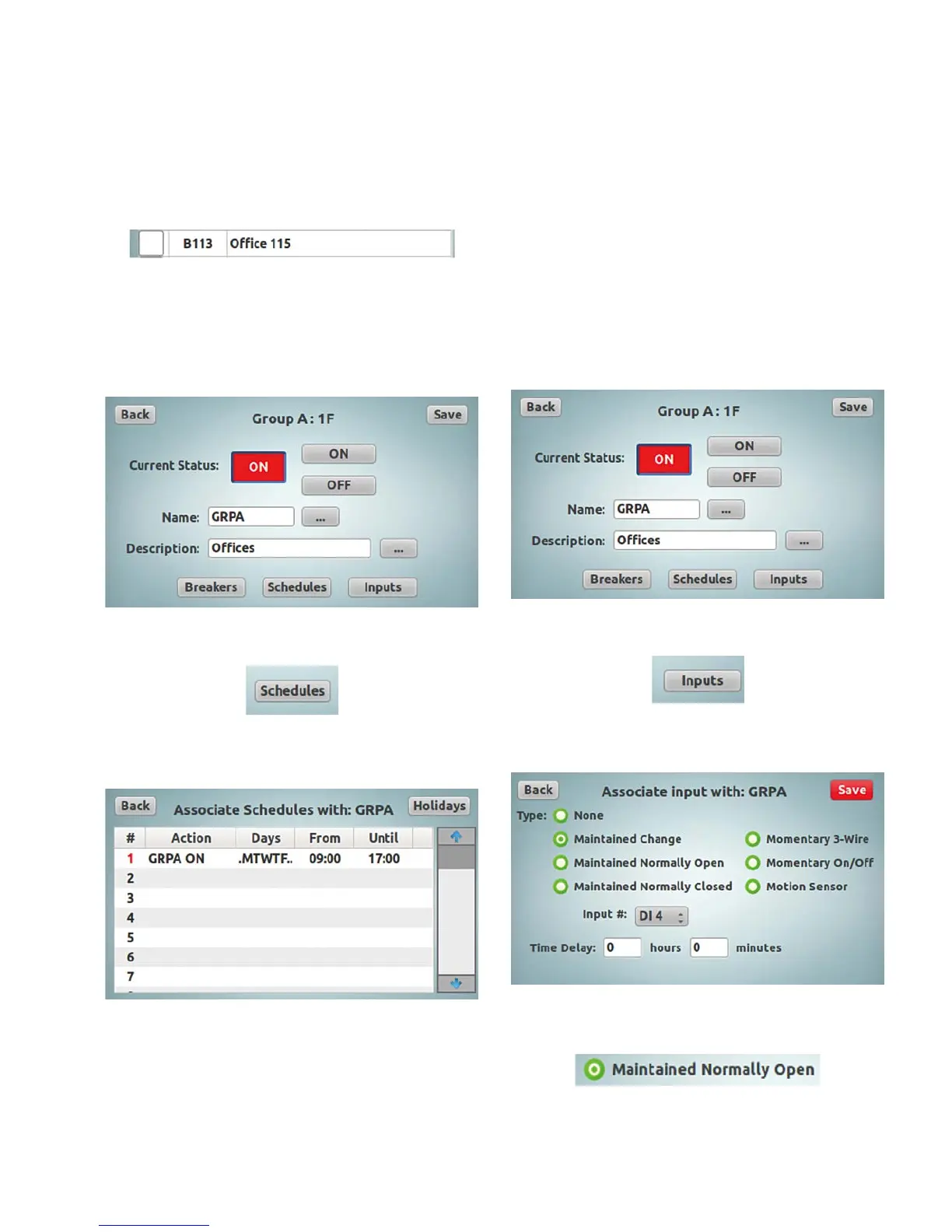

Associating a schedule with a group
A group schedule is a time based control of a group. The
group schedule screen is a quick and easy way to create
“ON” and “OFF” actions for the selected group.
In the selected group’s “Group” configuration screen,
tap the “Schedules” button.
This will display the “Associate Schedules with Group”
screen for the selected group.
Listed in this screen are all the schedules for the selected
group only.
ote:N Some schedules may be listed on higher numbered
lines, scrolling down may be required to view all
schedules.
See the “Creating Time Schedules” section of this
document for more details on the schedule screens,
creating and removing schedules.
Associating an input with a group
An Input can be associated to a Group to control it “ON”
and “OFF”. This action, in turn, commands all of the
controllable circuit breakers associated with that particular
group “ON” and “OFF”. There are 16 inputs available
for associations; 8 Digital inputs and 8 Universal inputs.
An input can be associated with a single group or
multiple groups.
In the selected group’s “Group” configuration screen,
tap the “Inputs” button.
This will display the “Associate Input with Group” screen for
the selected group.
Tap the radio button beside the “Type” to choose the input
type required.
