Eaton REC Series - Rack Mount Adjustment Guide

10
©2015 Eaton Corporation
All rights reserved
REC Series Enclosure Installation Guide _issue 4
Installation Guide
8. RACK MOUNT ADJUSTMENT

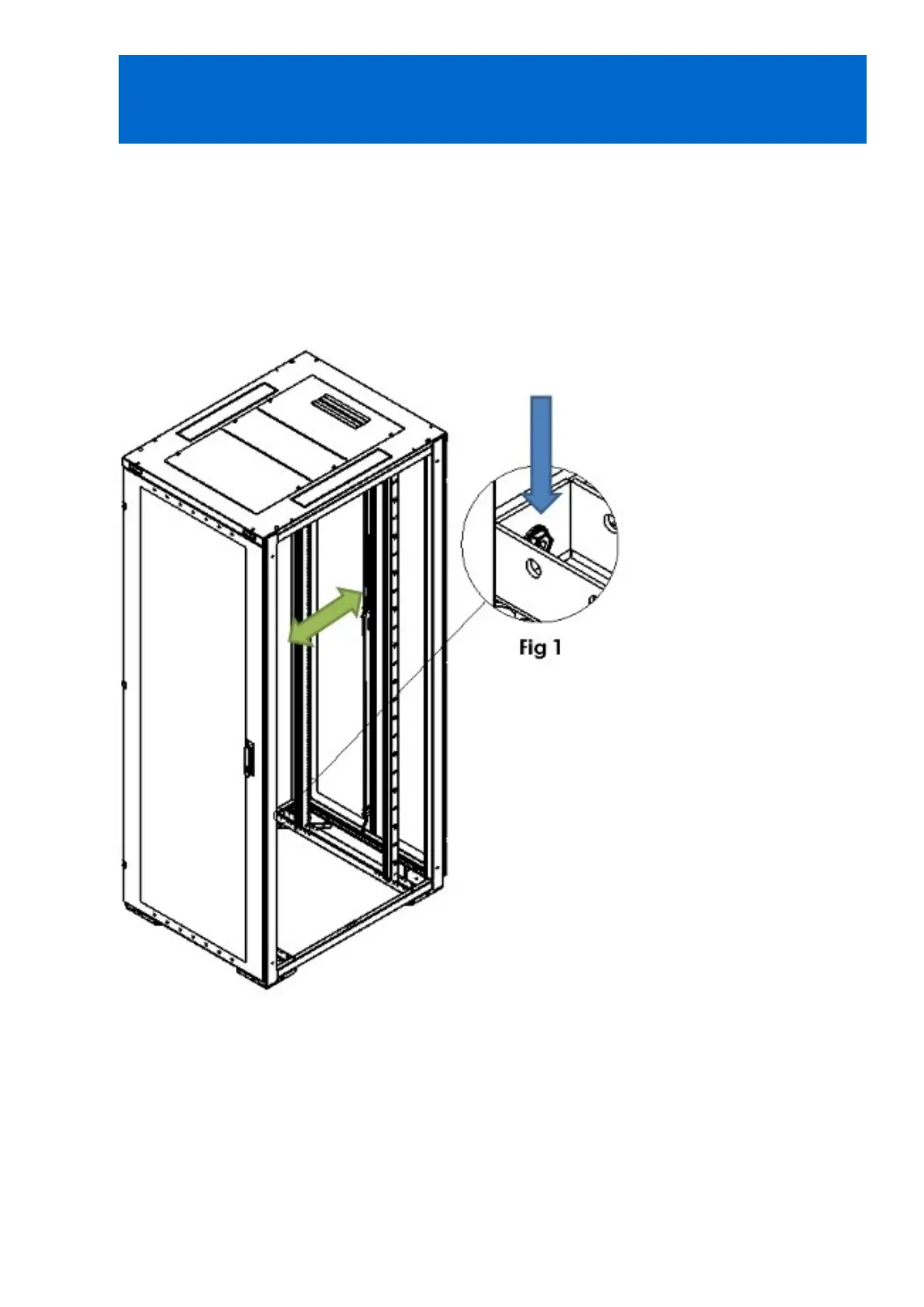

1. Loosen the four bolts using a 5mm Allen key, do not remove the bolt (Fig 1).
2. Slide rails to desired location.
3. Ensuring the rails are vertical, tighten the bolt with 5mm Allen key (Fig 1).
