REC Series Enclosure Installation Guide _issue 4
Installation Guide
6. BAYING THE ENCLOSURE

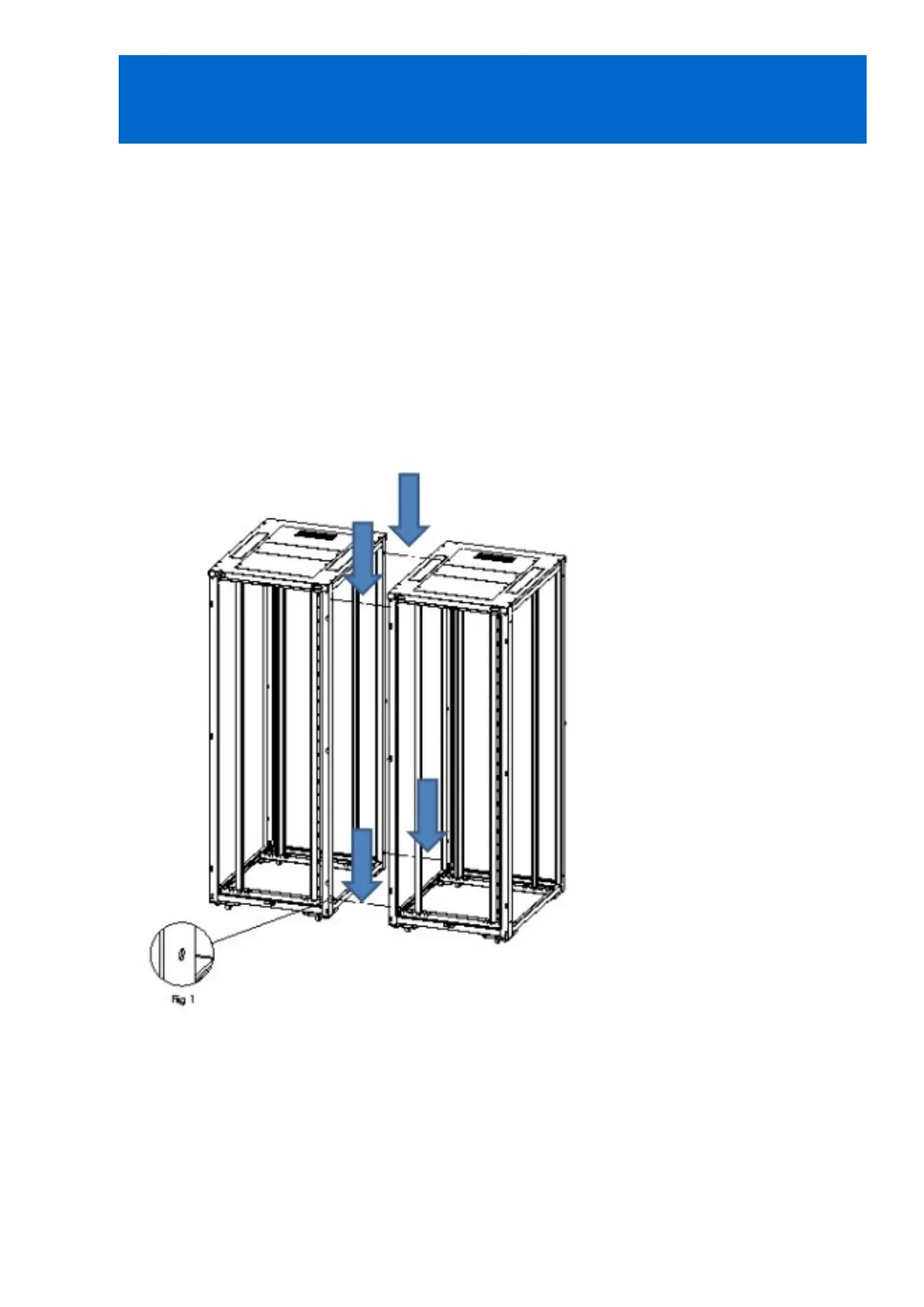

1. Remove 4 blanking grommits per enclosure (Fig 1).
2. Position and level the adjacent enclosure frames. Ensure that the
frames are precisely aligned both vertically and front-to-back.
3. Ensure a shake proof washer contacts the painted surface and
Bolt the adjacent frames together with the four nuts, bolts and
washers included in the baying kit, part number NRA BTK.
IMAGE WITH DOORS AND SIDE PANELS REMOVED FOR
CLARITY
