Eaton REC Series - Main Rack Earth Bonding Points

13
©2015 Eaton Corporation
All rights reserved
REC Series Enclosure Installation Guide _issue 4
M6 Shake proof washer
M6 x 25 Setscrew
M6 Serrated hex flange nut
STEP 1 - MAIN RACK EARTH BONDING POINTS
Fit main rack earth bonding points to corner gussets adjacent
to door hinge positions. If double doors are fitted then fit main
earth points to both adjacent corner gussets.
Note - Main earthing points must be
assembled so that the M6 Shake proof
washer is fitted under the head of the M6
Setscrew as shown in Fig 1.0.
Tighten to 12Nm.
Repeat this step at the rear of the rack.

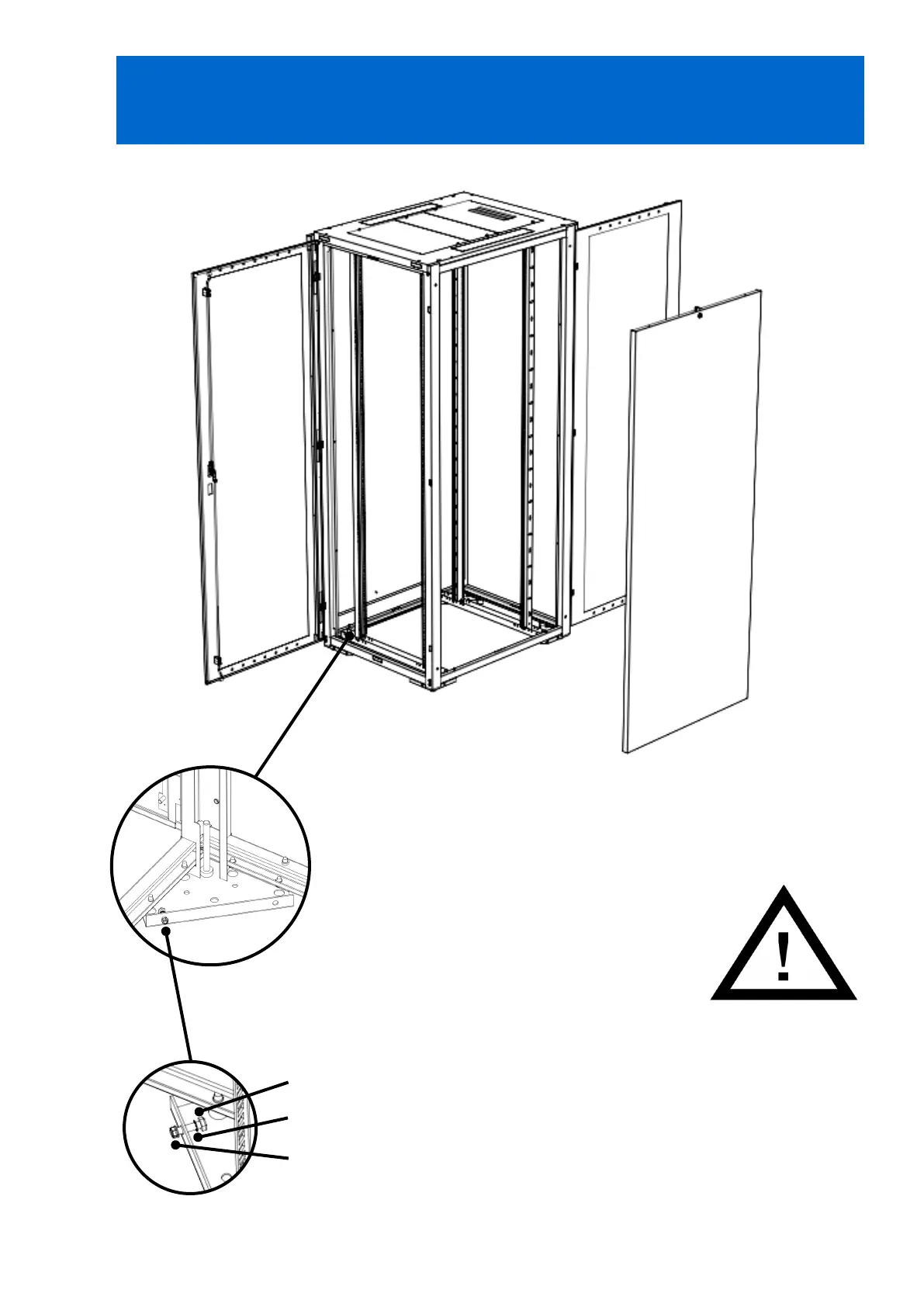

Fig 1.0
Rack Earth Kit Fitting Instructions
Installation Guide
