Eaton TRIPP LITE Series Manual

3

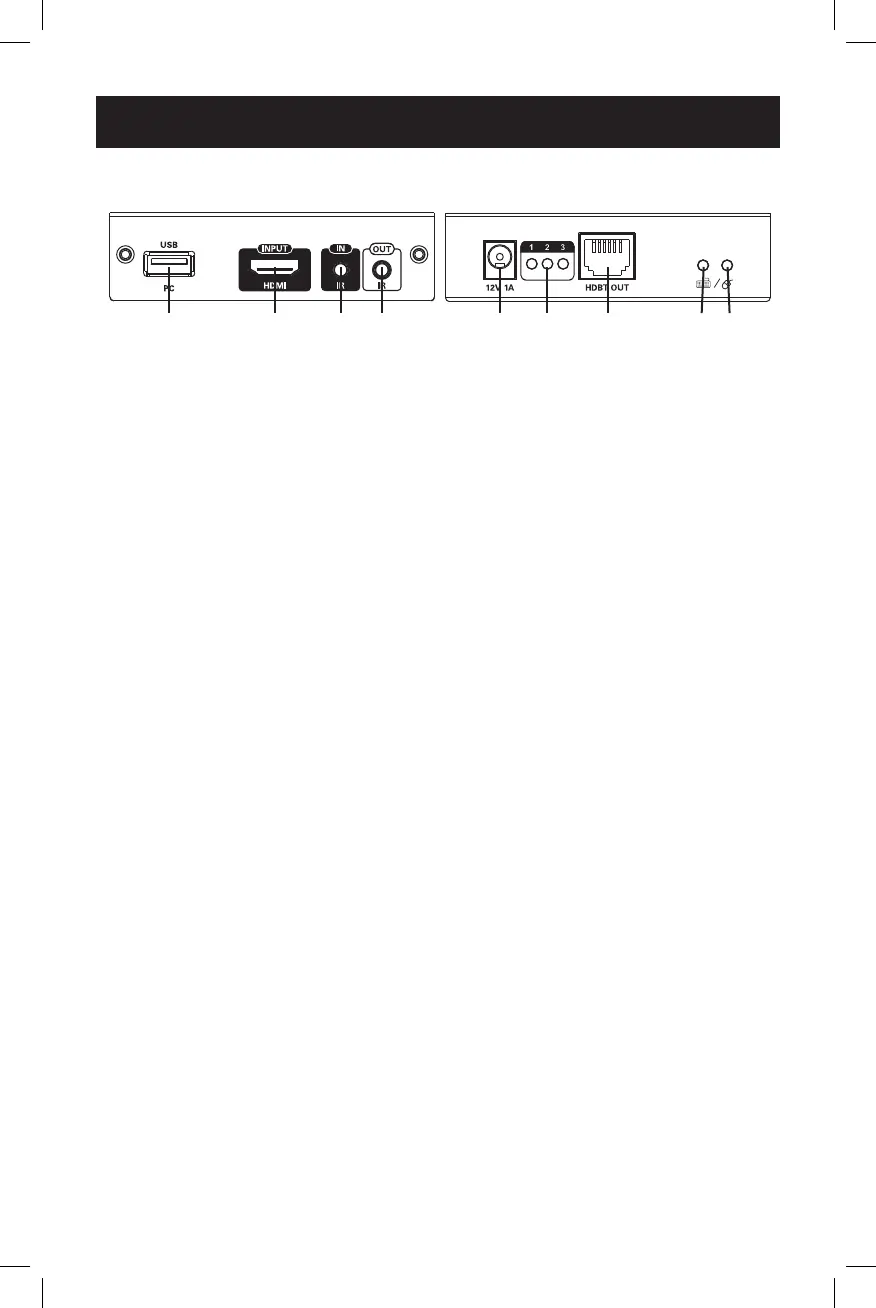

Feature Identication
HDBaseT Transmitter (TX) Unit
1
PC USB: Use the included USB 2.0 A (M/M) cable to connect your
computer to the transmitter (TX) unit
2
HDMI INPUT: HDMI signal input (connects to your HDMI source device)
3
IR IN: IR signal input
4
IR OUT: IR signal output
5
12V 1A: Power input
6
Transmission Signal LEDs:
LED 1 - Power LED
On: Power is being supplied
O: Power is not being supplied
LED 2 - TX & RX Connection Status LED
On: Connection link is established between TX & RX units
Flashing: No connection link is detected between TX & RX units
LED 3 - HDMI Output LED
On: HDMI output port is connected to a display
O: HDMI output port is not connected to display
7
HDBT OUT: HDBaseT signal output
8
Keyboard Status LED:
On: Keyboard is connected
Flashing: Keyboard is in use
O: Keyboard is not connected
9
Mouse Status LED:
On: Mouse is connected
Flashing: Mouse is in use
O: Mouse is not connected
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
