Eaton Ulusoy URING36 C - SF6 - Electrical Scheme and Maintenance; Electric Terminal Scheme; Replacing the Voltage Indicator

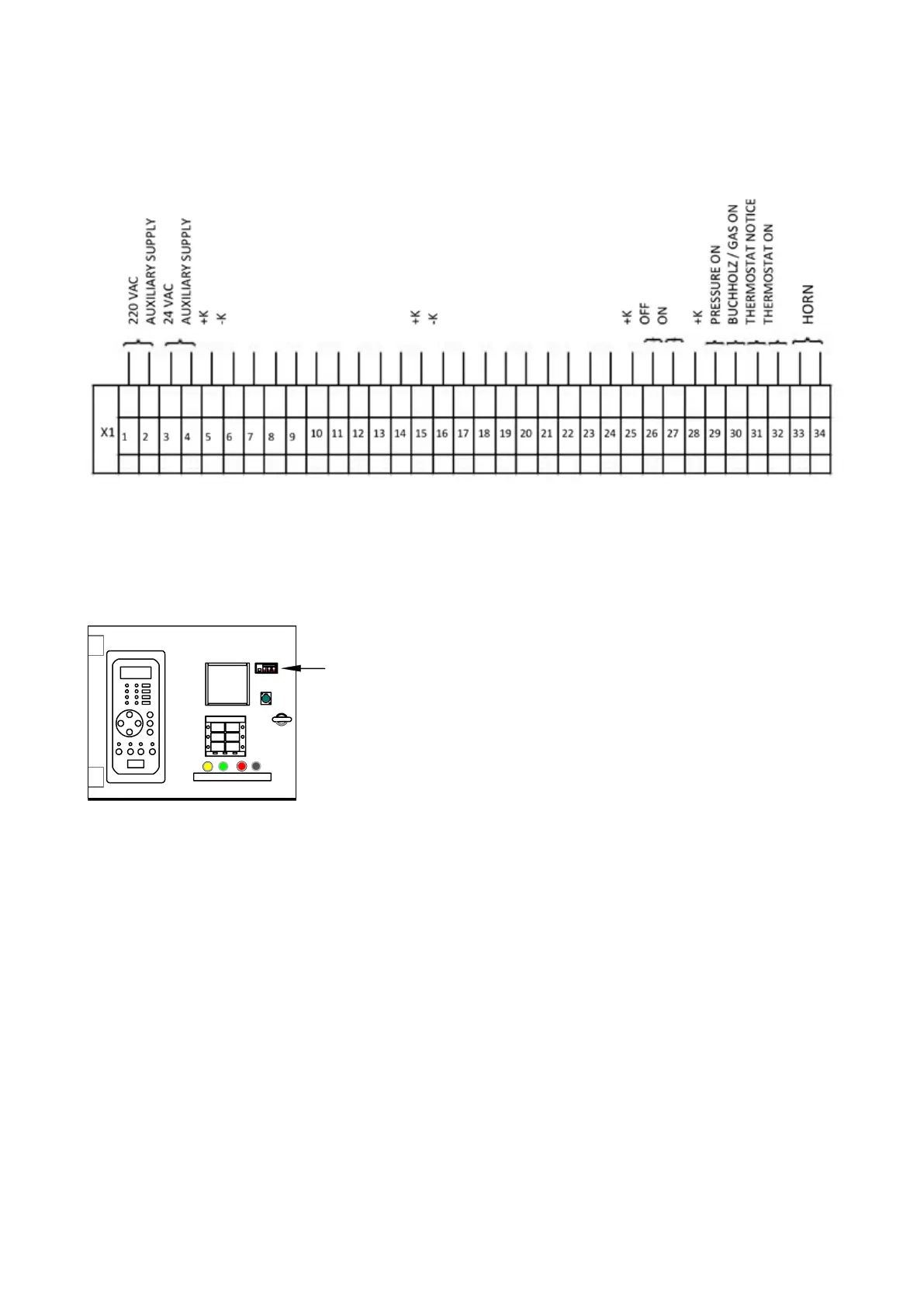

ELECTRIC TERMINAL SCHEME
REPLACING THE VOLTAGE INDICATOR
KESC POZ.
KONTROL
KESC AÇMA
AÇIK
KESC KAPAMA
KAPALI
LAMBA DENEM
DC AYDINLATMA
To replace a faulty voltage indicator;
Open the front cover of low voltage assembly board of the cell Remove
the faulty indicator by dismantling its latches and replace it with a new
one. This procedure can be performed when the cell is supplied with
power.
