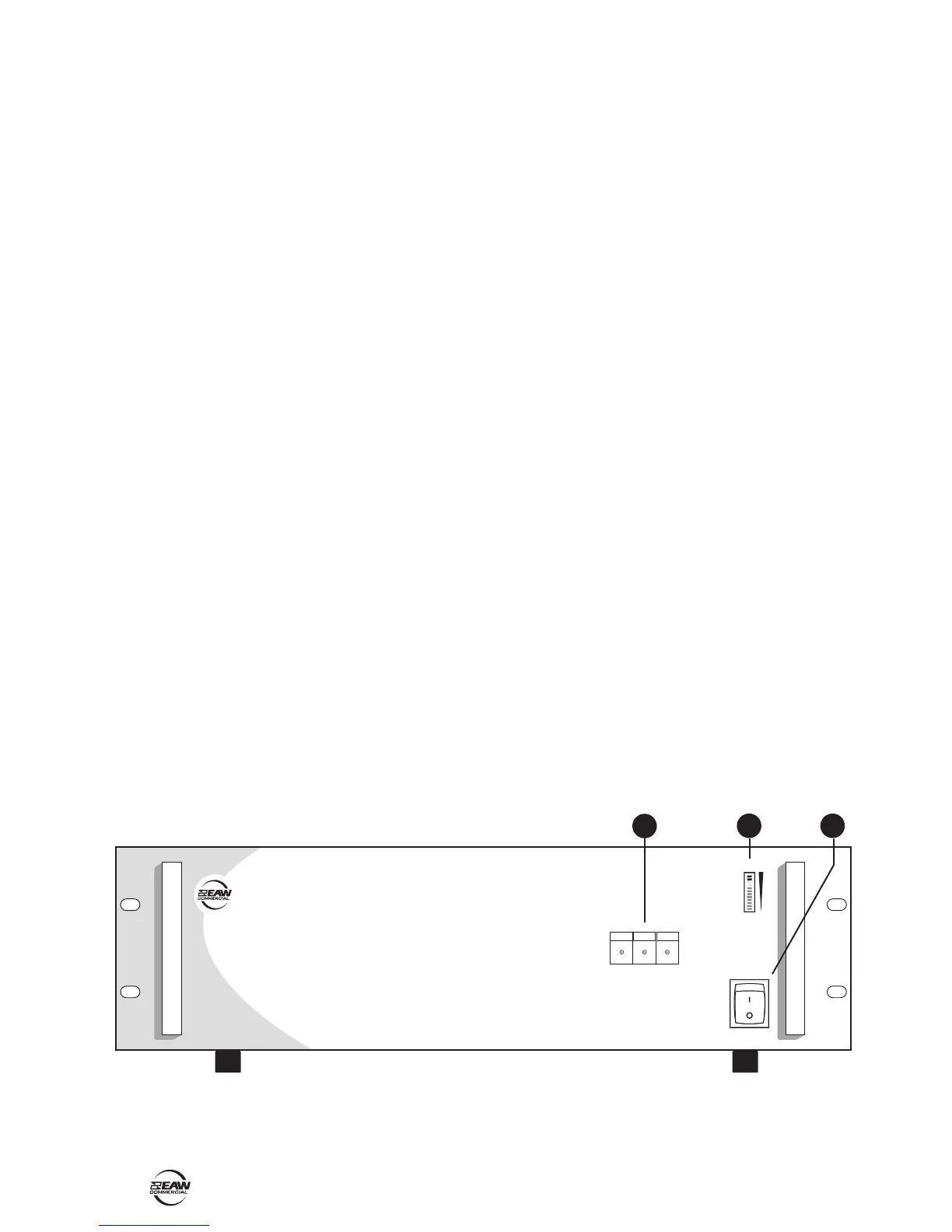

3. FRONT PANEL FEATURES
1. LED INDICATORS
PROT
This LED is on when the amplier is in protection mode.
This can occur if the volume is too high for long periods, or
if heavy loads, a speaker defect, or poor ventilation cause
the amplier to overheat. If this light comes on, turn down
your input signal to avoid over-working the amplier, and
check your speakers and wiring for defects. Check that the
amplier is also receiving good ventilation.
SIGNAL
This LED is on when an input signal is present.
PEAK
This LED comes on when the input signal is high and the
maximum output is reached. Turn down the input signal if
this LED comes on often.
2. LED METER
This meter shows the signal output level.
The lower eight LEDs represent the area between –20 dB
and 0 dB. Adjust the volume to keep your output within
these levels.
Turn down the volume level so the top two LEDs do not
light, otherwise the outgoing signal will clip and distort.
3. POWER
Use this rocker switch to turn the unit on or off. This
connects/disconnects the AC power to the AC power
transformer.
The amplier is on when the top of the switch is pressed
in. It is off when the bottom of the switch is pressed in.
POWER
OUTPUT
CXA240 - AMPLIFIER
PEAK
PROT
SIGNAL
DC FUSE
CAUTION : SHOCK HAZARD-DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED.
RISK OF ELECTRIC SHOCK
DO NOT OPE
N
GND
FUSE
OFFON
IV/10K BAL.
DC POWER
LINE
LEVEL
ADJUST
TO REDUCE THE RISK
OF FIRE OR ELECTRI
C
SHOCK, DO NOT EXPOSE
THIS AP PARATUS TO
RAIN OR MOISTURE.
RISK OF HAZARDOUS
ENERGY! MAKE PROPER
SPEAKER CONNECTION.
SEE INSTRUCTIONS
BEFORE USING!
WARNING
INPUT
6.3AL 250V
MANUFACTURED IN CHINA © 2004 LOUD TECHNOLOGIES INC.
"EAW" IS A REGISTERED TRADEMARK OF LOUD TECHNOLOGIES INC.
COM COM 70V 100V
4
OUTPUT
DC 24V
CAUTION
CXA240 - AMPLIFIER
115VAC/230VAC~ 60Hz/50Hz
115VAC/230VAC~ 60Hz/50Hz
115
F
U
S
E
F
U
S
E
F
U
S
E
PUSH PUSH
1
2
3
