EBARA TH Series - Component Views and Parts; Model TH Sectional View (Frame Mounted)

7
Rev10/2018
Operating, Installation, and Maintenance

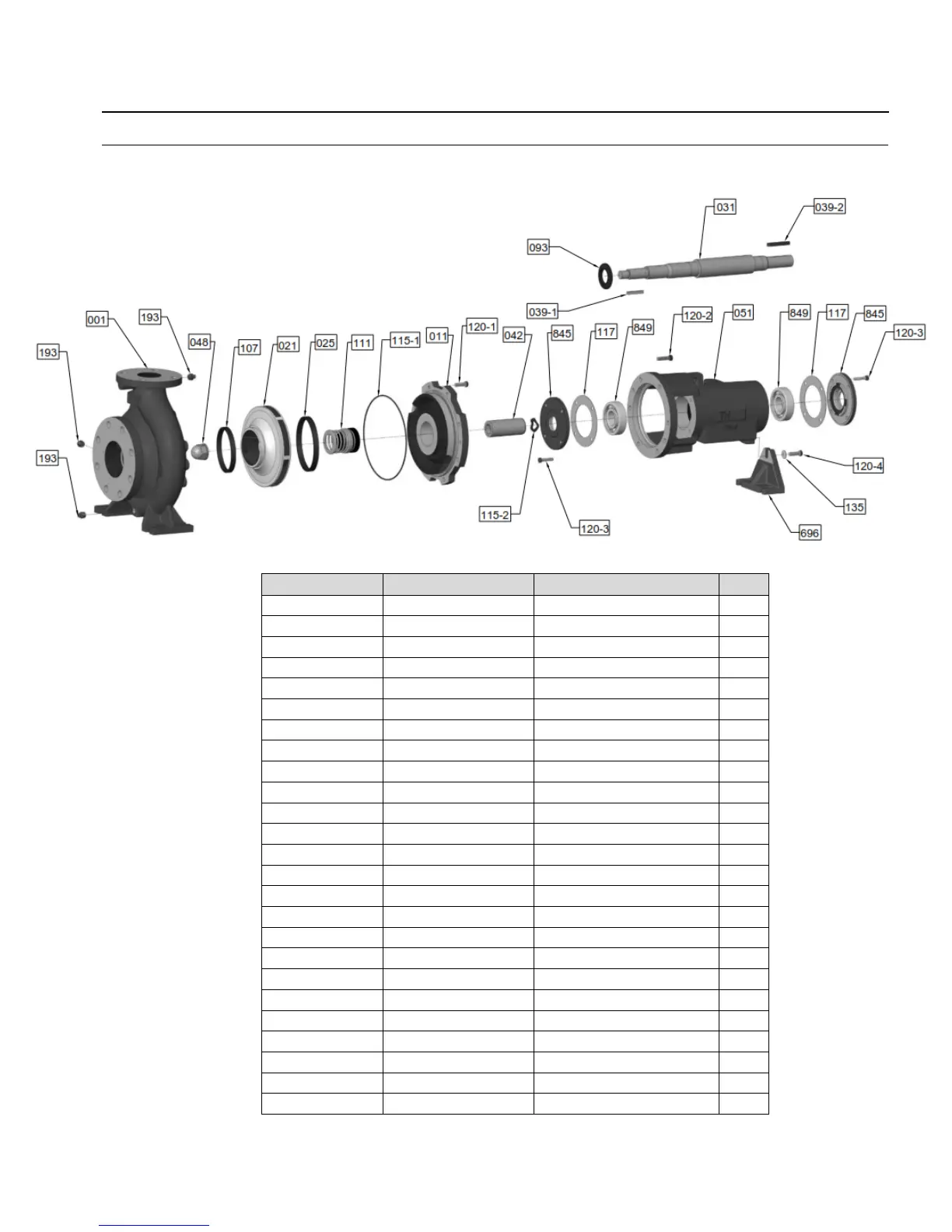

Model TH Sectional View Frame Mounted
ItemNumber PartName Material No.
001 Casing
Cast Iron 1
011 Casing Cover
Cast Iron 1
021 Impeller
Cast Iron 1
025 Impeller Wear Ring
410 SS 1
031 Shaft
SAE 1045 Steel 1
039-1 Key
Steel 1
039-2 Key
Steel 1
042 Shaft Sleeve
304 SS 1
048 Impeller Nut
316 SS 1
051 Bearing Housing
Cast Iron 1
093 Thrower
Nitrile Rubber 1
107 Casing Wear Ring
410 SS 1
111 Mechanical Seal
Ceramic/Graphite/Buna 1
115-1 O-ring
Buna 1
115-2 O-ring
Buna 1
117 Gasket
2
120-1 Bolt
Steel 8
120-2 Bolt
Steel 6
120-3 Bolt
Steel 8
120-4 Bolt
Steel 1
135 Washer
Steel 1
193 Plug
Steel 3
696 Motor Support
Cast Iron 1
845 Bearing Cover
Cast Iron 2
849 Ball Bearing
2
