POWER-UP Locking System with Built-In Alarm
Key Cylinder

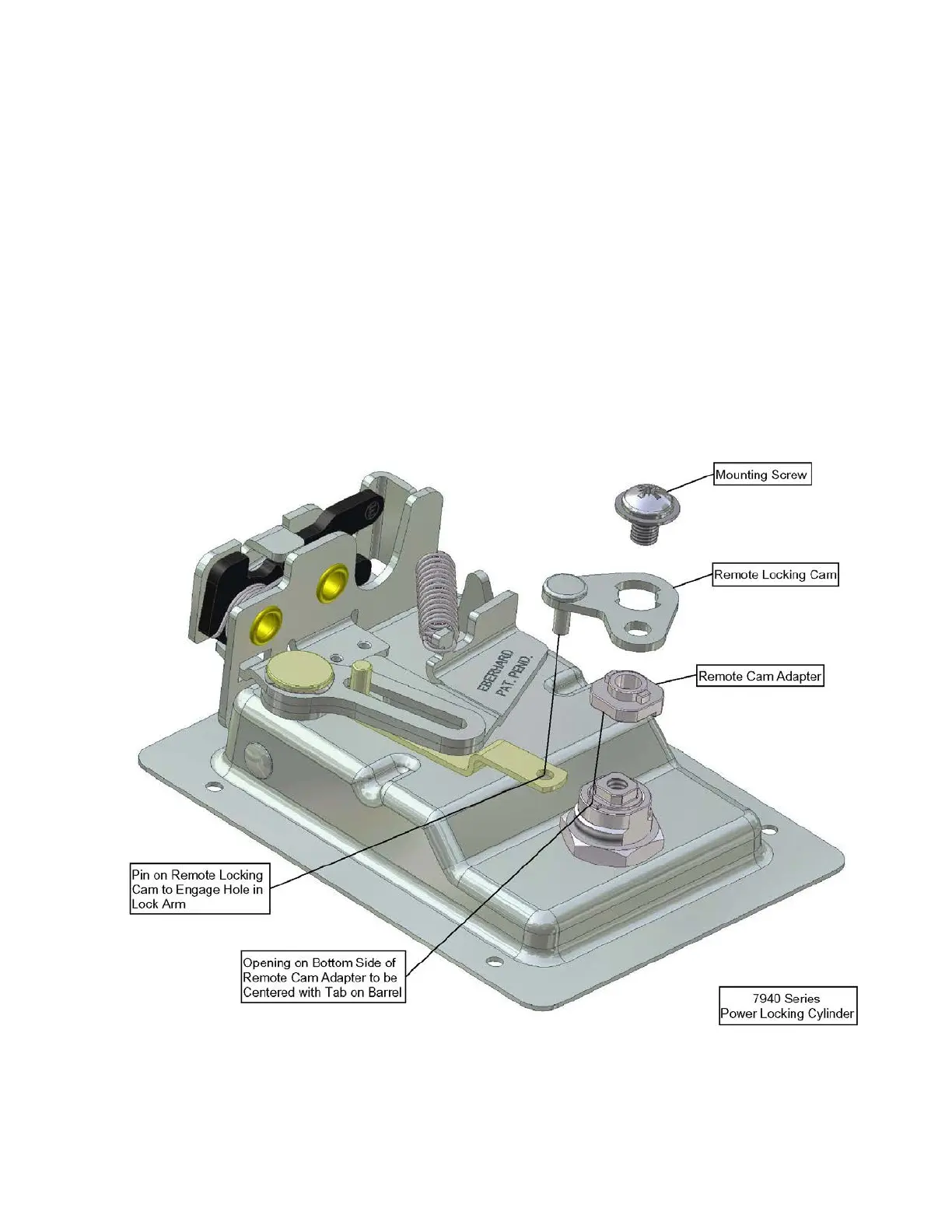

Typical assembly of a power locking key cylinder:
Configuration of power locking key cylinders will vary depending on the application. The ability to make
various handle configurations power locking will need to be reviewed and verified on a product by product
basis.
For reference only, the components are to be assembled as shown to enable proper function with the power
actuators. After assembly, the key cylinder and remote locking cam are to be able to rotate 90° clockwise
and counterclockwise independently. The key is to be removable in one position only. This will enable the
power actuator to operate the cam when the key is not installed.
