Chengdu Ebyte Electronic Technology Co.,Ltd. EBT3001 User Manual
Copyright ©2012–2022，Chengdu Ebyte Electronic Technology Co.,Ltd.
4

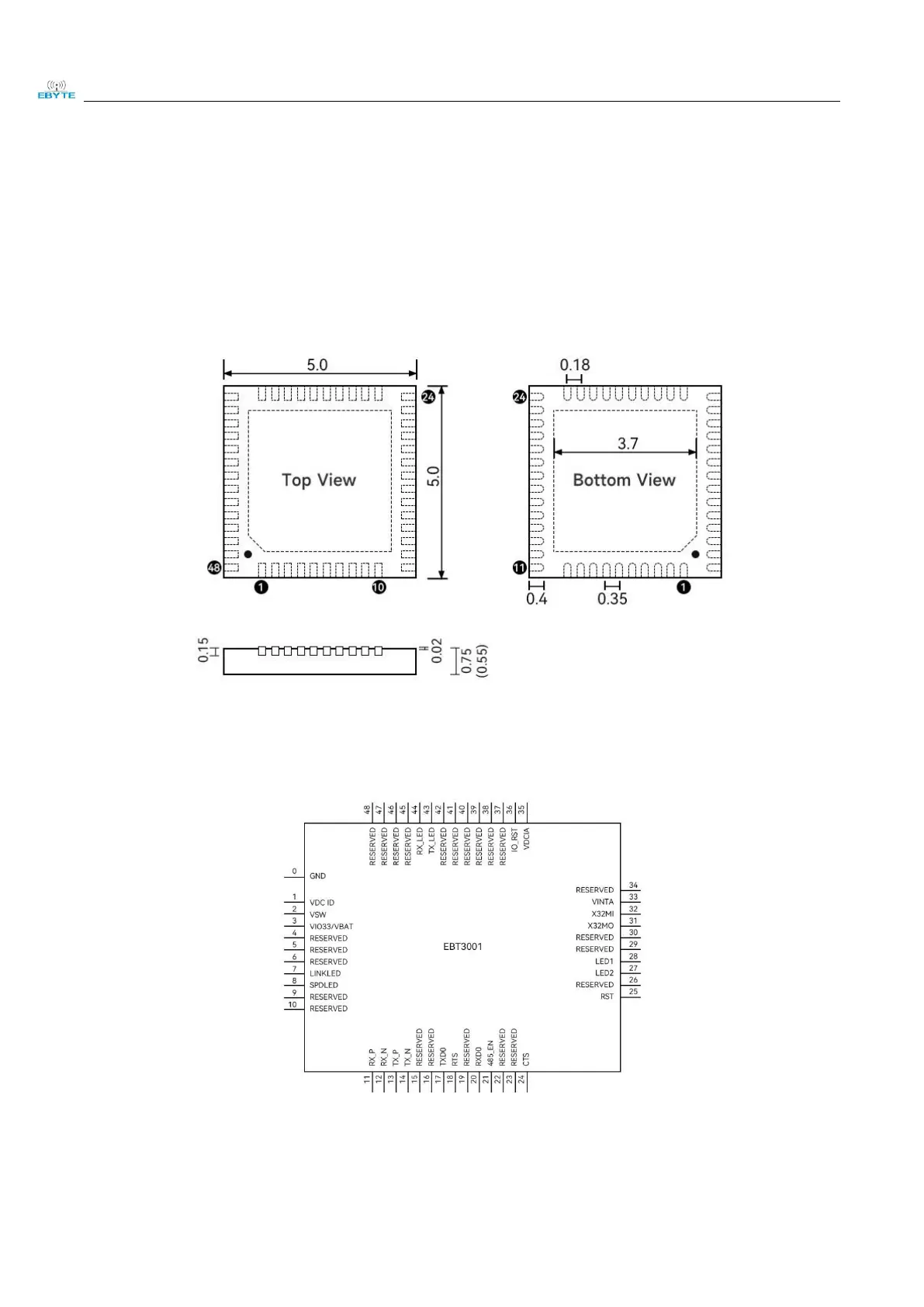

2．Size and pin definition
2.1 Package size
This chip adopts standard QFN48 package ( QFN48-5*5 )
2.2 Pin Definition
