Ebyte NB144 - Open Network Assistant; Send and Receive Data Test

Chengdu Ebyte Electronic Technology Co., Ltd. NB144 User Manual
Copyright ©2012，Chengdu Ebyte Electronic Technology Co., Ltd.
9

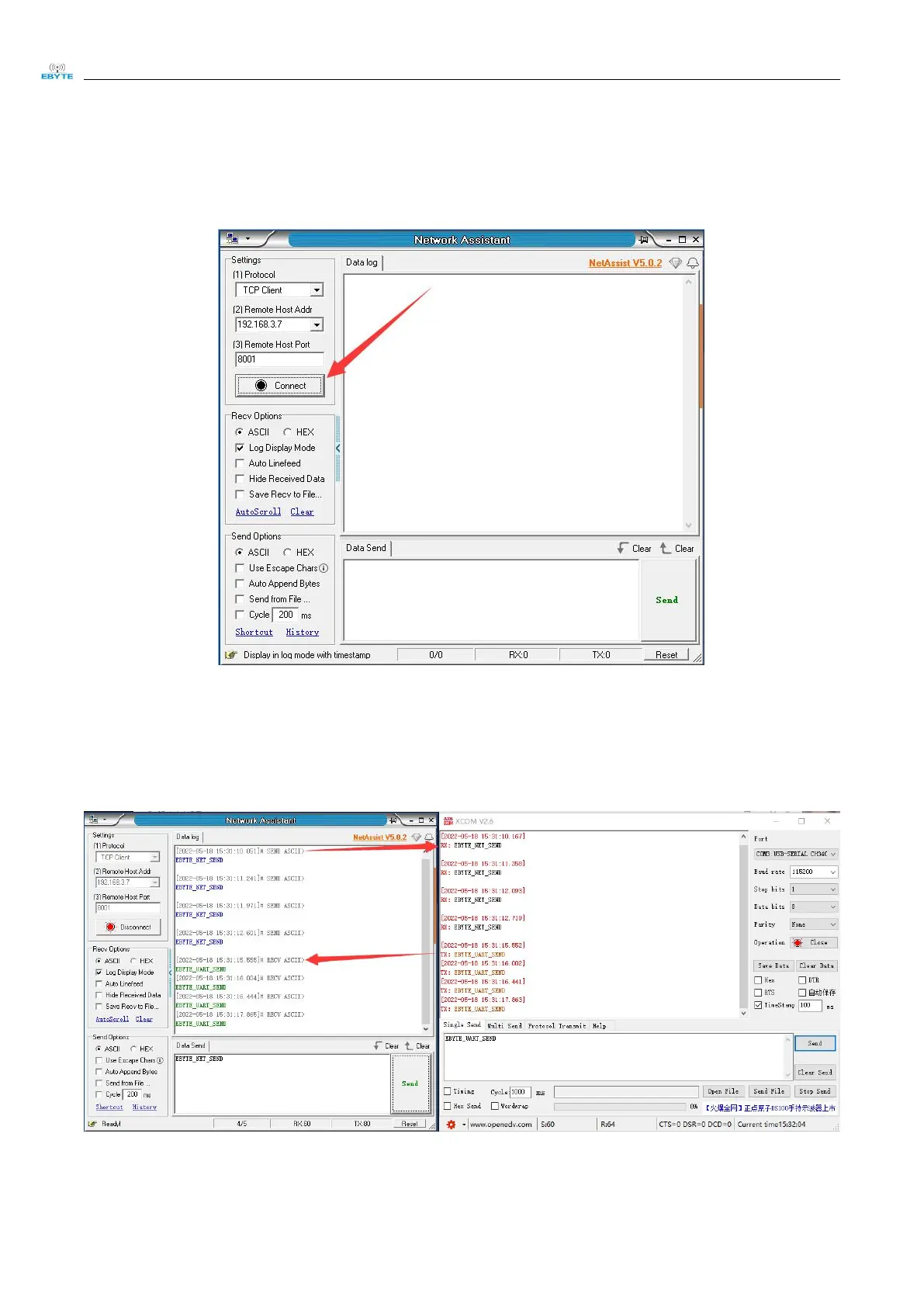

2.3.5 Open network assistant
Select the "TCP client " mode, configure the remote IP as "1 92.168.3.7 ", and configure the remote port as "8 001 ",
as shown in the figure below:
2.3.6 Send and receive data test
Click the [Send] button on the " Network Debug Assistant " and " Serial Port Debug Assistant " respectively to
realize the transparent transmission of network and serial port data, as shown in the figure below.
