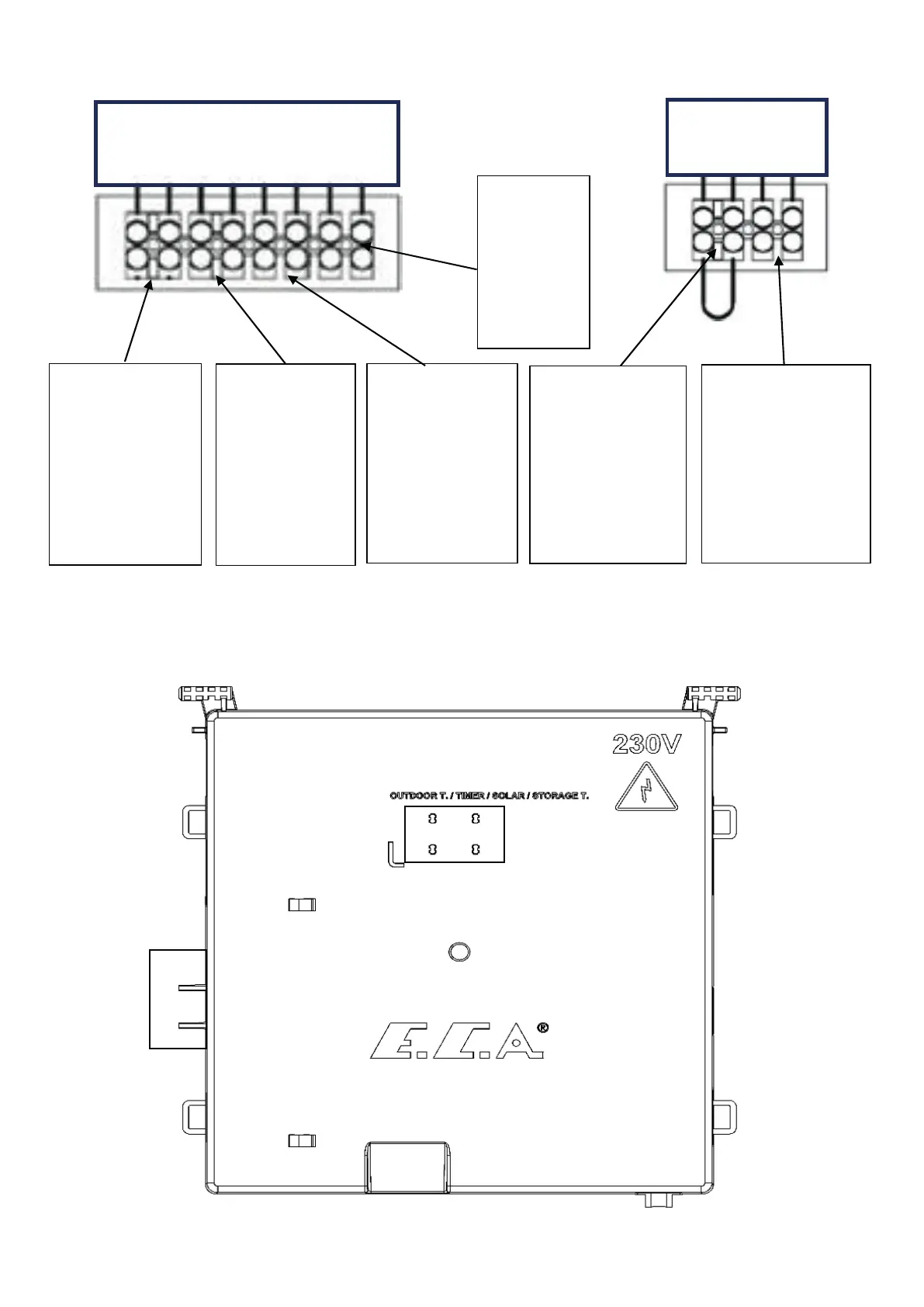

11. CONTROLLER CONNECTION
A
B
Connect the solar
s
ystem connection
cables to the
terminal points
shown.
Connect the
timer connection
cables to the
corresponding
terminal points.
Connect the
cables of the
external
temperature
sensor to the
empty terminal
ports and
complete the
assembly.
MAİNBOARD
Connect the
t
hermostat cables to
connect the
opentherm room
thermostat.
Remove the
bridge shown in
the figure and
connect the
thermostat cables
to connect the
on/off room
thermostat.
Connect the
boiler tank
connection
cables to the
terminal
points shown
.
MAİNBOARD
DETAIL A DETAIL B
Figure 14
Table 7
230 V H.V. R.T.
24 V L.V. R.T.
23
