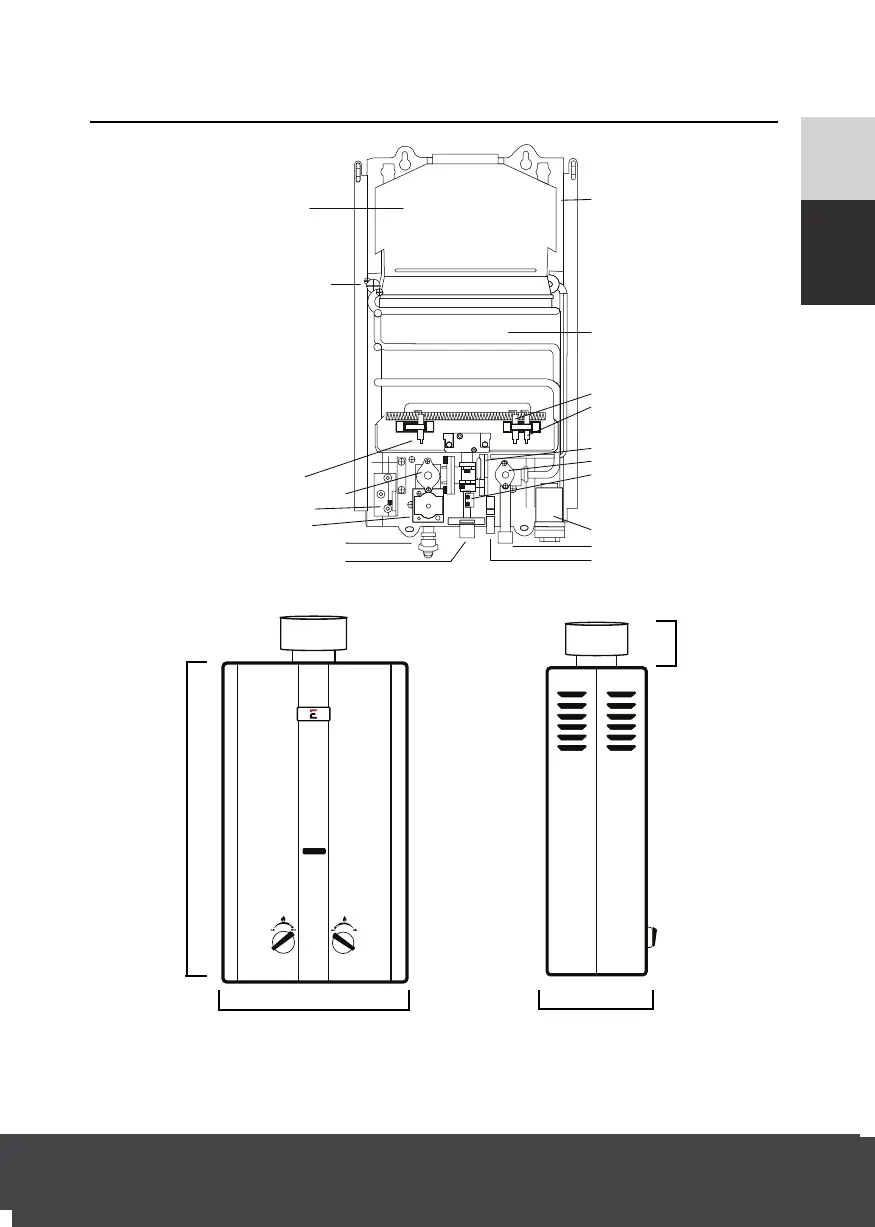

Construction and Parts of the L10/L10nr
Front
Weight: 22.8 lbs. | 22 lbs. without raincap
Side
TROUBLESHOOTING
Exhaust
Back Plate
Heat Exchanger
Ignition Pin 2
Flame Sensor Pin
Water-Gas Interlock
Water Adjustment Valve
Micro Switch
Battery Box
Water Inlet Pipe
Water Drain Valve
Over-Temperature Sensor
Ignition Pin 1
Gas Adjustment Valve
Solenoid Valve
Ignition Pack
Gas Compression Fitting
Hot Water Outlet Pipe
14"
7"
6" (L10nr
Not Included)
29.5"
