ECD DO82 Instructional Manual
4
of 1
of 1 rating
52 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
HYDRA-DS NO
3
-N
Page
24
2.4.
4
LQ
80
0
W
IRI
NG
Electrical wiring sh
ould only be conduct
ed by qualified
personnel.

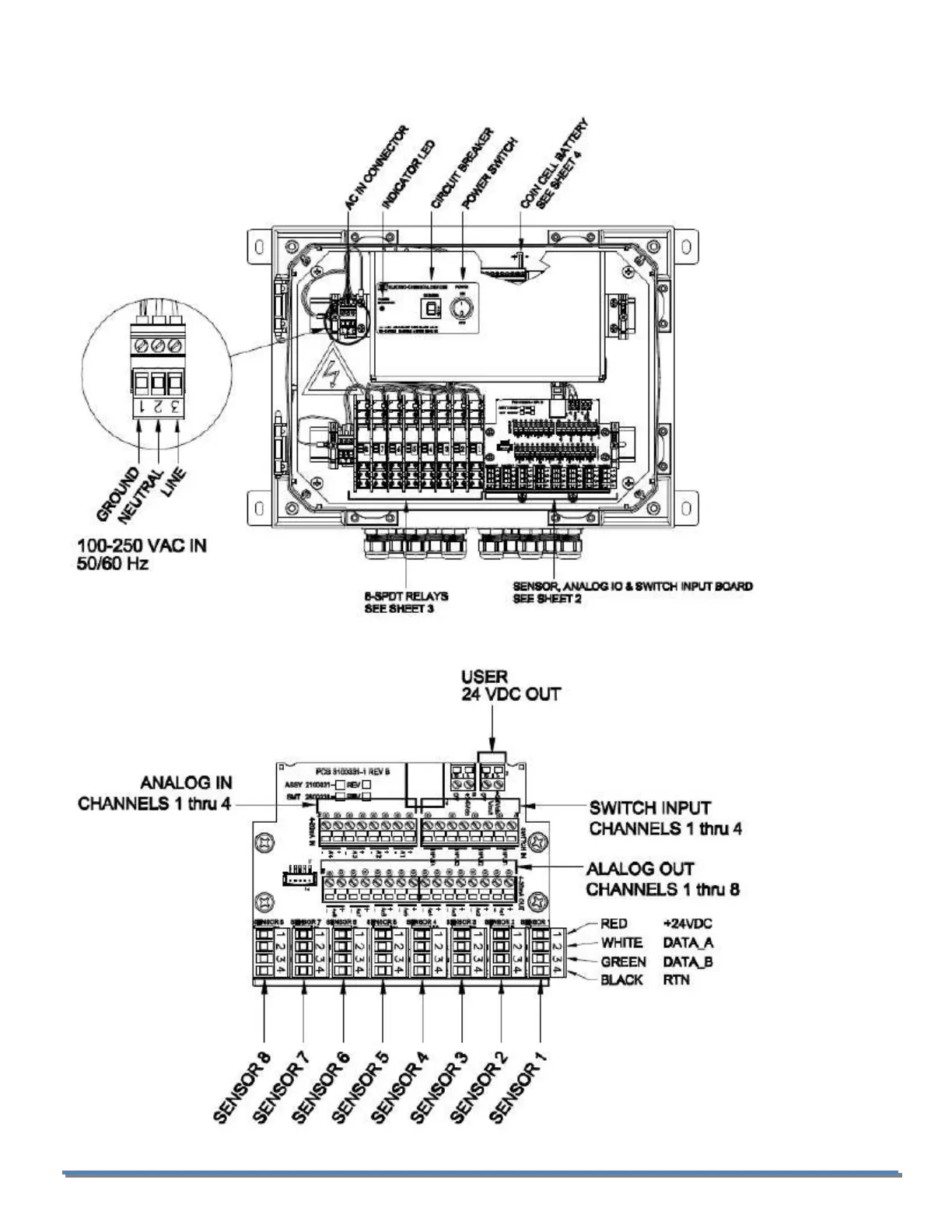

Figure 2.4.4.1
- 110-
250 VAC wiring
diagram
Figure 2.4.4.2
- 4-Wir
e Transmitter,
24VDC or /110
/22 VAC, Sensor 1-8, Analog
Output, Swit
ch Input, Anal
og Input
24
26
Table of Contents
ABLE of ONTENTS Preface
2
Symbols Used in Manual
3
Table of Contents
4
Terms and Conditions of Sale
7
Return Goods Policy
9
Unpacking the Instrument
10
1.0 General Description
11
Description
11
Chloride Ion Compensation
11
Optional Ph or Ammonium Measurement
11
Temperature Compensation
11
Cleaning and Maintenance
11
Features
12
HYDRA-DS Sensor Specifications
12
Measurement Range
12
Operating Temperature
12
Min/Max Flow Rate by the Sensor
12
Wetted Materials
12
Accuracy
12
Response Time
12
Electrode Life
12
Hydra Dimensional Drawing
13
Parts List
13
T80 Transmitter Specifications
14
LQ800 Controller Specifications
15
2.0 Installation
16
Unpacking
16
Assembly
16
Spray Cleaner
16
Immersion/Support Tube
16
Mounting
17
HYDRA Sensor Mounting
17
T80 Analyzer Mounting
17
LQ800 Controller Mounting
19
Wiring
20
HYDRA-DS to T80 Transmitter
20
HYDRA-DS to LQ800 Controller
21
T80 Transmitter Wiring
21
LQ800 Wiring
25
3.0 Operation
28
T80 Transmitter
28
LQ800 Controller
28
Screens
28
Menu Structure
28
Start up Guide
29
4.0 Calibration
30
Recommended Materials
30
Temperature Calibration
31
Single Point Calibration
31
Two Point Calibration
32
Chloride Ion Compensation
32
Calibration - T80 Transmitter
32
AUTO Calibration Description
32
Standardize Calibration Description
33
MANUAL Calibration Description
33
Calibration - LQ800 Transmitter
33
AUTO Calibration Description
33
Standardize Calibration Description
34
MANUAL Calibration Description
34
CAL (Calibration Menu)
34
5.0 Maintenance
35
Maintenance Schedule
35
Cleaning the Sensor
35
Replacing the Electrodes
35
6.0 Troubleshooting
36
7.0 Engineering Documentation
37
Specifications
37
Sensor
37
T80 Transmitter
37
Model Codes
39
Installation
40
Mounting
40
HYDRA-DS Sensor Dimensional Drawing
41
8.0 Ordering Information
42
Part Numbers/Model Numbers
42
Accessories
42
Calibration Solutions
42
Spare Parts
42
Appendix
43
Auto Cal Buffer Tables
43
T80 HART Menu
43
MODBUS RTU Register Listing
45
