ASSEMBLY INSTRUCTION
Note: Do not plug in power socket before installation completes; Do not remove bands
securing running deck to main frame until treadmill is in desired assembly location. Doing
so could result in injury.

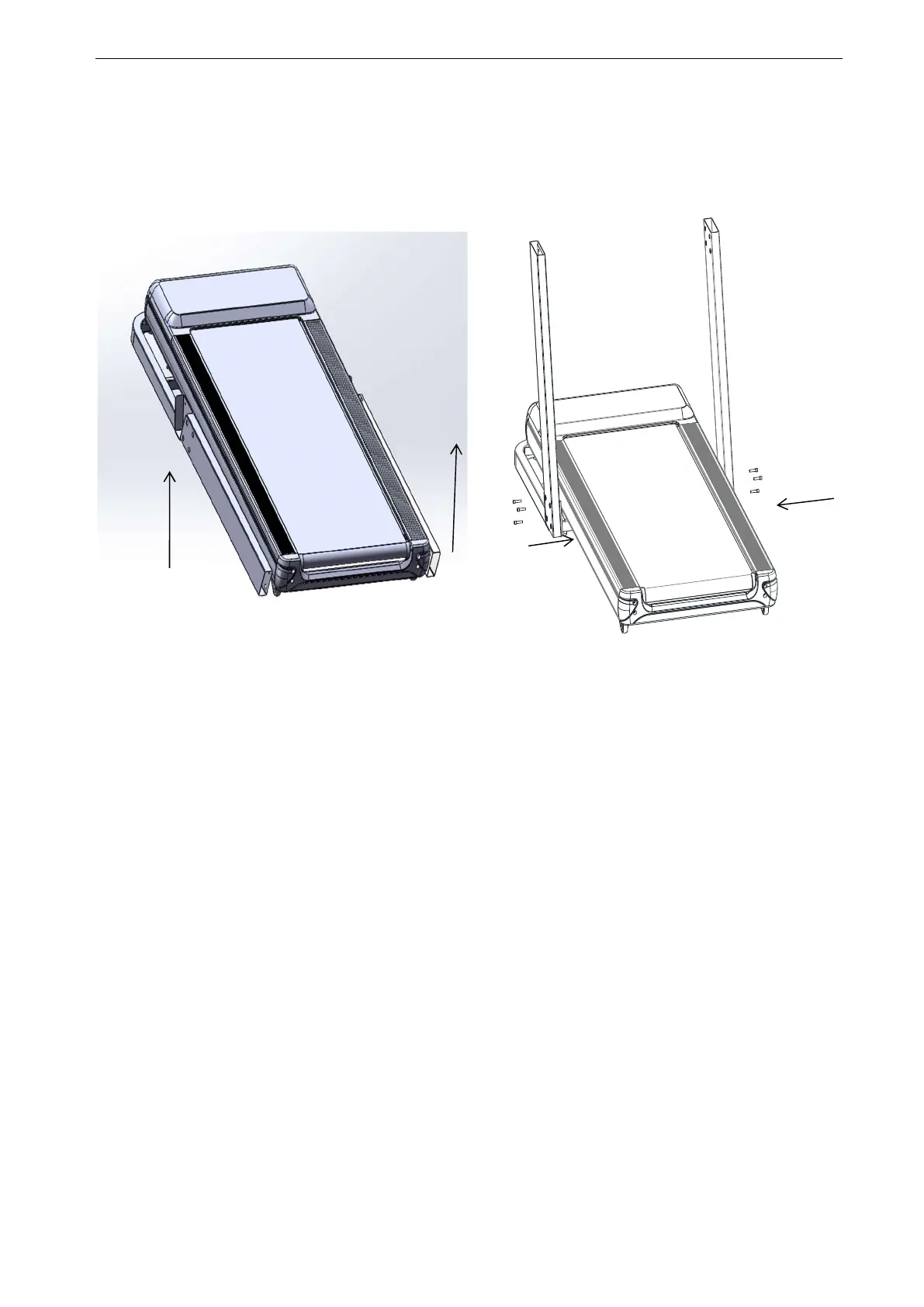

Step 1: Take out the main frame and display from box and put it on the flat
floor (As shown). The uprights are attached to the main frame already, only
lift both uprights up and lock 6 M8x35 Allen socket head full thread bolt, but
don’t tighten them.
