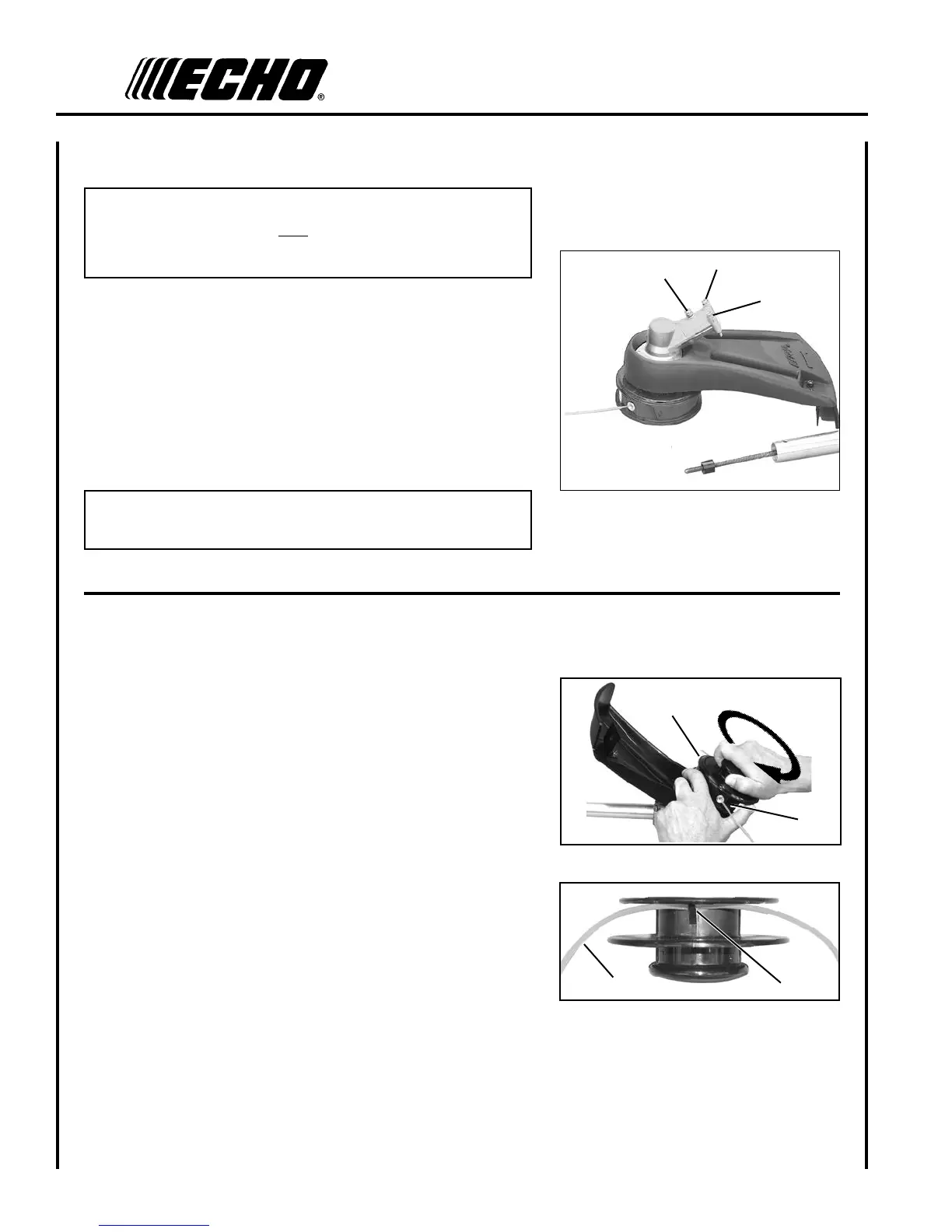

Drive Shaft (Lower)
IMPORTANT
Lower and upper drive shaft must be lubricated with high tem-
perature automotive grease every 25 hours of operation, otherwise
drive shaft assembly overheating and failure can result.
1. Loosen two (2) screws (B) and remove center locating screw (C).
Pull gear box and shield from drive shaft housing.
2. Pull exible cable from the drive shaft housing, wipe clean and
re-coat with a thin coating [15 ml (1/2 oz.)] of grease.
3. Slide the exible cable back in the drive housing. DO NOT get
dirt on the ex cable.
4. Install the gear housing and shield assembly.
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
B
C
D
nylon lIne replaCemenT
1. Do not push spool in. Hold drum (A) and turn spool (B) clockwise
until peg clicks and disappears from hole. Pull spool out of drum.
2. Use one piece of new nylon line (C) 6 m (20 ft.) long and thread
through the molded loop (D) on the spool. Pull line tight and adjust
so one end is 15 cm (6 in.) longer than the other.
D
C
B
A
