17
Before you start

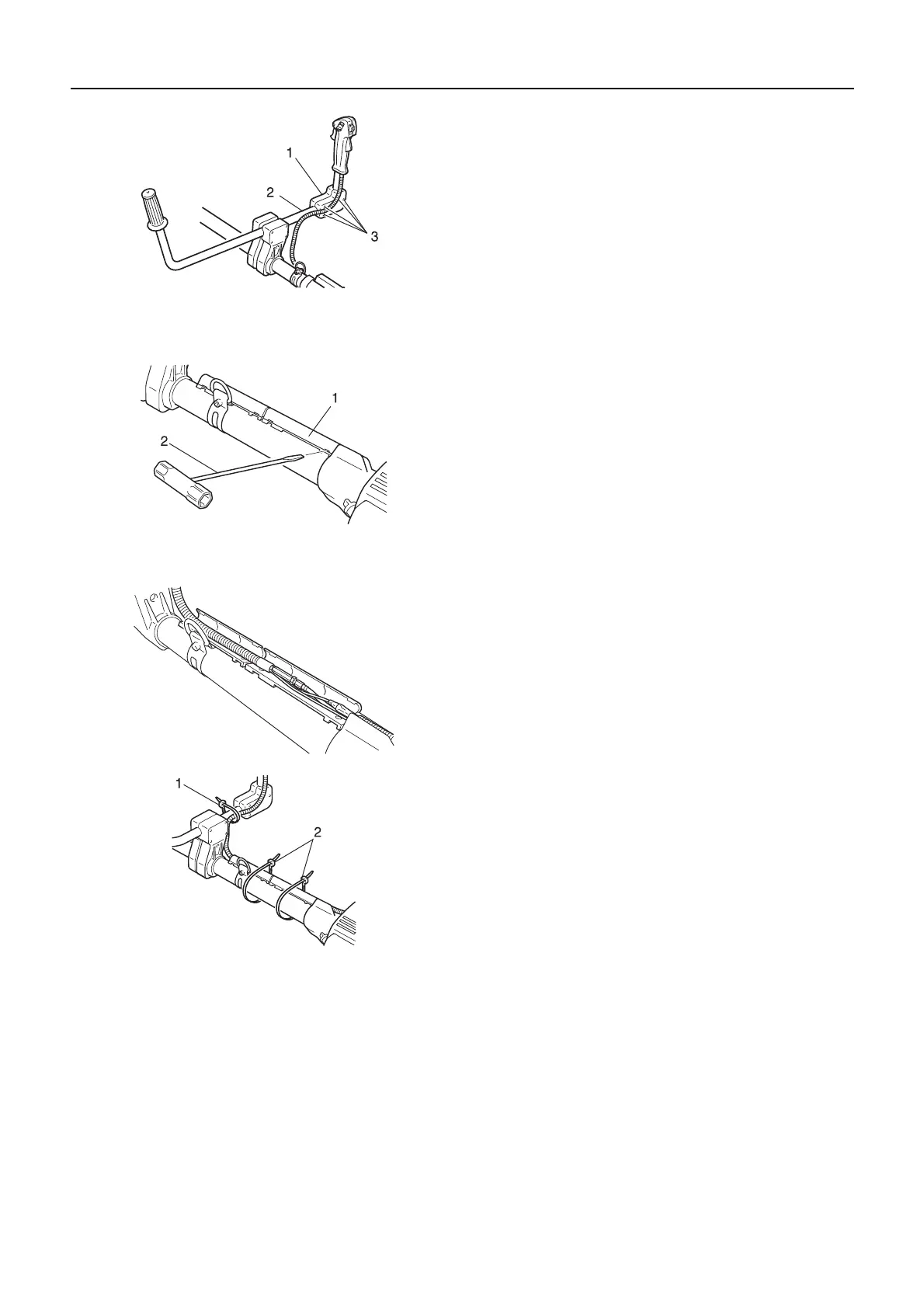

Install the left handle in the bracket.
Position the handle in comfortable operating position and
tighten bolts (M5×25).
Using a socket wrench, open the cable guide cover.
Place the throttle cable inside the cable guide.
Close the cover paying attention not to pinch the lead wire.
Fix the throttle cable to the right handle with the band (short).
Hold the cable guide with the bands (long) to prevent it from
opening.
1. Bracket
2. Left handle
3. Bolt M5×25
1. Cable guide 2. Socket wrench
1. Band (short) 2. Band (long)
