CS-350WES
22
IGNITION SYSTEM
3-11 Replacing flywheel (continued)

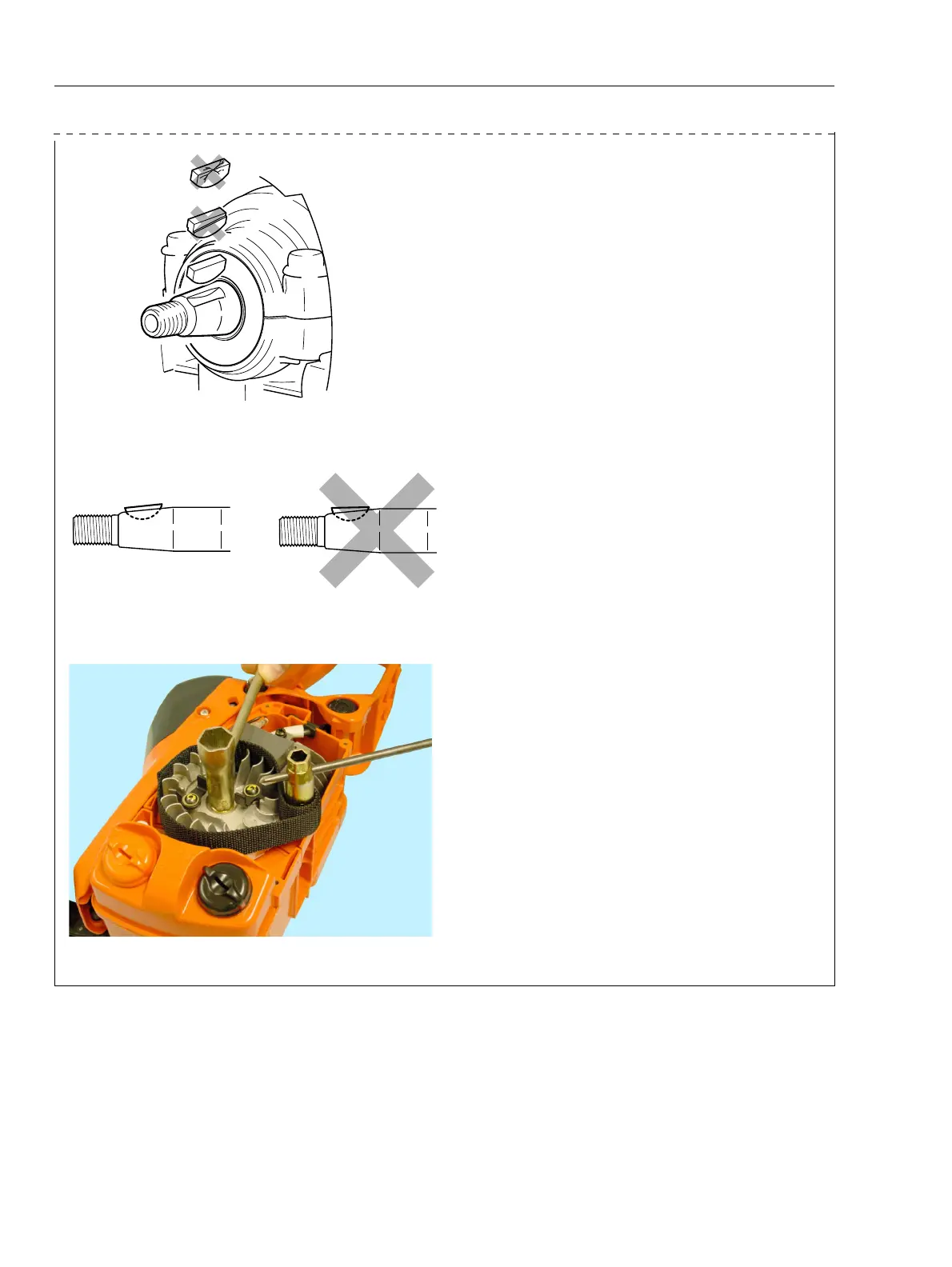

7. Check woodruff key whether defective or sheared.
Replace as required.
8. Wipe off oil from taper part of crankshaft before
assembling flywheel.
9. lnstall woodruff key into key groove as shown.
10. Re-install starter pawls and all other removed
parts on flywheel.
11. Aligning flywheel key groove with woodruff key
on crankshaft, install flywheel and fasten flywheel
nut.
To Next Page
