Echo CS-620P User Manual

4
CS-620P

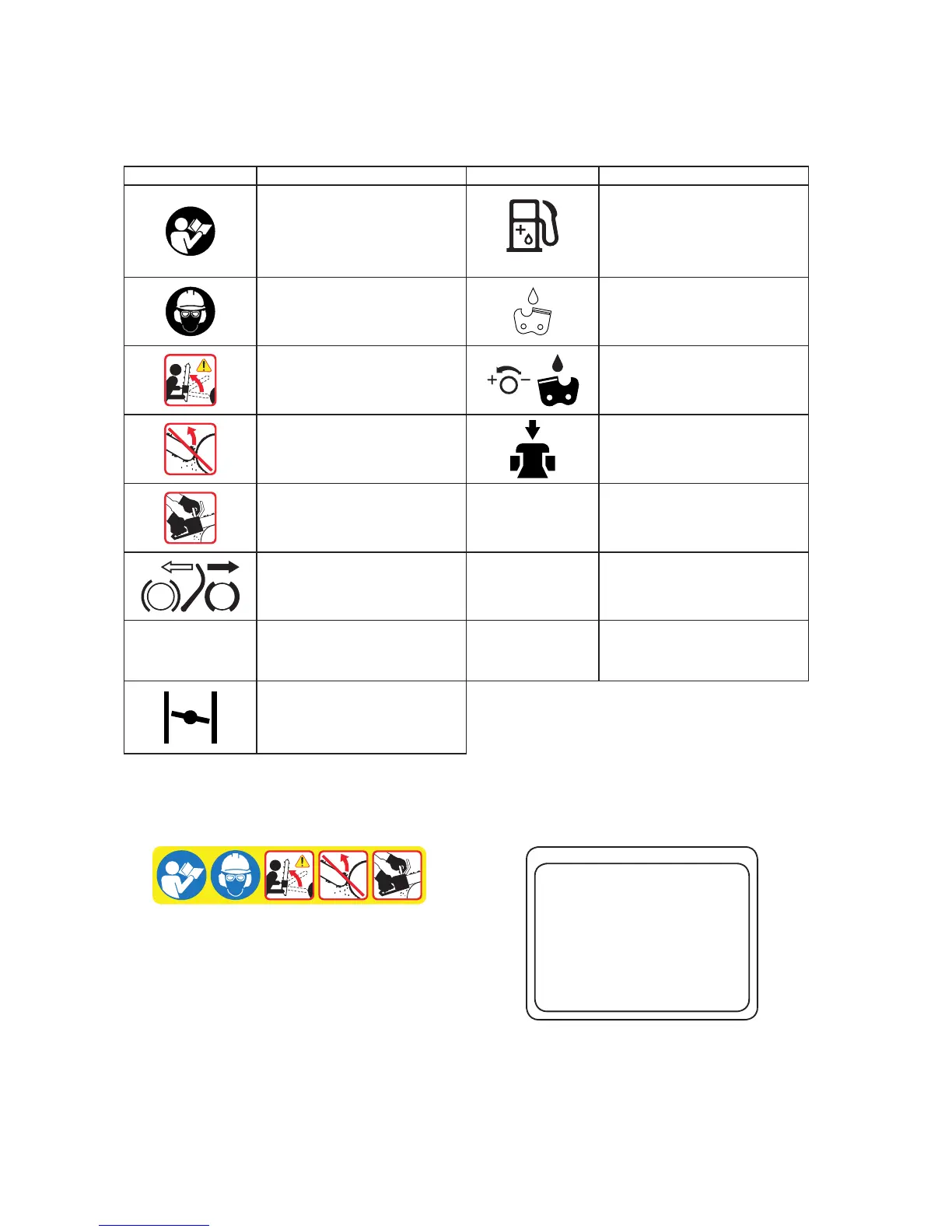

SYMBOL FORM
Locate this safety decal on your unit. The complete
unit illustration found in the “NOMENCLATURE OF
PARTS” section will help you locate them.
Make sure the decal is legible and that you
understand and follow the instructions on it. If a
decal cannot be read, a new one can be ordered
from your ECHO dealer.
DECALS
Part Number X524-005770Part Number X505-006660
Symbol form/shape Symbol description/application Symbol form/shape Symbol description/application
WARNING!!
Read and follow all safety
precaution in the instruction
manual. Failure to follow
instructions could result in
serious personal injury.
Oil and gasoline mixture
Wear eyes, ears and head
protection
Chain oil fill
Tip contact may cause the
guide bar to move suddenly
upward and backward, which
may cause serious injury
Chain oiler adjustment
Contact of the guide bar tip
with any object should be
avoided
Decompression device
Both of the operator’s hands
must be used to operate the
chain saw
L
Carburetor adjustment
- Low speed mixture
Chain brake operation
H
Carburetor adjustment
- High speed mixture
STOP
Emergency stop
T
Carburetor adjustment
- Idle speed
Choke control “Cold Start”
position (choke closed)
REPLACEMENT BAR AND CHAIN
GUIDE BAR* CHAIN*
PART NO. PART NO.
16” 16D0PS3860 72LPX60CQ
18” 18D0PS3866 72LPX66CQ
20” 20D0PS3870 72LPX70CQ
24” 24D0PS3881 72LPX81CQ
27” 27D0PS3893 72LPX93CQ
*Or equivalent
Note:
There may be other replacement
components for achieving kickback
protection. For details, please refer
to the chain and bar combination
sheet shown in the instruction manual.

Echo CS-620P Specifications

General

Engine Displacement	59.8 cc
Oil Tank Capacity	300 ml
Weight	6.2 kg
Chain Pitch	3/8 in
Engine Power	3.3 kW
Power Output	4.4 bhp
Bar Length	20 in
Bar Length Options	16 in, 18 in, 20 in
Weight (without bar and chain)	6.2 kg
Chain Gauge	0.050 in
Oil Capacity	300 ml
