Description
Description

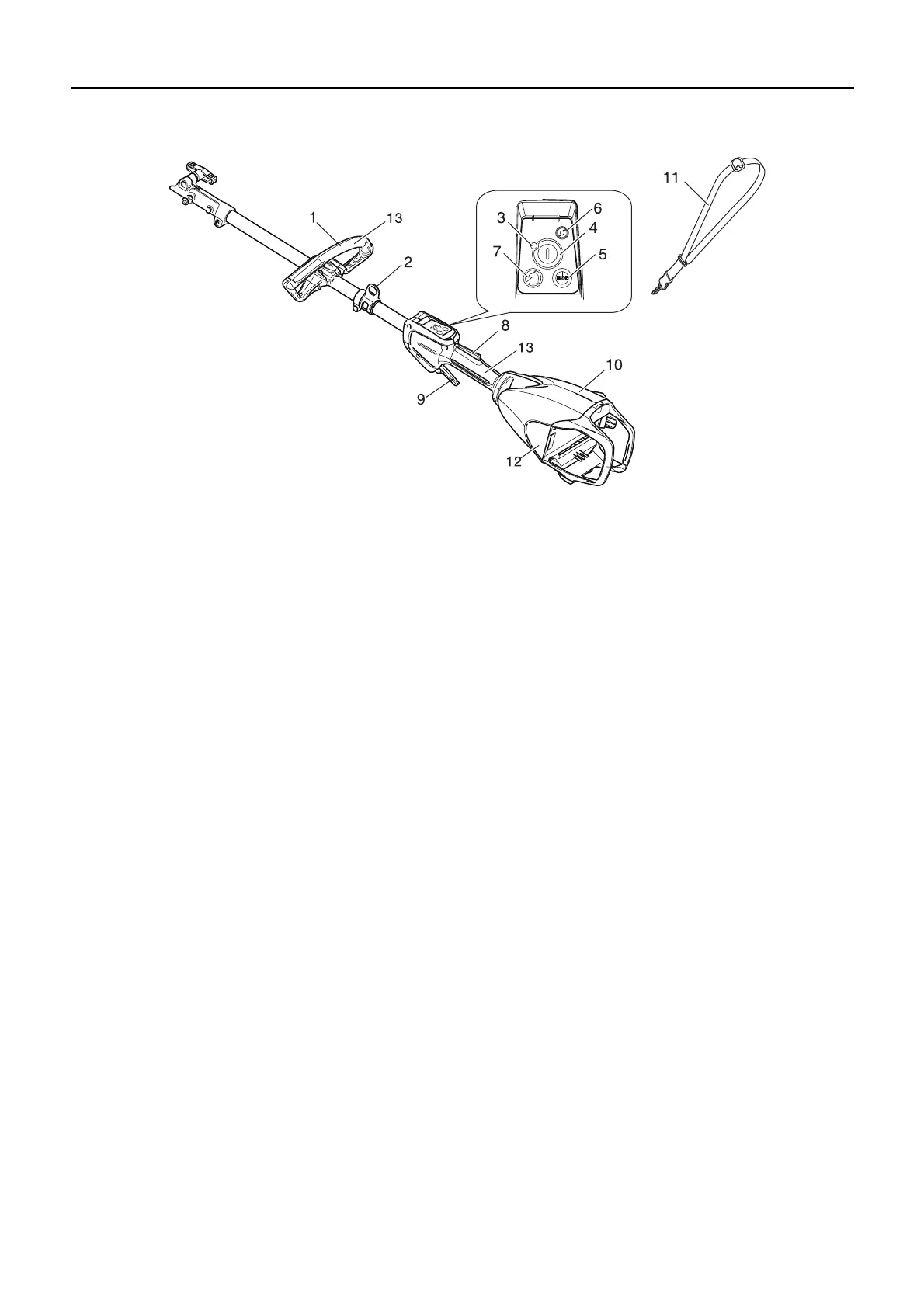

1. Loop-handle - Grip for Left Hand.
2. Suspension point - Device on which the harness can
be hooked.
3. Power indicator LED - Remains illuminated when pow-
er to unit is turned on. Turns off when power to unit is off.
4. Power button - Press once to turn on power to the unit,
power indicator LED illuminates. Press once more to
turn power off to unit, power indicator LED turns off.
5. Mode button - Change the operation mode.
6. Mode indicator LED
7. Speed button - Change the three step maximum
speed.
8. Trigger switch lockout - Locks trigger switch in the off
position until you have a proper grip with your right hand
around the handle.
9. Trigger switch - Activated by the operator's finger for
turning the motor on.
10. Power head – Houses Motor and Battery.
11. Shoulder harness - An adjustable strap to suspend
unit.
12. Type and serial number
13. Gripping surface
