GT-2150/2150S
11
12
7
1
2
5
6
8
9
4
3
10
13

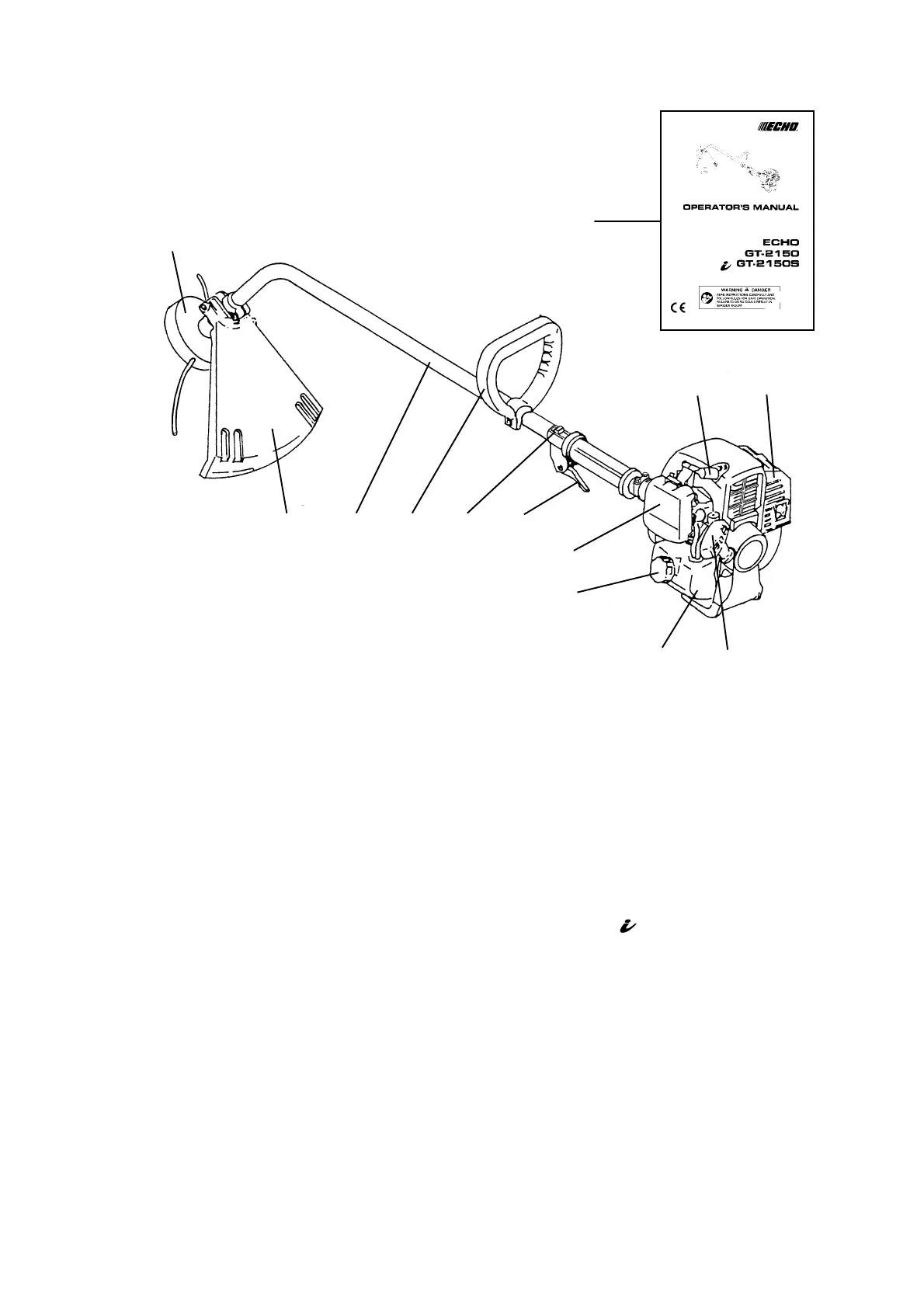

DESCRIPTION
1 OPERATOR’S MANUAL - Included with unit.
Read before operation and keep for future
reference to learn proper, safe operating
techniques.
2 CUTTING ATTACHMENT - Nylon line head for
cutting grass and weed.
3 SHIELD - Device to protect the operator from
accidental contact with the cutting head and
thrown objects.
4 SHAFT TUBE - Part of the unit that provides a
casing for power transmission shaft.
5 LOOP-HANDLE - Light weight, suitable for
Nylon line trimmer only.
6 IGNITION SWITCH - “Slide Switch” mounted
on top of the Throttle Trigger Housing, move
switch forward to RUN, backward to STOP
position.
7 THROTTLE TRIGGER - Activated by the
operator’s finger for controlling the engine
speed.
8 AIR CLEANER COVER - Covers air filter.
9 FUEL TANK CAP - For closing the fuel tank.
10 FUEL TANK - Contains fuel and fuel filter.
11 STARTER HANDLE - Pull handle to start the
engine.(GT-2150S ; START)
12 SILENCER COVER - Cover the silencer not to
make operator touch to hot surface of silencer.
13 SPARK PLUG
