GT-2150/2150S

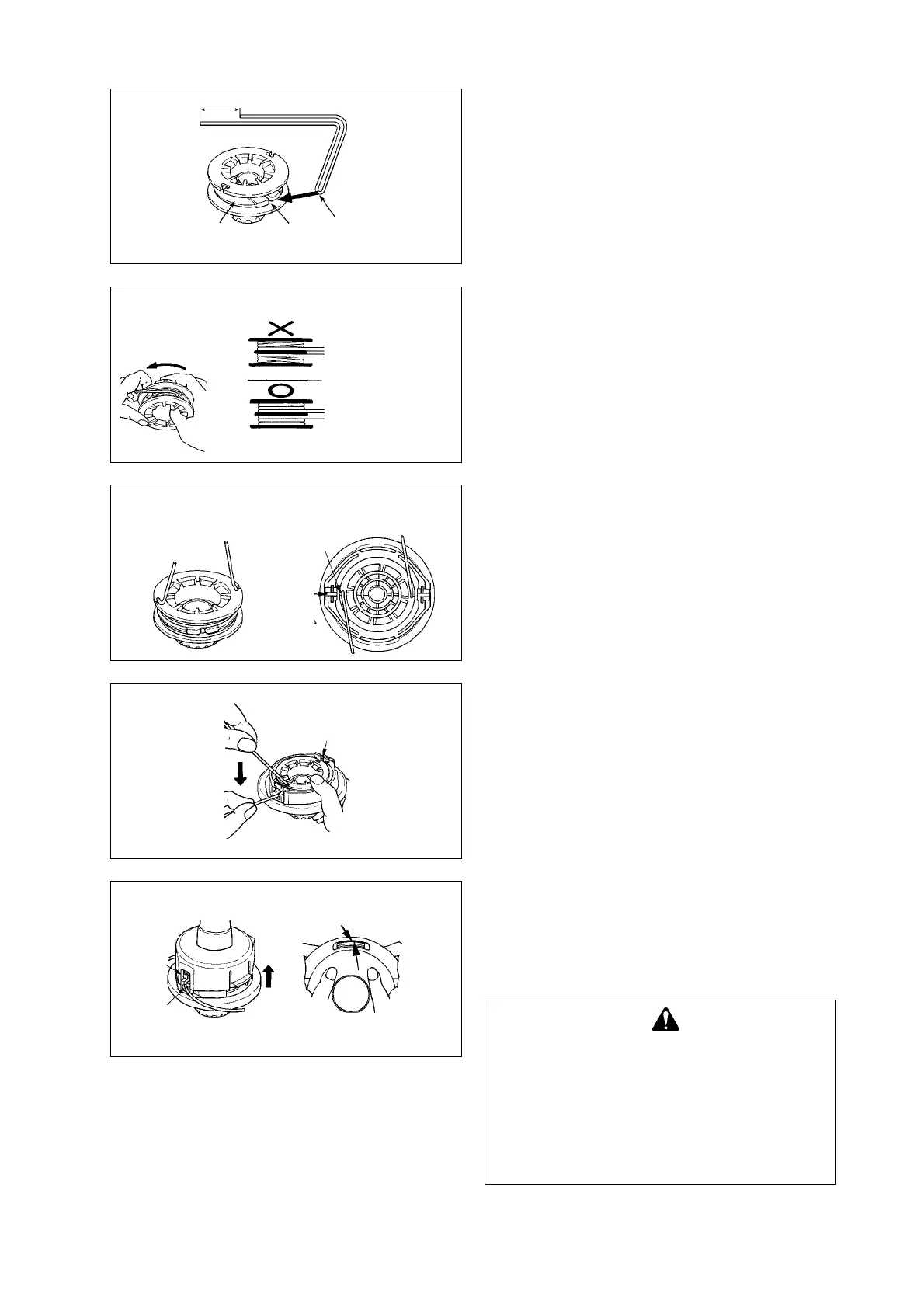

(4) Bend the line at the point 12 cm away from the
middle of whole length and hook the bent portion
into the “notch” of the intermediate separator.
(5) Wind the line firmly into groove of the spool
following “ winding direction for the line RH”.
(6) When the line is wound to the end hook both line
ends into respective notch of spool for retaining
tentatively the line while leaving line ends
approximately 10 cm beyond notch.
(7) Align notches of spool for the line with grooves of
eyelets and fit spool into cover.
(8) Pull out the line from cover.
(A) Remove the line from “respective notch of
spool”, and (B) pass it through “groove of
respective eyelet”.
(9) Fit cover and housing together.
(C) Align “eyelets” of cover with “recesses” of
housing, and (D) press pawls of housing into
respective window of cover until the pawls are
firmly fitted into the windows.
MAKE SURE EACH OUTER PERIPHERY OF
PAWLS OF HOUSING SPREADS ALMOST
FULLY UP TO THE OUTER PERIPHERY OF
RESPECTIVE WINDOW OF COVER.
IF THEY ARE LOOSELY FITTED AND THE
CUTTING HEAD IS TURNED, COVER OR
INSIDE COMPONENTS CAN FLY OFF WHICH
IS DANGEROUS.
Intermediate separator
Bent portion
12 cm
Notch for Nylon line
Winding direction
for the line.
If wound unfirmly,
the line loosens.
Wind firmly into
respective groove.
(4)
(5)
(6) (7)
(8)
(9)
(A)
(B)
(C)
(D)
