Echo HCR-1510 User Manual

HCR-1510
6
SERVICE INFORMATION

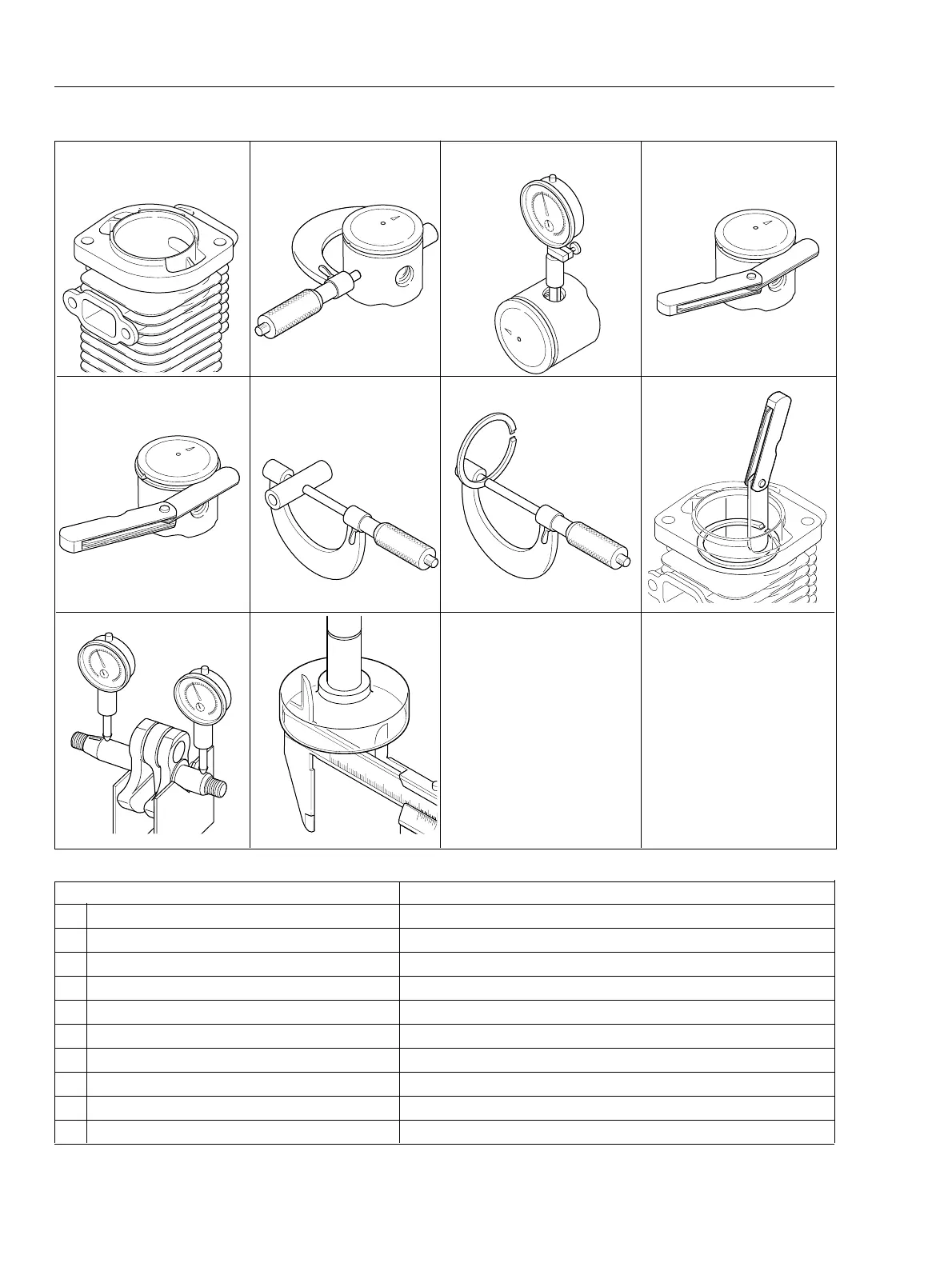

1-5 Service limits
Description mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 32.10 (1.264)
C Piston pin bore Max. 8.030 (0.3161)
D Piston ring groove Max. 1.6 (0.063)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 7.970 (0.3138)
G Piston ring width Min. 1.45 (0.057)
H Piston ring end gap Max. 0.5 (0.02)
K Crankshaft runout Max. 0.05 (0.002)
L Clutch drum bore Max. 51.5 (2.03)
5K016 5K042
5K202
0
5
10
1
23
4
5
6
7
8
9
10
11
Servicelimits_HCR_1510
5K171
ABCD
EFGH
KL
