Echo HCR-1510 User Manual

7
SERVICE INFORMATION
HCR-1510
a
20
20
40
40
60
60
80
80
120
120
140
140
160
160
180
180
20
20
100
100

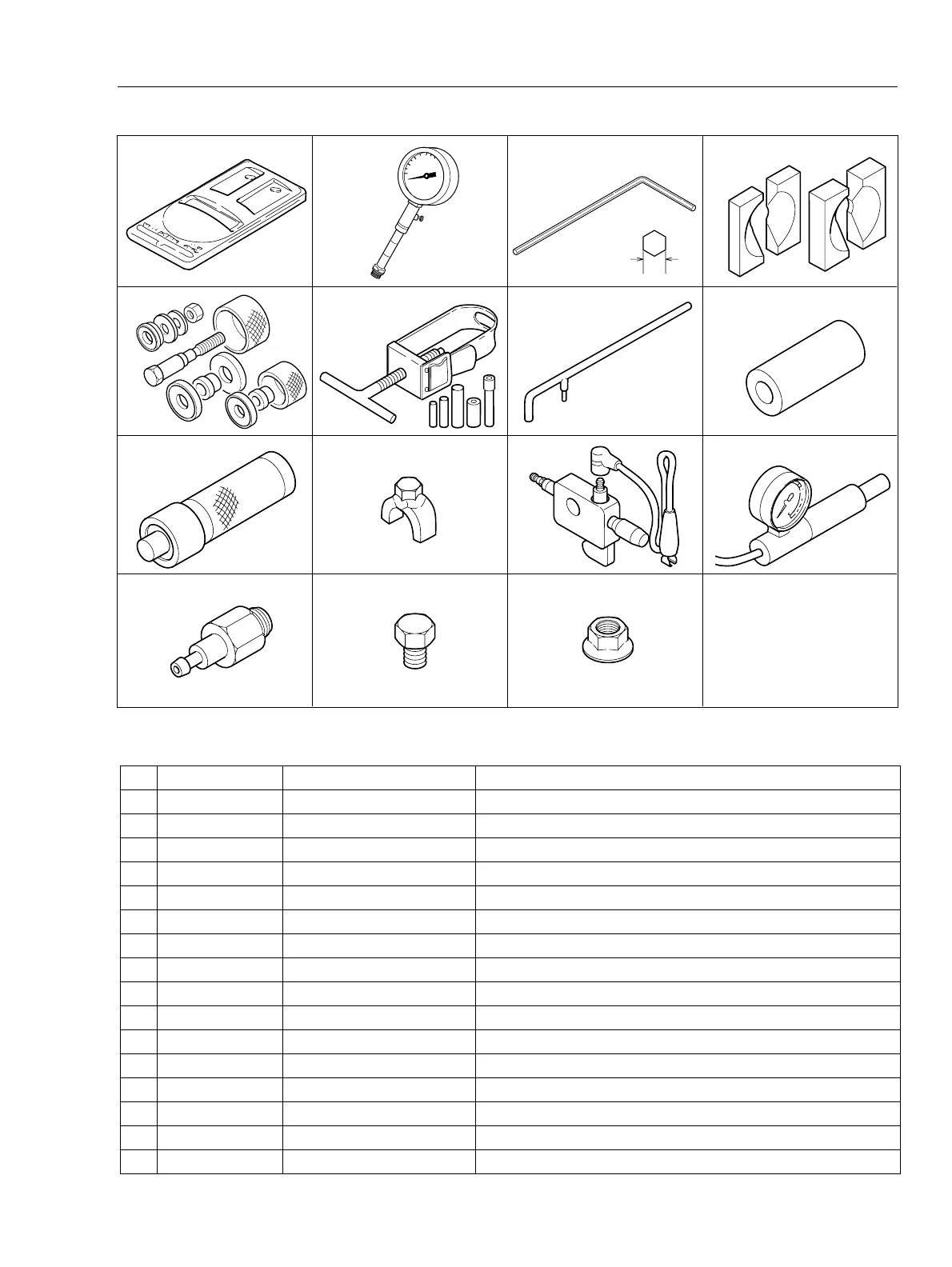

Key Part Number Description Used for:
1 897801-33330 Tachometer (PET-1000) Measuring engine speed to adjust carburettor
2 91007 Compression gauge Measuring cylinder compression
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
4 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolts (M4)
5 897701-06030 Bearing wedge Removing ball bearings on crankshaft
6 897701-14732 Bearing tool Removing and installing crankcase bearings
7 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter)
8 897712-07930 2-pin wrench Removing and installing pawl carrier
9 897714-24330 Oil seal tool Installing crankcase oil seals
10 897718-02830 Bearing tool Installing clutch drum ball bearing in gear case
11 897731-04920 Clutch tool Removing and installing clutch assembly
12 897800-79931 Spark tester Checking ignition system
13 897803-30131 Pressure tester Checking carburettor and crankcase leakages
14 897835-16131 Pressure connector Checking crankcase and cylinder leakages
15 900100-08008 Bolt Removing magneto rotor (flywheel)
16 433019-12330 Flange nut Removing magneto rotor (flywheel)
1-6 Special tools
13 : a=4mm
4 : a=3mm
789
10 11 12
13
14
15
16
6
25
