PB-250LN ASSEMBLY
ASSEMBLY
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

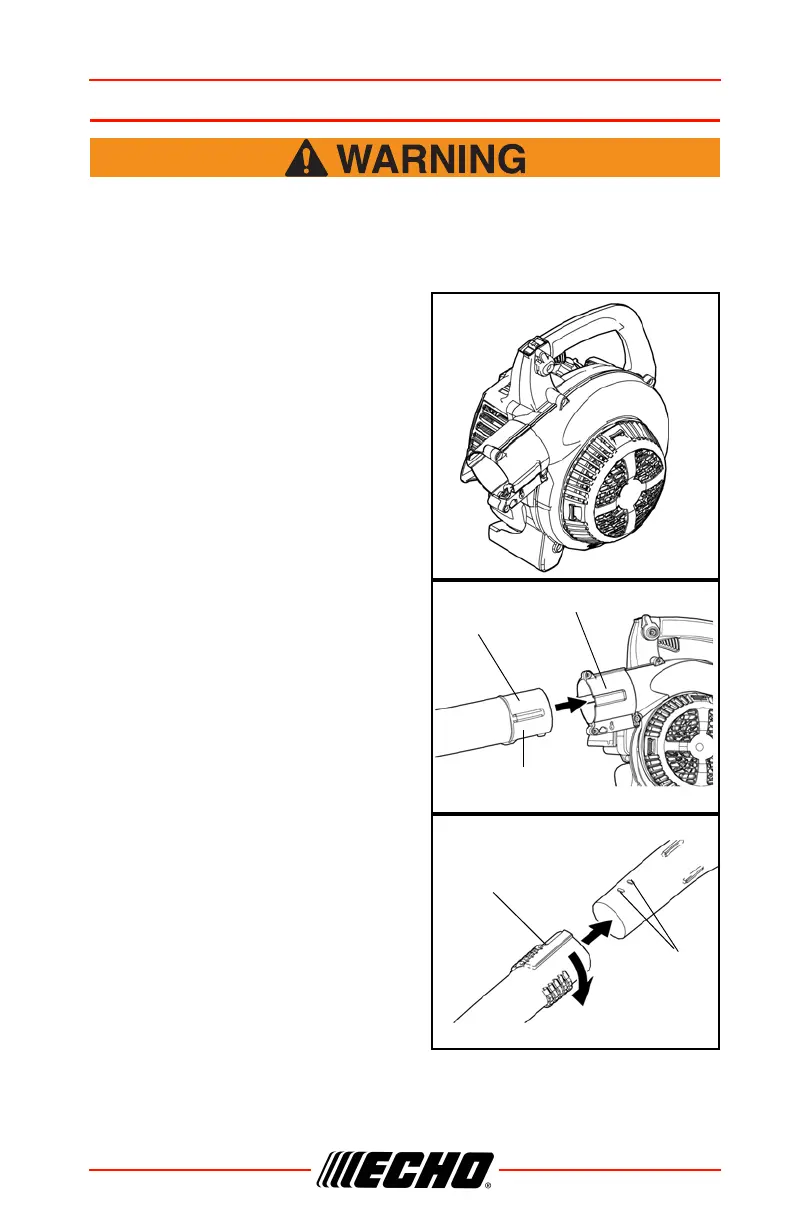

Install Blower Pipes
1. Stand unit upright on blower base.
2. Align locking ribs (A) on upper
blower pipe with recesses (B) in fan
case. Assure short locking rib (C)
faces downward. Slide upper blower
pipe into fan case until a clicking
sound is heard.
3. Align tabs (D) with grooves (E) and
slide lower blower pipe over upper
pipe until there is light resistance. Do
not force connection.
4. Hold upper pipe, and turn lower pipe
clockwise, engaging positive locking
channels until connection is firm. Do
not force connection.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking
system allows pipes to be
tightened. If loosening occurs, remove lower straight pipe, and
install according to instructions 3 & 4.
