OPERATION PB-250LN
18 X7501186001
© 2/2016 ECHO Inc.

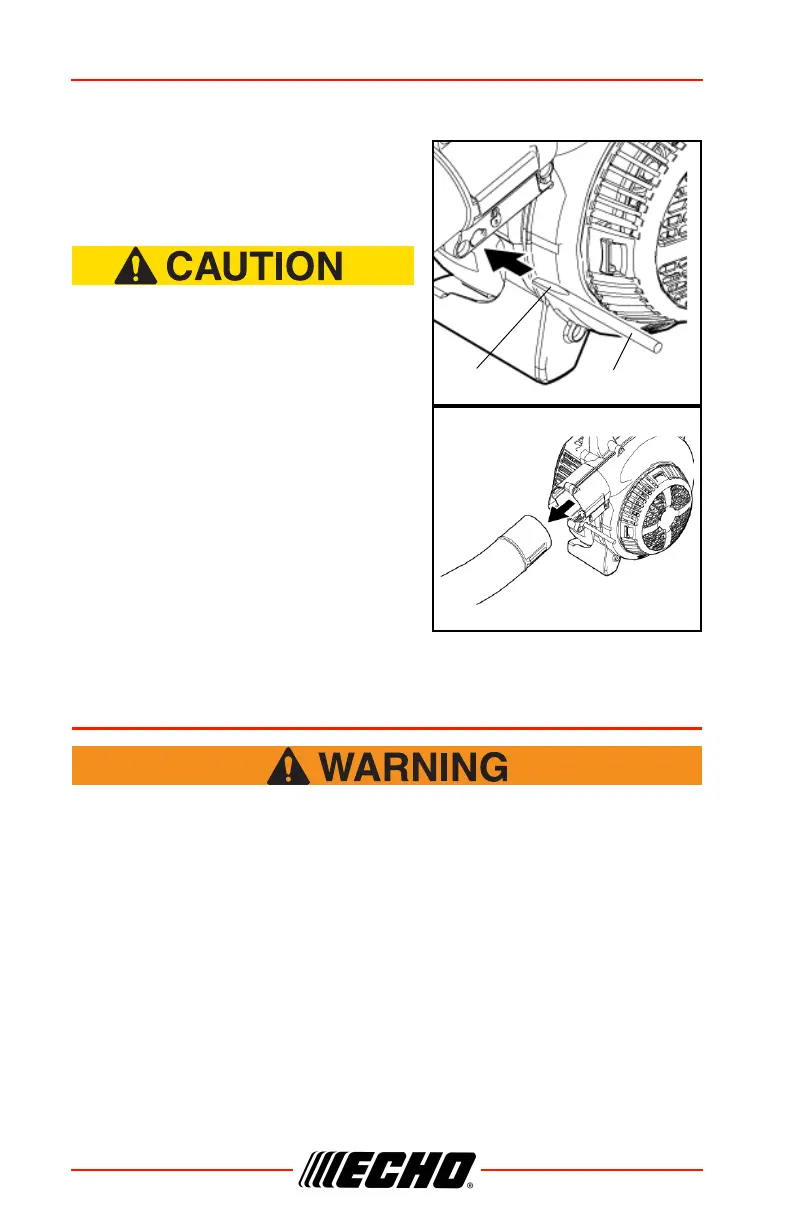

Remove Blower Pipes
1. Insert screwdriver (F) into hole located
near lock symbol (G) to release pipe
lock.
Screwdriver tip may stick out
opposite side of locking hole.
2. Pull pipe out of fan case.
3. Remove screwdriver.
OPERATION
Moving parts can amputate fingers or cause severe injuries. Keep
hands, clothing and loose objects away from all openings. Always
stop engine, disconnect spark plug, and make sure all moving
parts have come to a complete stop before removing obstructions,
clearing debris, or servicing unit. Blower housing may contain
shredder blades and other sharp edges that can cause serious
injuries if touched, even if engine is off and blades are not moving.
Wear gloves to protect hands from sharp edges and hot surfaces.
