STARTER SYSTEM
PB-251

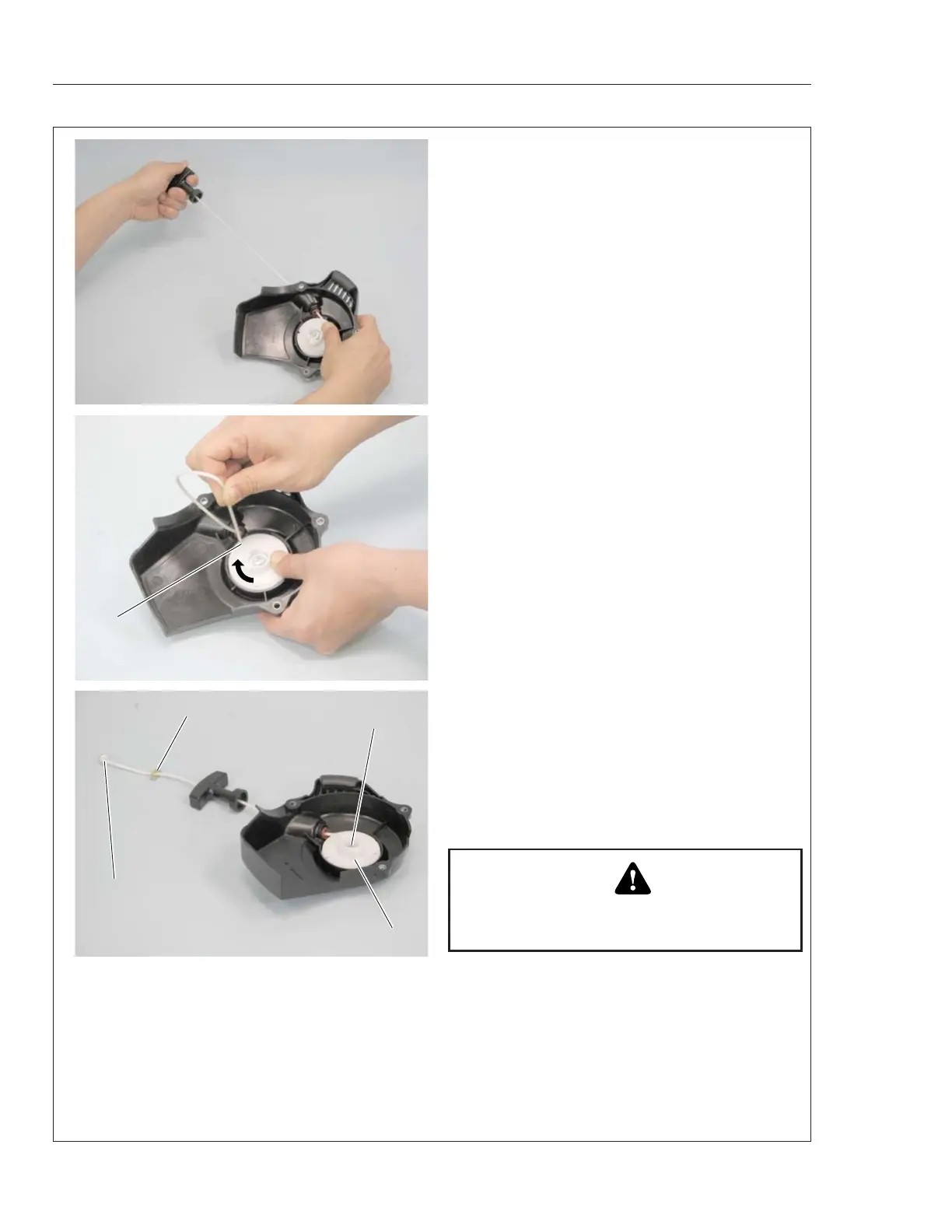

2-1 Removing starter drum and rope (continued)
3. Pull out starter rope about 30 centimeters (12in)
and hold starter drum with finger.
4. Pull out starter rope in starter case.
5. Rotate starter drum clockwise to releace tension
of rewind spring with the rope hooked at notch (A).
6. Pull out starter rope clip (B) and starter rope knot
(C) from starter grip.
7. Cut off or untie the knot (C).
8. Remove screw (D) and washer.
WARNING DANGER
Be careful when removing starter drum;
rewind spring may unwind unexpectedly.
9. Slowly, lift up starter drum (E) from starter case.
10. Unwind starter rope from starter drum. Remove
the knot from the end of rope, and remove rope from
drum.
(C)
(D)
(E)
(A)
(B)
To Next Page
