PB-251
ENGINE
48

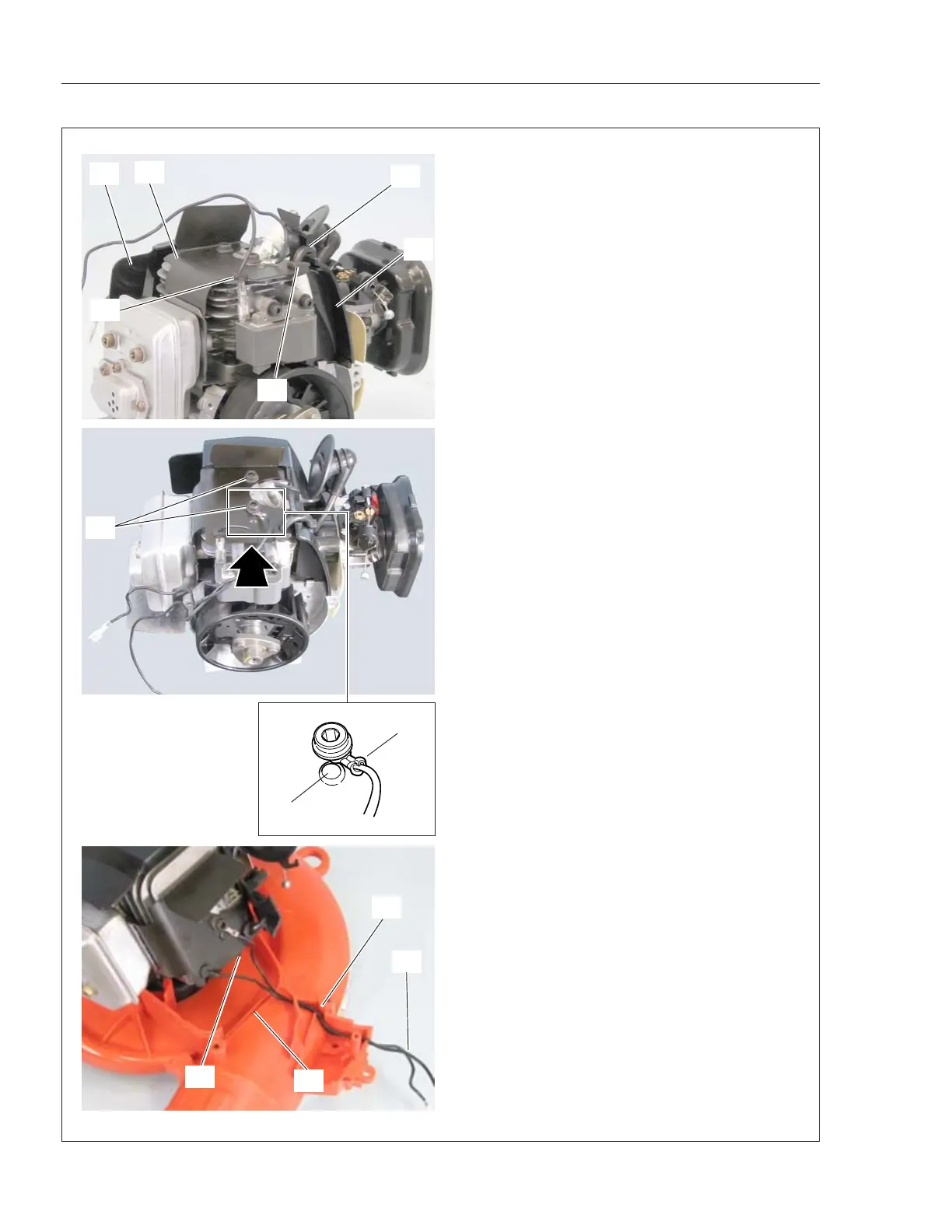

7-14 Installing engine to inner fan case
1. Install flywheel and fan hub to crankshaft (reffer
to “3-10 Checking flywheel and key”). Set pole shoe
air gaps (reffer to “3-9 Setting pole shoe air gaps”).
2. Install pawl carrier spacer (A) and pawl carrier to
engine (reffer to “2-5 Replacing starter pawl”).
3. Loosey install metal cylinder cover (B) and plas-
tic cylinder cover (C).
4. Assemble stop lead grommet (D), high tension
lead grommet (E) to metal engine cover as shown.
5. Assemble high tension lead (F) to plastic engine
cover.
6. Tighten metal cylinder cover bolts (B) while press-
ing metal cylinder cover towards engine starter side
as shown by the direction of the arrow.
NOTE: When tightening bolts, position ground lead
terminal (G) against stopper (H) of cylinder cover
as shown in illustration.
7. Install engine to inner fan case, together with fuel
tank.
NOTE: Install edge (I) of cylinder cover into groove
(J) of fan case. Put leads (K) in groove (L) of fan
case.
NOTE: Fuel tank cannot be Installed after engine is
installed.
(C)
(A)
(B)
(D)
(E)
(F)
(B)
(G)
(H)
(I)
(J)
(K)
(L)
