HANDLE AND CONTROL SYSTEM
PB-251
23

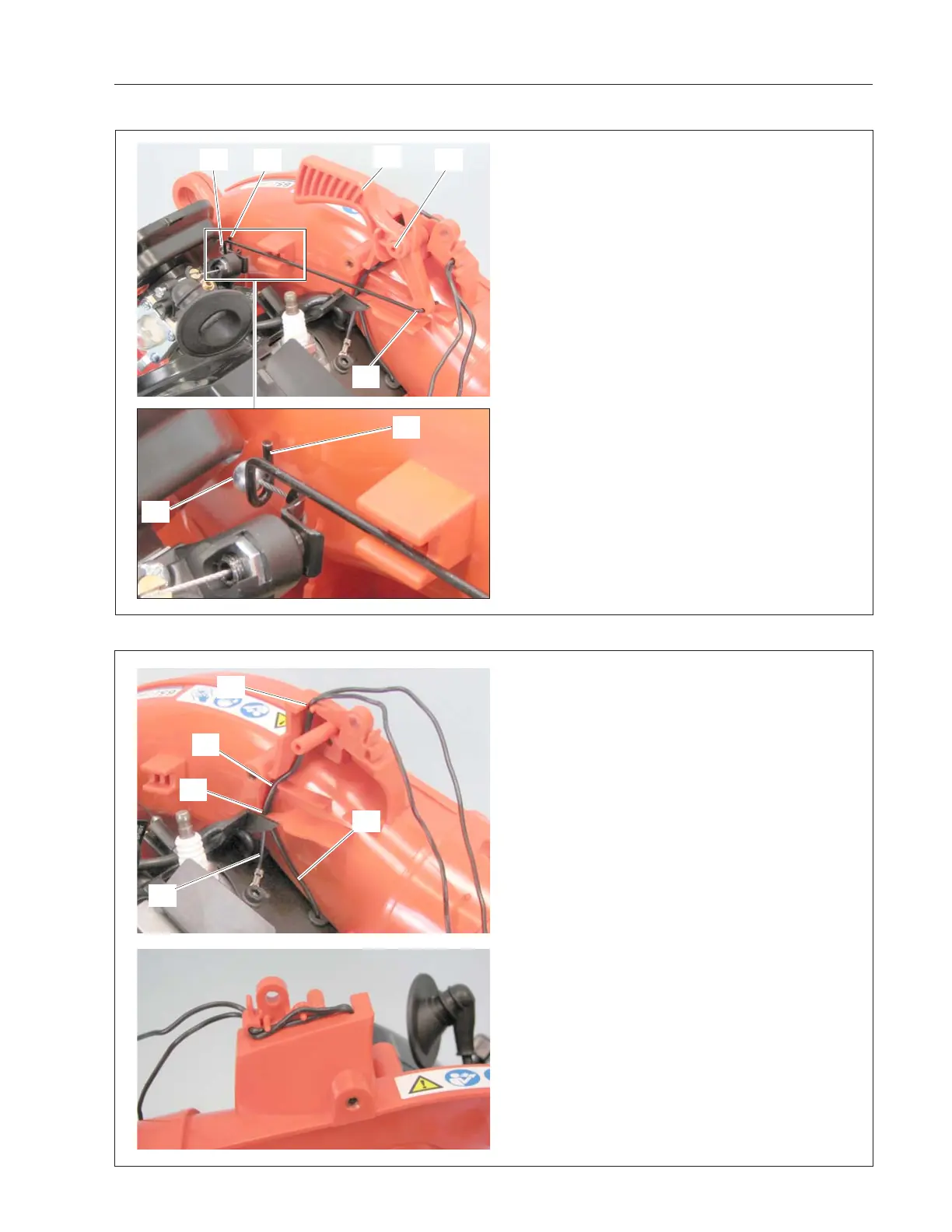

4-1 Disassembling handle and throttle control (continued)
4-2 Reassembling handle and throttle control
7. Pull out throttle rod end (F) from throttle trigger
(G). Remove another throttle rod end (H) from ball
end (I) of throttle cable.
8. Remove throttle trigger (G) from throttle trigger
post (J).
1. Make sure ground lead (A) and stop lead (B) are
put in fan case grooves (C), (D) and (E) as shown.
2. Install ground lead (A) and stop lead (B) to inner
fan case ribs as shown.
NOTE: Either one of ground lead and stop lead can
be upper.
(B)
(A)
(F)
(G)
(J)(H)
(I)
(I)
(H)
(C)
(D)
(E)
To Next Page
