Echo PB-251 Service Manual

STARTER SYSTEM
PB-251
7
2 STARTER SYSTEM

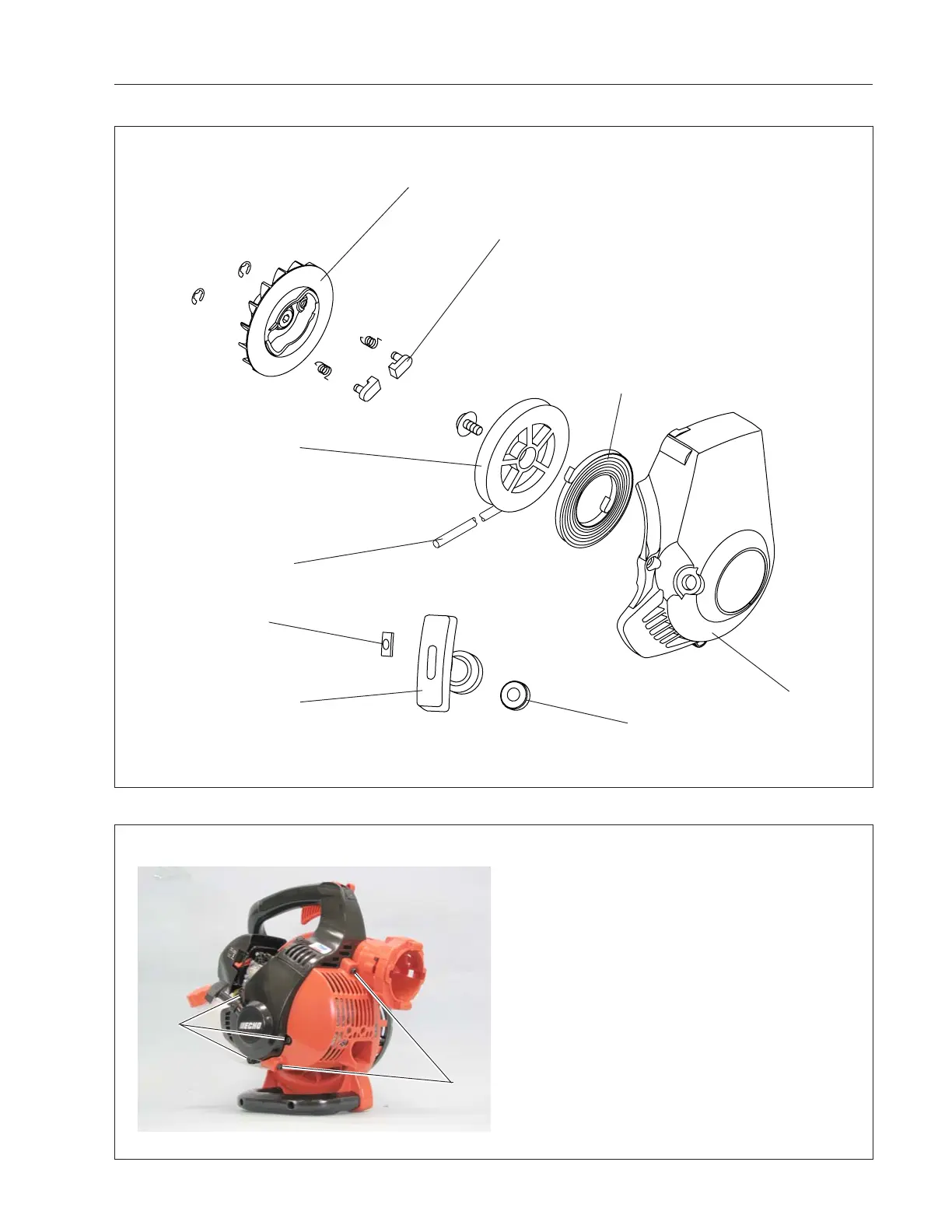

( A ) Pawl carrier
( B ) Starter pawl
( C ) Starter drum
( D ) Rewind spring
( E ) Starter case
( F ) Starter rope
(G ) Rope guide
( H ) Starter grip
( I ) Starter rope clip
2-1 Removing starter drum and rope
1. Remove two muffler cover bolts (A), and muffler
cover from engine body.
2. Remove three starter assembly bolts (B), and
starter assembly from engine body.
(C)
(D)
(E)
(F)
(A)
(B)
(G)
(H)
(I)
(A)
(B)
