HANDLE AND CONTROL SYSTEM
PB-251
22

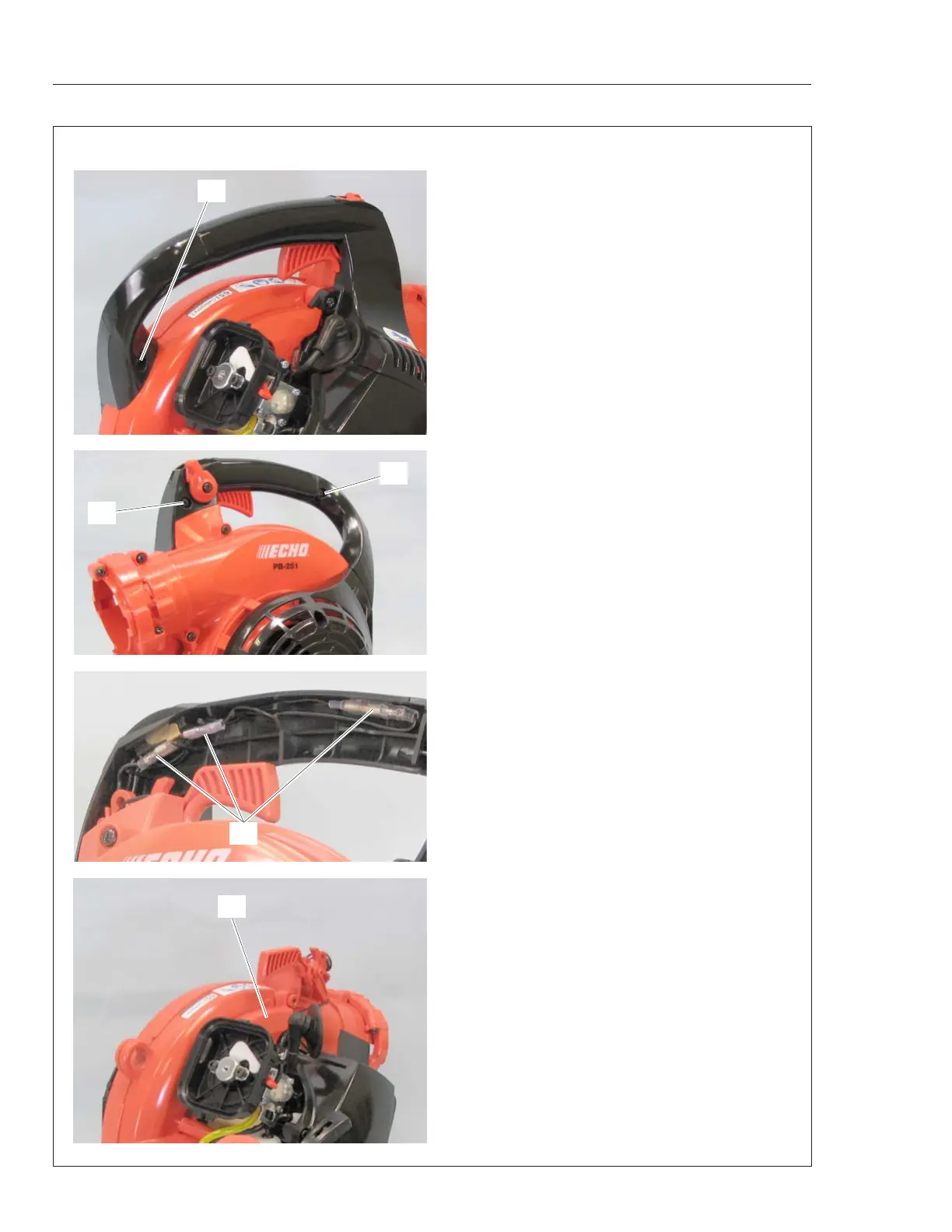

4-1 Disassembling handle and throttle control
1. Remove air cleaner cover and muffler cover.
2. Remove screw (A: M5x20) in order to remove
handle lid.
3. Remove screw (B: M5x25) and screw (C: M5x20).
Remove handle lid.
4. Disconnect couplers (D).
5. Pull out leads from ribs of handle. Remove handle.
6. Remove throttle cover (E).
(D)
(E)
(B)
(A)
(C)
