12
STARTER SYSTEM
PB-251
2-5 Replacing starter pawl (continued)

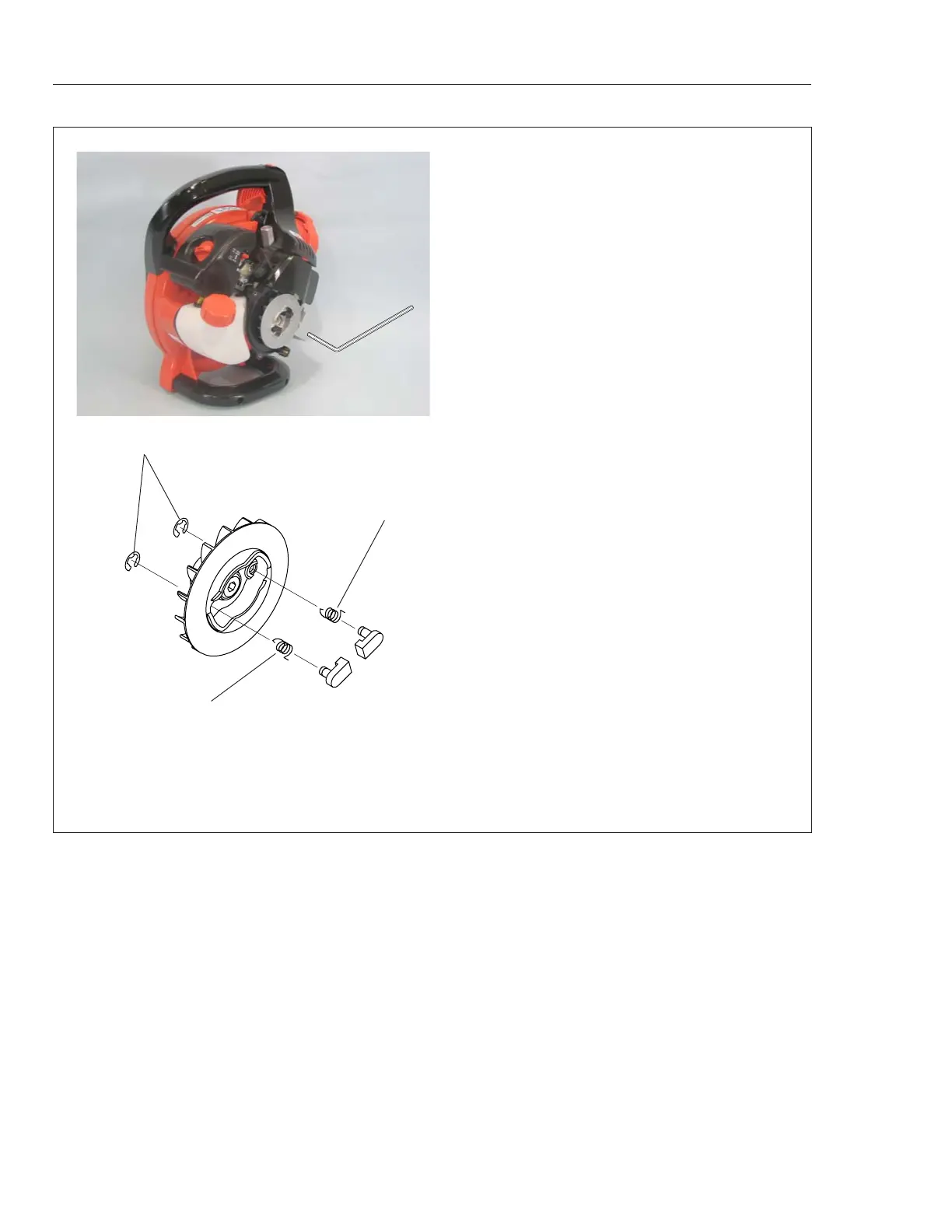

5. Remove pawl carrier counterclockwise with 6mm
L hexagonal wrench 895615-10860.
6. Remove E-ring(s) (A) from starter pawl(s).
7. Insert (new) spring(s) (B) to (new) starter pawl(s),
and push starter pawl(s) into the hole(s). Then, install
E-ring(s) as shown.
8. Install pawl carrier by hand tight temporarily to
crankshaft.
9. Tighten pawl carrier clockwise with 6mm L
hexagonal wrench 895615-10860.
10. Remove piston stopper 897537-30130 from
spark plug hole. Install spark plug and spark plug
cap.
11. Install starter assembly, and other remaining
parts.
(A)
(B)
(B)
