IGNITION SYSTEM
PB-251
18

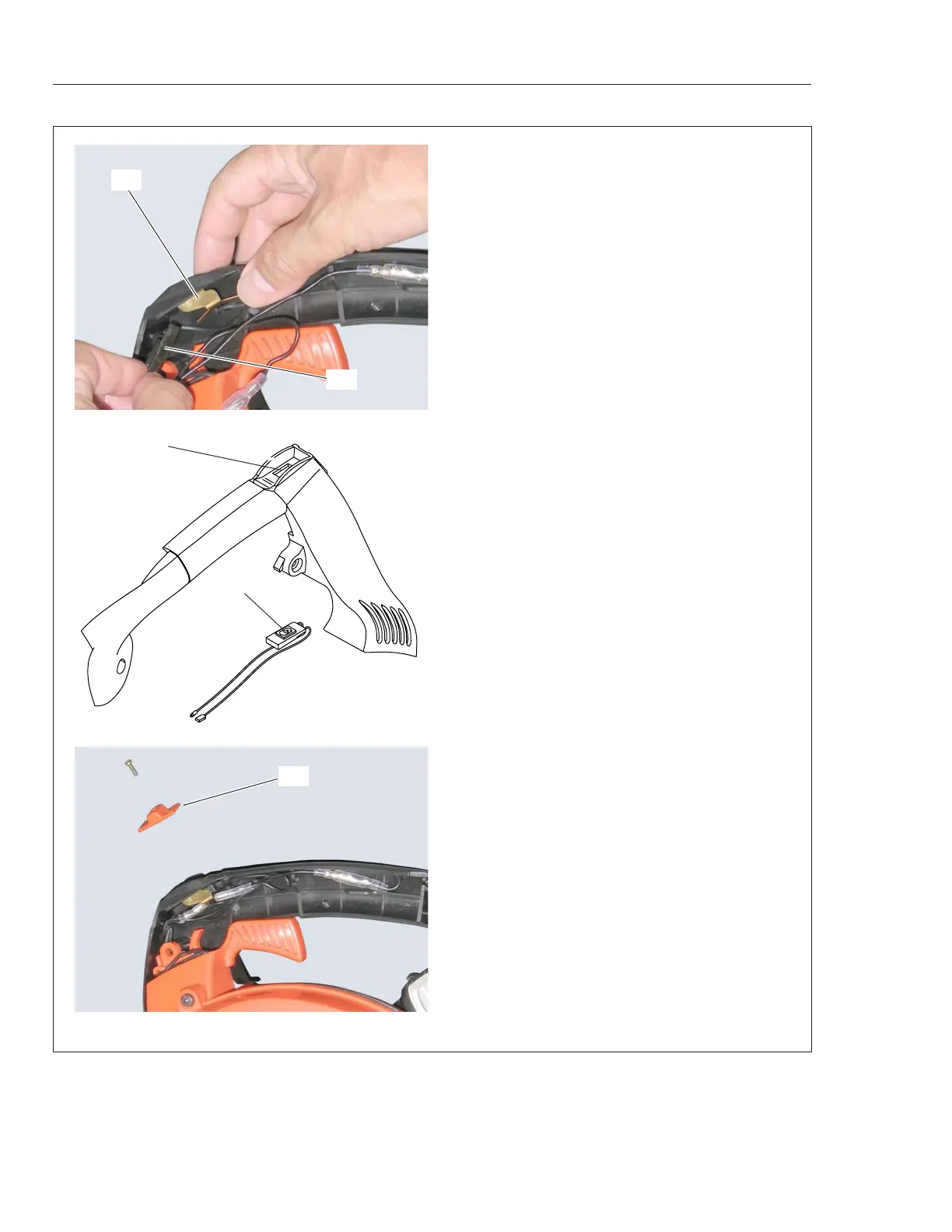

3-7 Replacing ignition switch (continued)
5. Insert lead terminal (C) in the hole of handle.
6. Slot new ignition switch (E) into lead terminal as
shown.
7. Connect all couplers and lead terminal. Route
leads around ribs and in grooves in handle (refer to
“4-2 Reassembling handle and throttole control”).
8. Make sure top of ignition switch (E) is correctly
engaging the hole (F) of handle.
9. Install ignition switch knob (A) and handle lid.
(E)
(F)
(C)
(E)
(A)
