ASSEMBLY
WARNING DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

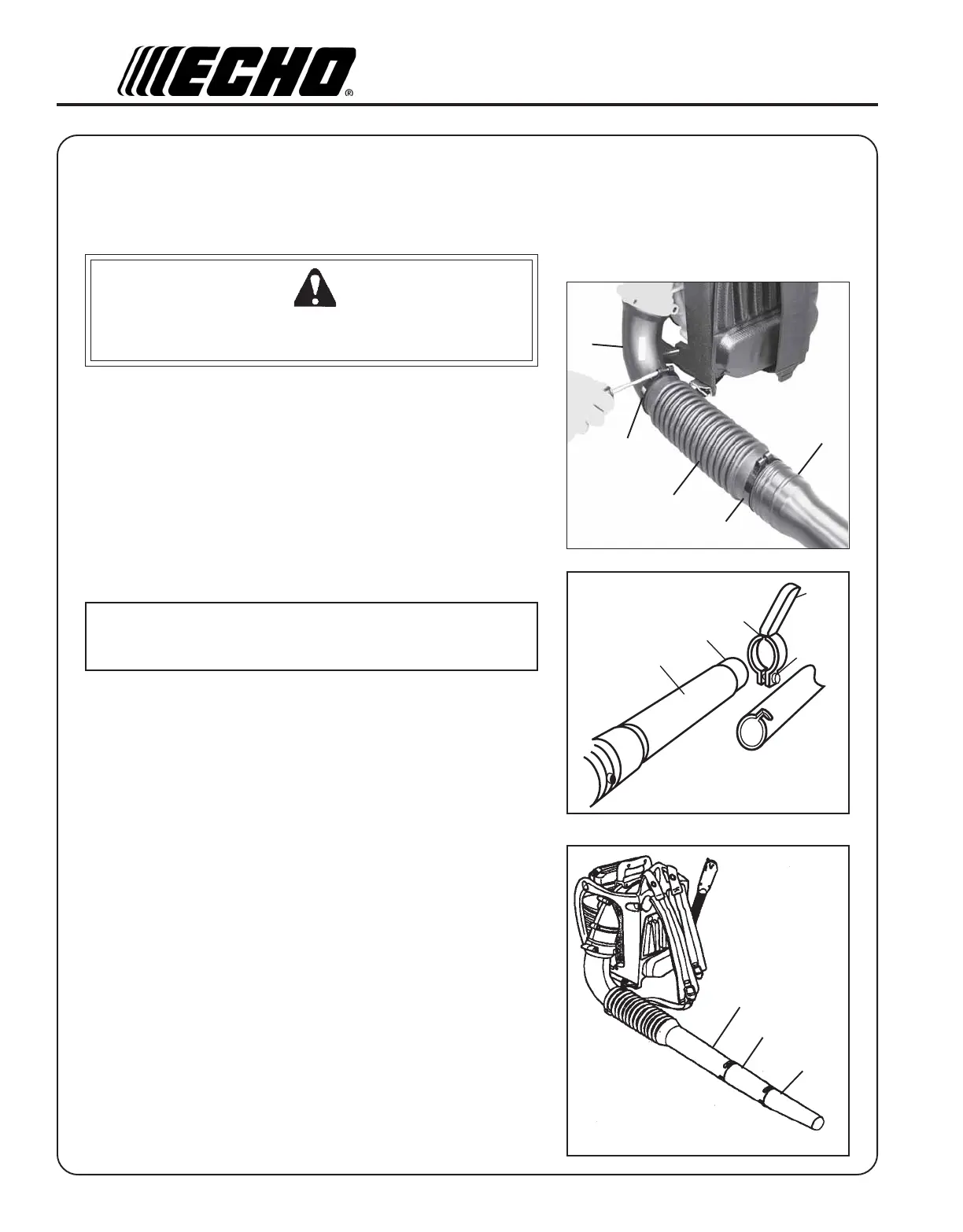

INSTALL BLOWER PIPES / STICK HANDLE
1. Assemble straight pipe with swivel (A) into flexible pipe (B).
2. Assemble flexible pipe (B) to elbow (D) on blower.
3. Assemble clamps (C) onto both ends of flexible pipe (B) and
tighten.
NOTE
A light lubricant may be used to ease assembly of flexible pipe to
blower elbow.
4. Loosen wing nut (E) completely and expand stick handle clamp
(F).
5. Align notches (G) in handle clamp with pipe pegs (H). Stick handle
should be angled away from operator.
6. Slide stick handle onto swivel pipe (A).
7. Position stick handle for comfortable operation and tighten wing
nut (E).
8. Assemble straight pipe (J) to pipe with swivel (A), turning straight
pipe counter-clockwise to lock in place.
9. Assemble straight pipe (K) to straight pipe (J) turning straight
pipe (K) counter-clockwise to lock in place.
A
H
G
F
E
A
C
B
C
D
J
K
A
