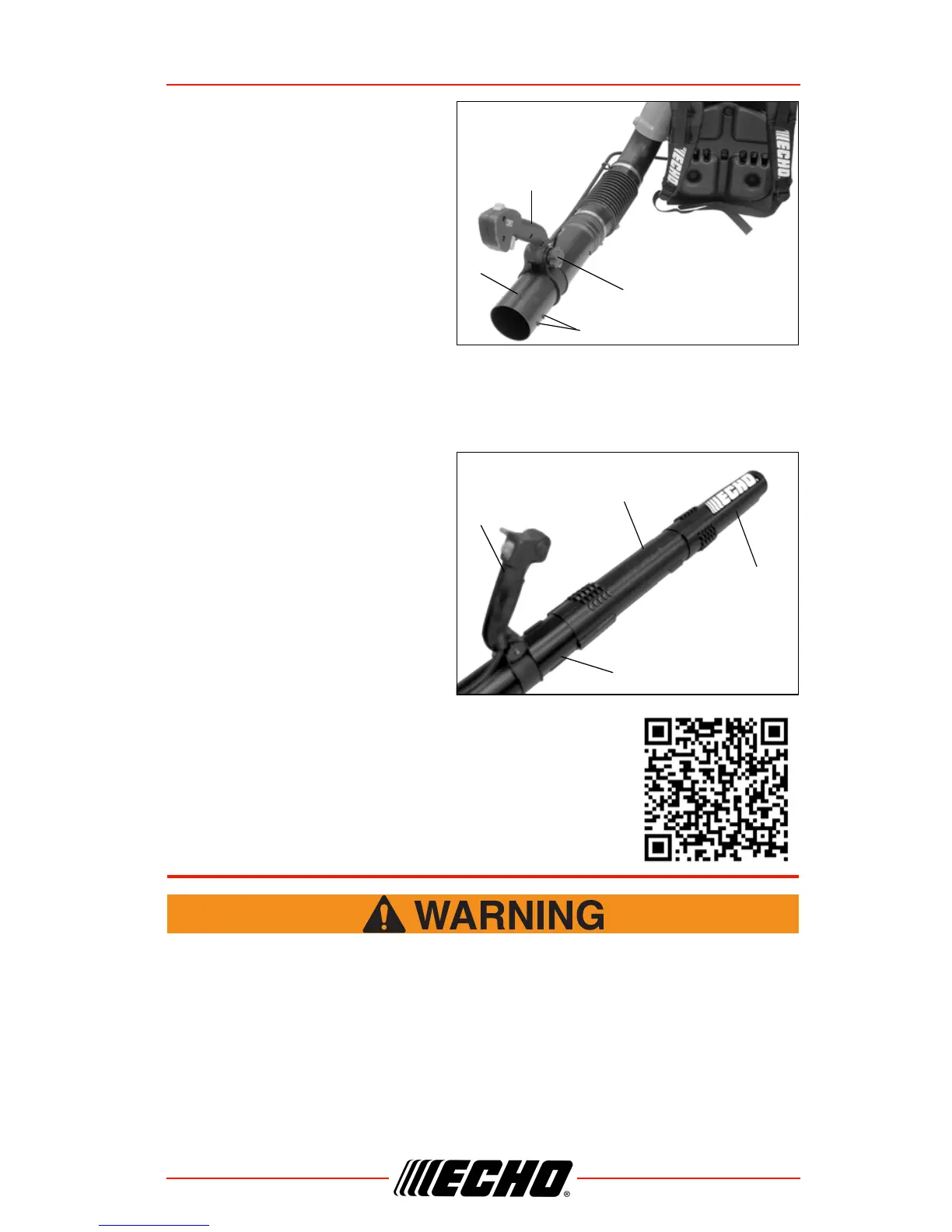

PB-755S H/T OPERATION
Note: Hang handle freely from
blower to assure throttle
cable is not twisted
before installing handle
(E).
3. Position throttle cable along
the outside of elbow. Loosen
knob (H) on handle (E). Align
notches in handle with tabs
(F) and install onto swivel pipe
(C) past long ridges in pipe.
4. Assemble swivel pipe into
flexible pipe and tighten clamp
(A).
5. Clip throttle cable into throttle cable guide loop.
6. Move handle (E) to desired position. Tighten knob (H) hand tight.
7. Assemble straight pipe (K)
onto swivel pipe, until you feel
light resistance. Do not force
connection. Hold swivel pipe
and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not
force connection.
8. Assemble straight pipe with
decal (J) to straight pipe as in
step 7.
Note:
Blower use will eventually loosen pipe
connections. Exclusive positive locking
system allows pipes to be tightened. If
loosening occurs, remove two straight pipes
and install according to instructions 7 & 8
.
OPERATION
Moving parts can amputate fingers or cause severe injuries. Keep
hands, clothing and loose objects away from all openings. Always
stop engine, disconnect spark plug, and make sure all moving
parts have come to a complete stop before removing obstructions,
clearing debris, or servicing unit. Blower housing may contain
shredder blades and other sharp edges that can cause serious
injuries if touched, even if engine is off and blades are not moving.
Wear gloves to protect hands from sharp edges and hot surfaces.
