Echo PB-770 H

PB-770 H/T ASSEMBLY
X7531125807 19
© 01/2020 ECHO Incorporated
ASSEMBLY
PB-770 H
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.

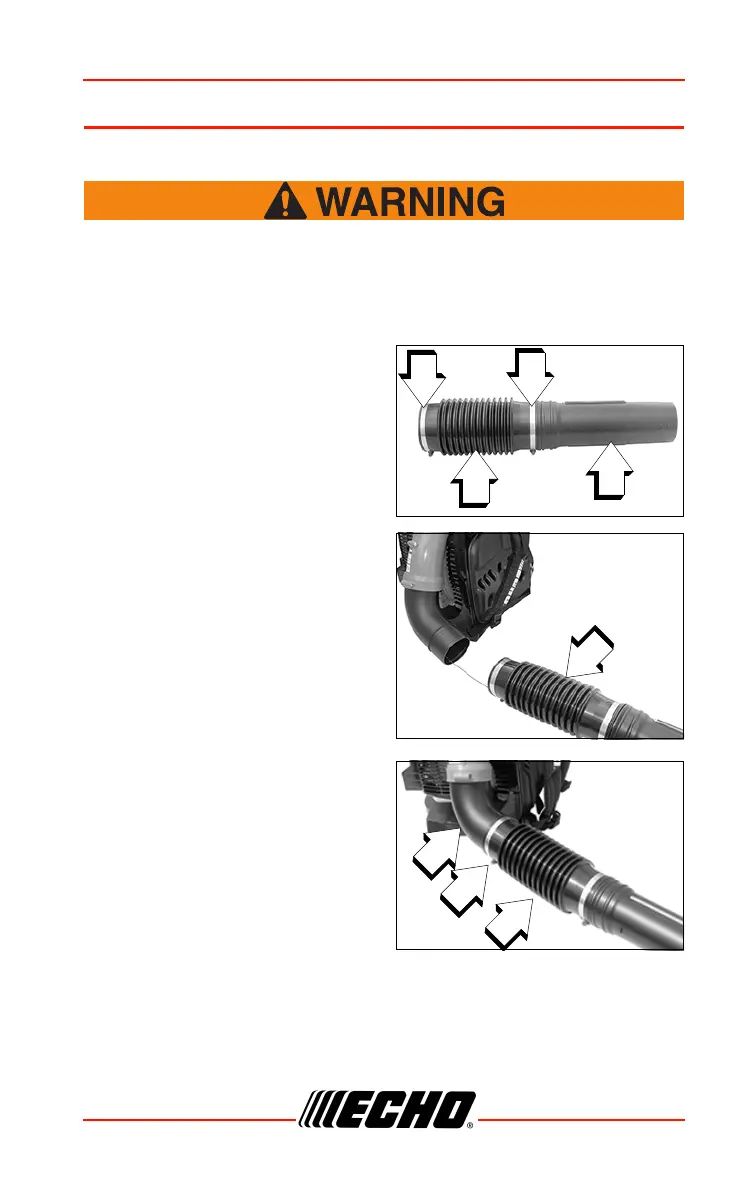

Install Blower Pipes/Stick Handle
1. Assemble clamps (A) onto both
ends of flexible pipe (B).
2. Assemble swivel pipe (C) into
flexible pipe (B) and tighten
clamp (A).
3. Insert anti-static wire through
flexible pipe (B).
4. Assemble flexible pipe (B) to
elbow (D) on blower and tighten
clamp (A).
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
A
A
B
C
B
A
B
D
