PB-770 H/T ASSEMBLY
X7531125807 21
© 01/2020 ECHO Incorporated

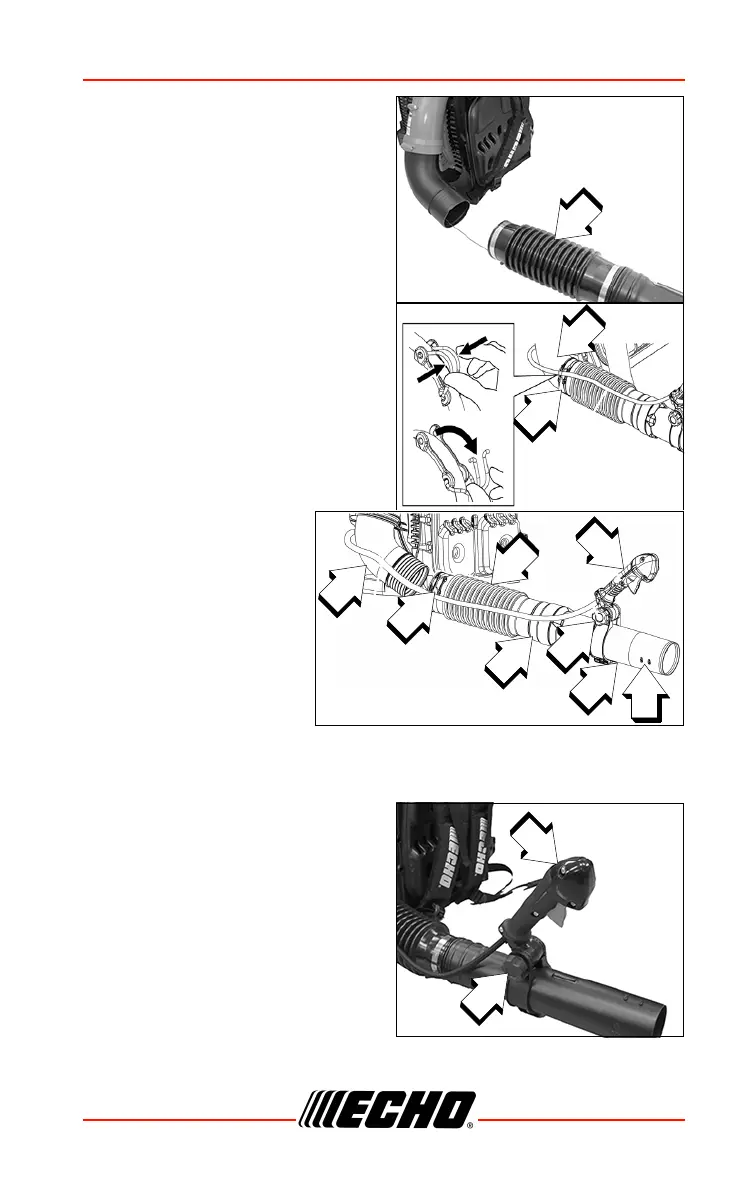

2. Insert anti-static wire through
flexible pipe.
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
3. Assemble flexible pipe to elbow
(D) on blower. Position clamp
with cable guide loop (G) on
outside of flexible pipe and
tighten clamp.
Note: Hang handle freely from
blower to assure throttle
cable is not twisted before
installing handle (E).
4. Position throttle cable
along the outside of
elbow. Loosen knob
(H) on handle (E).
Align notches in
handle with tabs (F)
and install onto swivel
pipe (C) past long
ridges in pipe.
5. Insert anti-static wire
through swivel pipe
6. Assemble swivel pipe into flexible pipe and tighten clamp (A).
7. Clip throttle cable into throttle cable guide loop (G).
8. Move handle (E) to desired
position. Tighten knob (H) hand
tight.
B
D
G
D
G
B
H
C
F
E
A
E
H
