POWER PRUNER
TM
OPERATOR'S MANUAL
11
B
E
D
A

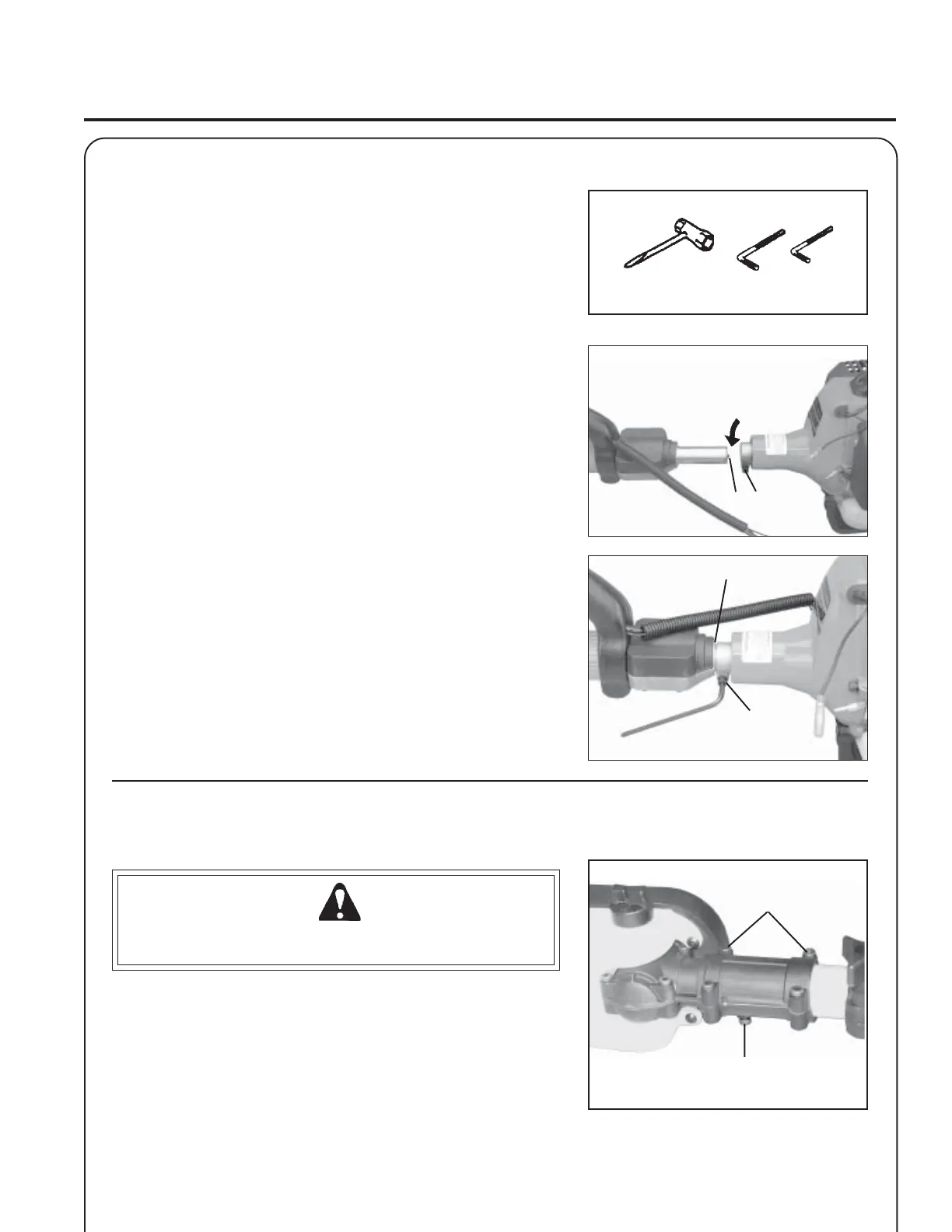

ASSEMBLY
Tools Required: 10x19mm (13/32x3/4in) T-wrench, 3 & 4 mm
Hex Wrench
Parts Required: Power Head, Drive Shaft Assembly,
Cutting Attachment
DRIVE SHAFT / POWER HEAD
1. Loosen bolt (A).
2. Match square socket in engine shaft with square power transmis-
sion shaft (B) and slide together until engine rests against the
machine surface of lower drive shaft coupler (C).
3. Rotate lower drive shaft to align engine and rear handle assembly in
an upright position.
4. Tighten bolt (A) securely so engine will not rotate on lower drive
shaft.
CUTTING ATTACHMENT TO DRIVE SHAFT INSTALLATION
WARNING DANGER
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.
1. Loosen the four (4) screws (D) and locator screw (E) on cutting
attachment.
