Page #12 background imageLoading...
Page #12 background image
12
E
D
F
G
H
G
H
I
J

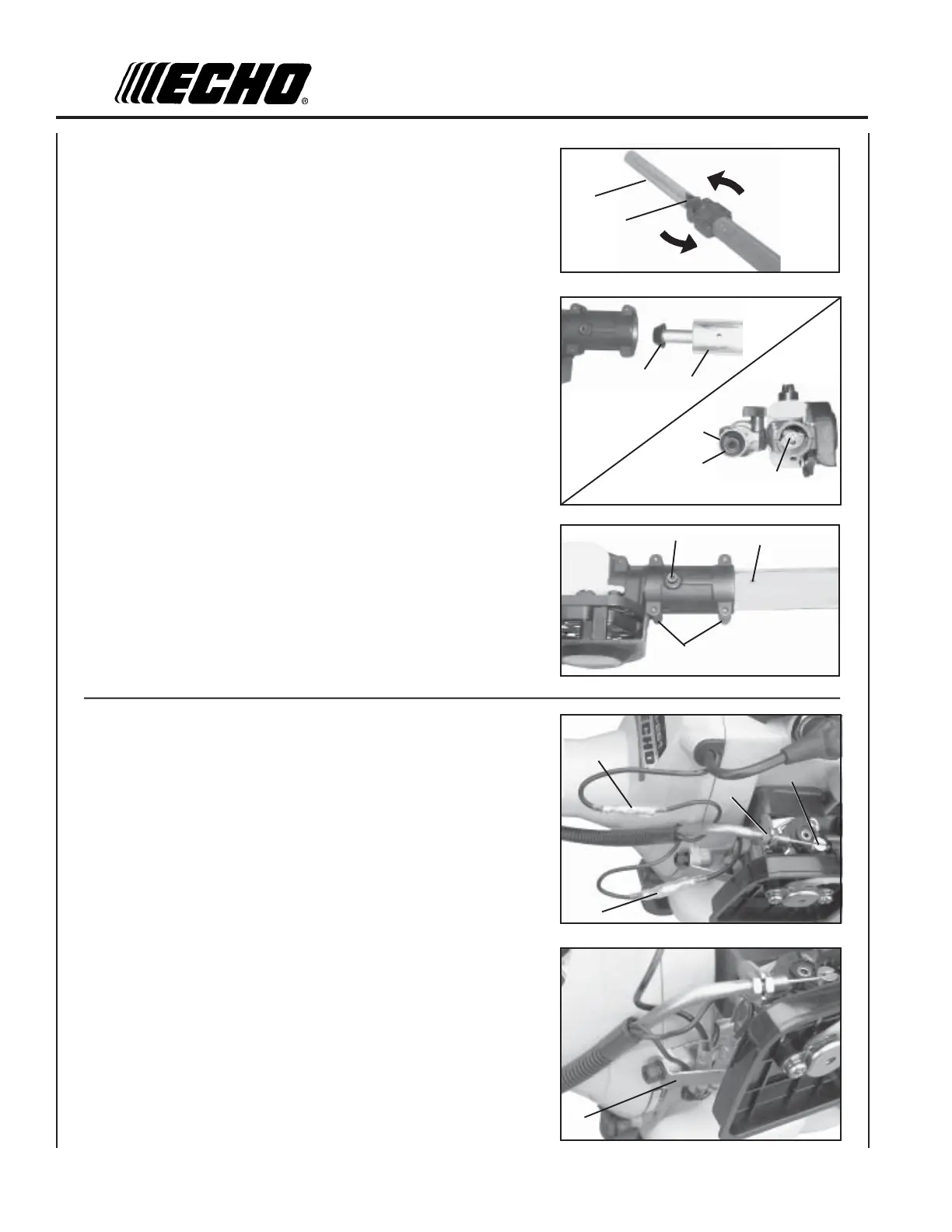

2. Loosen center clamp knob (F) turning counter clockwise.
3. Pull upper tube (G) out of fiberglass lower tube 127-152 mm (5-6 in.),
then slide (G) back into fiberglass lower tube exposing inner drive
shaft (H). Align and join star shaped drive end of inner drive shaft
(H) with cutting attachment shaft (I).
4. Align ridges on upper tube (G) with seams in cutting attachment.
5. Slide together aligning locator screw (E) in cutting attachment with
locating hole (J) in upper tube.
6. Tighten locator screw (E). Tighten four (4) cutting attachment
screws (D).
7. Extend upper tube to desired length. Tighten center clamp knob (F)
turning clockwise.
THROTTLE LINKAGE AND IGNITION LEADS
1. Close choke and remove air filter and cover.
2. Place inner cable in slot of carburetor swivel (B).
3. Loosen nut (A) and place threaded end of throttle linkage in
bracket slot. Finger tighten nut (A).
4. Check throttle for freedom of movement and that wide open throttle
/ low idle extremes are adjusted properly. If adjustment cannot be
achieved with adjusting nuts, consult with your Echo Dealer for
correct adjustment procedure.
5. Tighten nut (A). Connect 2 ignition leads from throttle cable tubing
to 2 ignition leads (C) and (D) on engine.
6. Bundle and secure ignition leads against engine housing with clip
(E).
7. Install air filter and cover.
C
A
B
D
E
G
