17
DPAS-2100
99922205734
© 08/2021 ECHO Incorporated

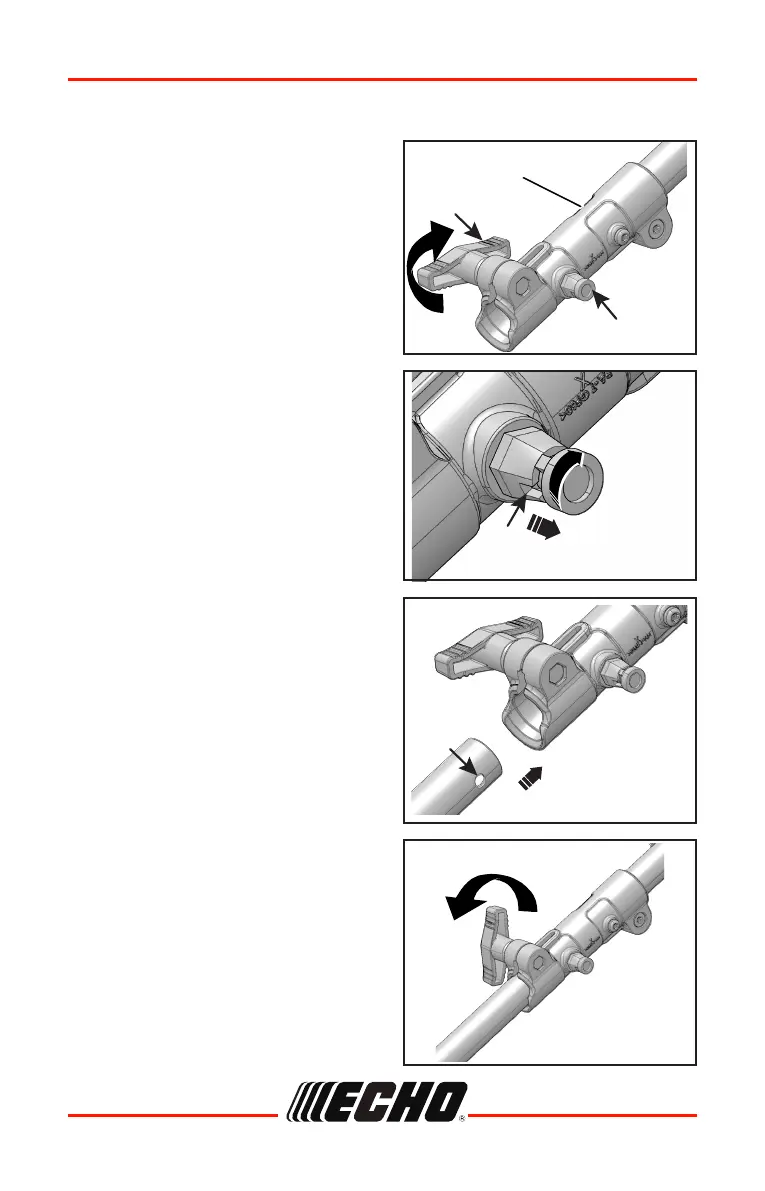

Asemble the Shaft
ASSEMBLY
1. Loosen the clamping knob (A) on
the coupler (7).
2. Pull and turn the tooth of locator pin
(B) away from the slot (C).
3. Align the positioning hole (D) on the
lower shaft with the locator pin (B)
and slide the two shafts together.
Make sure the inner lower drive
shaft engages the square upper
drive shaft socket.
4. Turn locator pin (B) until the tooth
aligns with slot (C). Turn the lower
shaft until the locator pin (B) locks
into the positioning hole. Locater
pin (B) should snap ush in coupler.
Full engagement will prevent further
shaft rotation.
5. Tighten the clamping knob (A).
A
B
C
D
7
