Installation of shield

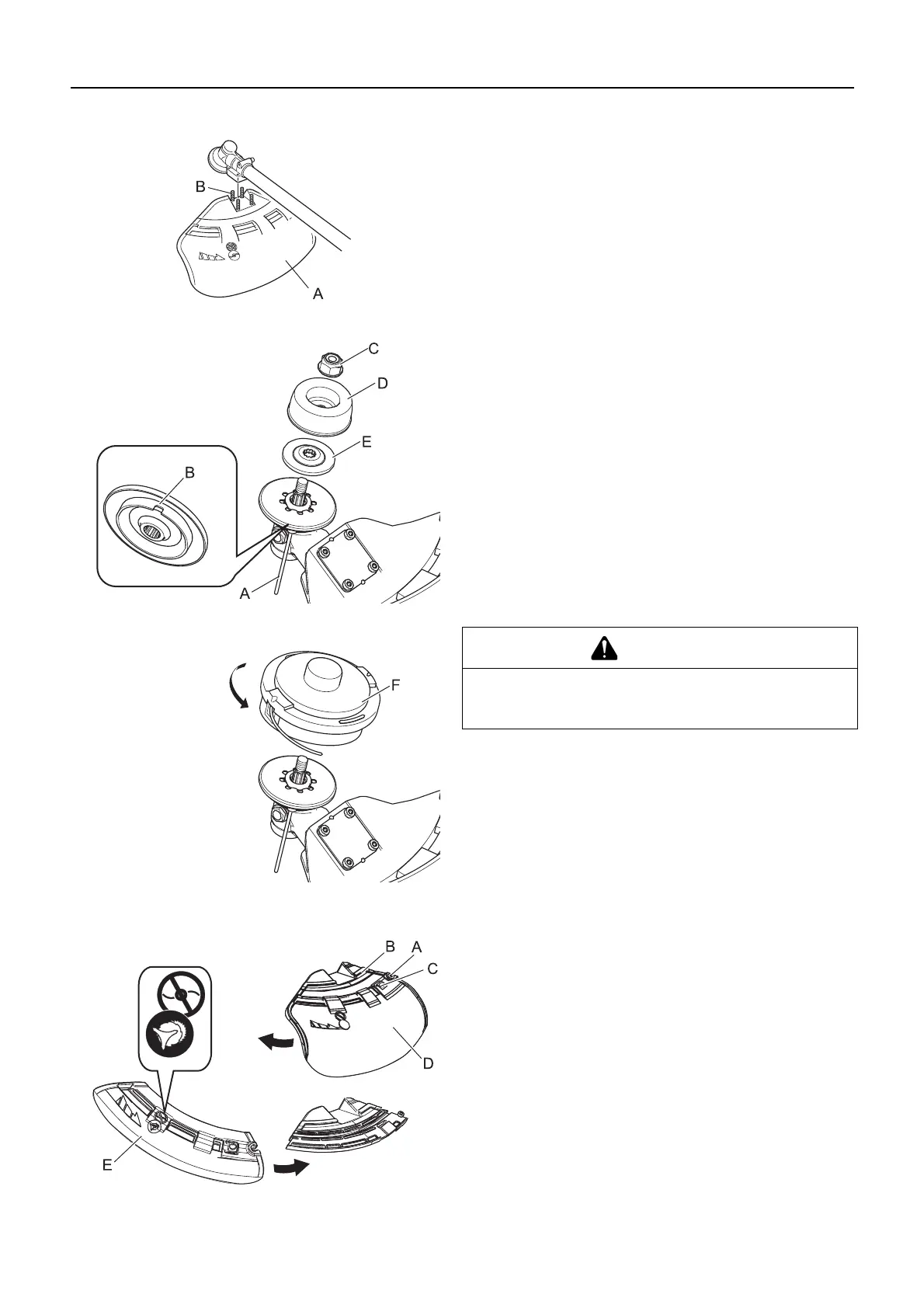

1. Fit shield (A) to mounting portion of angle transmission and
tighten 4 bolts (B).
Installing nylon line cutting head
1. Insert locking tool (A) into a hole located on the right side of
angle transmission while forcing retainer spring to the left
side.
2. Insert locking tool further into blade retainer fixing slot (B) to
fix output shaft.
3. Using the socket wrench, remove the nut (C), cup (D), and
lower blade retainer (E).
Nut, cup, and lower blade retainer are not used with a nylon
line cutting head.
4. Thread nylon line cutting head (F) onto shaft (anticlockwise)
until it is tight.
5. Remove locking tool.
With metal blade
Method to change shield
There are two types of shields: namely the one used exclu-
sively for nylon line cutting head and the other one used exclu-
sively for metal blade. When metal blade is used, use the
shield for metal blade.
1. Fully loosen the bolt (A) on the right side of the bracket (B)
to slide the shield. The bolt itself cannot be removed from the
bracket.
2. Pushing the button (C), slide the shield (D) to the left and re-
move it.
3. Put shield of other type (E) into groove and slide it to the right
until it stops. Be sure to tighten the bolt.
CAUTION
Fix output shaft securely using locking tool in order to
prevent it form rotating when nylon cutting head is
mounted.
