16
NOTE
For SRM-2610 handle assembly refer to "U-Handle Installation
page 18 instructions 1, 10, 12 - 16.
ACCESSORY INSTALLATION
Blade Conversion Kit P/N 99944200415, U-Handle / Blade Conversion Kit P/N 99944200521,
Muffler Bracket Kit P/N 10099057730.
NOTE
Refer to Operation with Blades page 20 for correct Accessory / Blade equipment requirements.
WARNING DANGER
You must install a U-Handle/Blade Conversion Kit before operating this unit using metal blades, otherwise serious
injury may result.

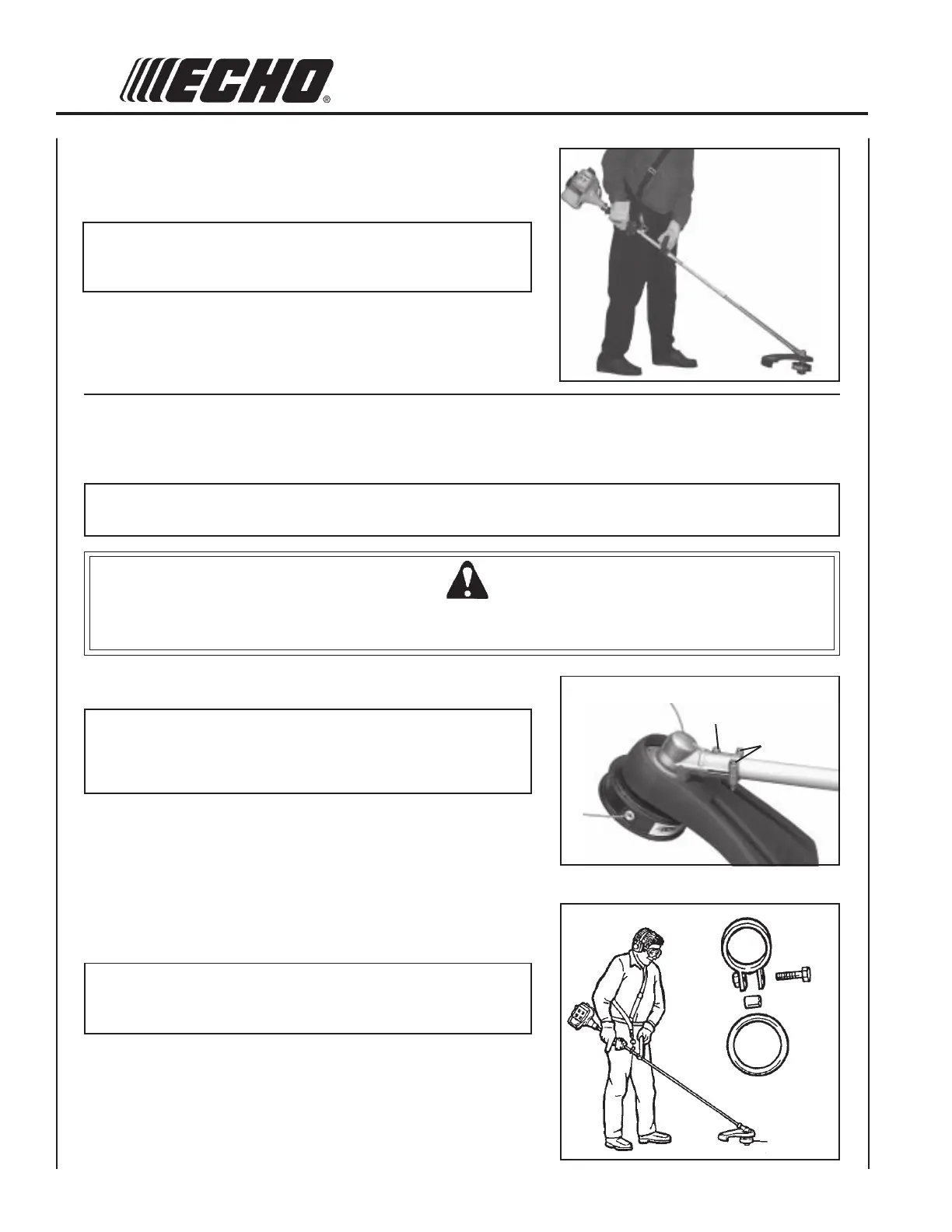

HARNESS CLAMP INSTALLATION
NOTE
SRM-2601 requires installation of Harness Clamp included in the
Blade Conversion Kit or U-Handle / Blade Conversion Kit. If your
unit does not have a clamp, follow these directions.
Tools Required: Screwdriver, 8mm x 10mm Open End Wrench.
1. Remove shield and gear housing as an assembly.
a. Loosen two (2) screws (A) that clamp the gear housing to the
drive shaft housing.
b. Remove locating screw (B) found at the top of the gear
housing. Pull shield and gear housing assembly from the drive
shaft assembly.
IMPORTANT
Prevent steel drive shaft from sliding from drive shaft housing. If
shaft does slide free, clean dirt from shaft and re-assemble.
2. Remove front handle.
a. Remove four (4) screws and nuts and handle support from
handle.
b. Remove handle.
3. Install clamp.
A
B
To Next Page
